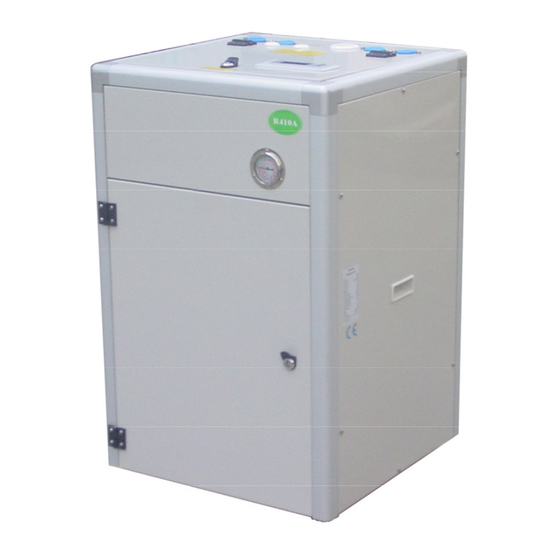

GEOTHERMAL HEAT PUMP
Installation ,Operation &Maintenance Manual VR2002
V.201212
The Installation of this unit is to adhere to all Local
Building Codes and Standards

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VR2002 and is the answer not in the manual?

Questions and answers

Related Manuals for HISEER VR2002

Summary of Contents for HISEER VR2002

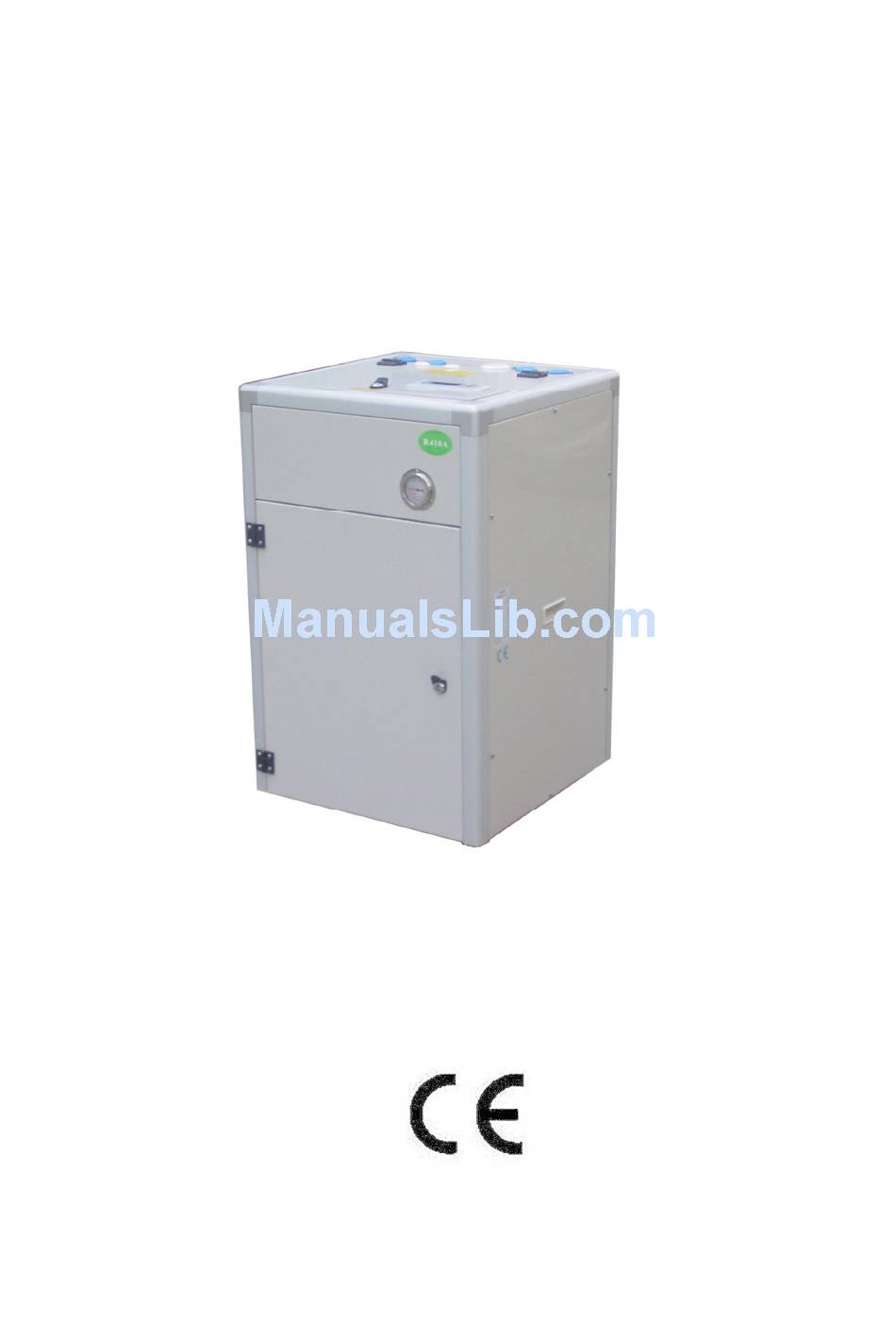

  • Page 1 GEOTHERMAL HEAT PUMP Installation ,Operation &Maintenance Manual VR2002 V.201212 The Installation of this unit is to adhere to all Local Building Codes and Standards...

  • Page 2: Table Of Contents

    Index Pre-Installation ......................2 Installation Location and Positioning ................ 4 Buffer Tank ........................5 System Overview Vertical Ground Loop System ............6 System Overview Horizontal Ground Loop System ..........7 System Overview Ground Water with Intermediate Heat Exchanger System ..8 System Overview Floor Heating Only ................

  • Page 3: Pre-Installation

    Pre-Installation Pre-Installation Important Site Instructions The installation, commissioning, inspection, maintenance and repairs must only be carried out by a qualified person. All electrical wiring must be completed by a licensed electrical contractor in accordance with the appropriate standards. The drilling work requires a permit from your local council. The heating system and heat source must be properly designed and dimensioned to ensure an efficient operation.
  • Page 4 Pre-Installation Note: ensure the correct refrigerant gas is used to recharge the unit as an incorrect gas can cause damage beyond repair to the compressor. Do not use oxygen to purge lines or to pressurize a unit for any purpose. Oxygen gas reacts violently with oil, grease and other common substances.

  • Page 5: Installation Location And Positioning

    Installation Location and Positioning Installation Location and Positioning The unit must be installed in a protected area that is free from rain and water penetration. The unit must be installed on a solid level surface, preferably on a concrete pad not connected to the main house slab foundation.

  • Page 6: Buffer Tank

    Buffer Tank Buffer Tank A buffer tank is recommended to ensure a trouble free heat pump operation. A suitable buffer tank can avoid excessive heat pump cycling (switching on and off). The buffer tank provides a hydraulic separation from the volume flow in the heat pump and heating circuits.

  • Page 7: System Overview Vertical Ground Loop System

    Systems Overview (Outdoor side) System Overview Vertical Ground Loop System Name Description Location Name Description Location Outdoor side water Outdoor temperature External Internal pump sensor Safety valve External Particle filter External Brine tank/expansion External tank...

  • Page 8: System Overview Horizontal Ground Loop System

    Systems Overview (Outdoor side) System Overview Horizontal Ground Loop System Name Description Location Name Description Location Outdoor side water Outdoor temperature External Internal pump sensor Safety valve External Particle filter External Brine tank/expansion External tank...

  • Page 9: System Overview Ground Water With Intermediate Heat Exchanger System

    Systems Overview (Outdoor side) System Overview Ground Water with Intermediate Heat Exchanger System Name Description Location Name Description Location Outdoor temperature Outdoor side water pump External Internal sensor Ground water pump External Particle filter External Brine tank/expansion External Safety valve External tank Water flow switch...

  • Page 10: System Overview Floor Heating Only

    Systems Overview (Indoor side) System Overview Floor Heating Only Name Description Location Name Description Location Indoor side water Indoor side inlet water External Internal pump temperature sensor Indoor side outlet water Expansion tank External Internal temperature sensor Outdoor side outlet water Air vent valve External Internal...
  • Page 11 Systems Overview (Indoor side) 1. Heating Mode Working Principle: a. When SF04=0, When the RT drops below ST02-ST04, the compressor will start to heat until RT ≥ ST02+ST04. Then compressor will stop. The Compressor will start again when RT ≤ ST02-ST04.

  • Page 12: System Overview Heating ,Cooling & Hot Water

    Systems Overview (Indoor side) System Overview Heating ,Cooling & Hot Water (External water pump, three way valve and electric heater) Name Description Location Name Description Location Indoor side inlet water Indoor side water pump External Internal temperature sensor Indoor side outlet water Electric heater/boiler External Internal...
  • Page 13 Systems Overview (Indoor side) System Overview Heating ,Cooling & Hot Water (External water pump, three way valve and electric heater) 1. Heating Mode Working Principle: On heating mode, Three way valve (VXV) will open AB-A. 1.) When SF04=0: a. When the RT drops below ST02-ST04, the compressor will start to heat until RT≥ST02+ST04.
  • Page 14 Systems Overview (Indoor side) System Overview Floor Heating with Hot Water (Internal water pump, electric heater and three way valve) Name Description Location Name Description Location Indoor side inlet water Indoor side water pump Internal(Option) Internal temperature sensor Indoor side outlet water Expansion tank External Internal...
  • Page 15 Systems Overview (Indoor side) System Overview Floor Heating with Hot Water (Internal water pump ,electric heater and three way valve) 1. Heating Mode Working Principle: On heating mode, Three way valve (VXV) will open AB-A. 1.) When SF04=0: a. When the RT drops below ST02-ST04, the compressor will start to heat until RT≥ST02+ST04.

  • Page 16: System Overview Multiple Units In Series Cascade Connection

    Systems Overview (Indoor side) System Overview Multiple Units in Series Cascade Connection Name Description Location Name Description Location Internal Indoor side inlet water Indoor side water pump Internal (option) temperature sensor Indoor side outlet water Expansion tank External Internal temperature sensor Safety valve External Hot water temperature sensor...
  • Page 17 Systems Overview (Indoor side) System Overview Multiple Units in Series Cascade Connection (1) Heating working principle To set two or more units in parallel operation, set the primary unit to the required parameters, other units could have 2~5°C difference of ST01,ST02 and ST05 to allow for energy stage control.

  • Page 18: Installation

    Installation Installation Installation must be carried out in accordance with current Standards and Building Codes．The heat pump does not come fitted with shutoff valves and these must be fitted outside of the heat pump to facilitate future service． Important The pipe work must be flushed before the heat pump is connected so that any contaminant does not damage the unit’s internal component parts．...
  • Page 19 Installation 9. Where there is more than one ground loop these must be connected in parallel with a means of adjusting the flow. For surface soil heat, the pipe should be buried at a depth of about 1.8 meters and the distance between the hoses should be at least 1 meter.

  • Page 20: Electrical Connection

    Electrical Connection Electrical Connection G0 PE D1 M D4 D5 X1 GND +24V SIEMENS RWR470.10 RS485 RJ45 Q13 Q14 Q44 Q54 Q64 Q23 Q74 Q84 Y1 G0 Y2 B- GND Terminal Assigments Terminal Assignments Power supply AC/DC 24 V Supply 1 (AC 24 V …230 V) Power supply ground Compressor 1 Saftey ground...

  • Page 21: Power Connection

    Electrical Connection Power Connection: Before connecting the power supply please confirm the unit suits the power supply as unit nameplate. Breaker protection must be installed according to the max value stated in the nameplate attached to the unit inside of front panel. The equipment must be installed via an isolator switch with a minimum breaking gap of 3 mm．...
  • Page 22 Electrical Connection Single phase connection port on connection terminal Triple phase connection port on connection terminal: L2 L3...
  • Page 23 Electrical Connection Mains Connection Diagram Single phase: Triple phase: Phase relay: There is a phase relay for three phase units. After powering the unit up for the first time check the indication lights on the device. “Normal” green light on means that phase connection is correct “PR”...
  • Page 24 Electrical Connection Outdoor Ambient Temperature Sensor: The outdoor temperature sensor (OT) is a standard part placed inside the electric box. One terminal is connected with the PC board X3 and GND, its probe must be installed outdoors. It should be mounted on a wall that has the mean outdoor temperature which can accurately measure the outdoor temperature and not to be exposed the rain, sun and snow.
  • Page 25 Electrical Connection Indoor Side Inlet Water Temperature Sensor: The indoor side inlet water sensor (RT) from factory is placed in the submerged pocket of the plate heat exchanger. If a buffer tank is installed, the RT sensor can be moved to the buffer tank temperature sensor inlet pocket and EV01 parameter value can be set to “1”.
  • Page 26 Electrical Connection Connection Port on Connection Terminal: Outdoor Side Water Pump: Outdoor side water pump is connected to terminal port (1-2). If the water pump current is over 2A, an A/C contactor must be used to activate the water pump.

  • Page 27: Electric Heater

    Electrical Connection Indoor Side Water Pump: Indoor side water pump is connected to terminal port (3-4). If the water pump current is over 2A, an A/C contactor must be used to activate the water pump. Electric Heater: Electric heater is connected to terminal port (10-11). An A/C contactor must be used to activate the electric heater.
  • Page 28 Electrical Connection Hot Water Pump or Three Way Valve: If the indoor side water pump is for both heating and domestic hot water circulation, set SF10=0, connect a 3 way valve to terminal (7-8-9) If another pump is used for the domestic hot water circuit, set SF10=1, connect the hot water pump to terminal (8-9).
  • Page 29 Electrical Connection A/C Switch: The unit’s A/C ON/OFF cannot be operated by any button on the controller. When the A/C switch B1-B2 is bridged, the unit’s heating /cooling function is activated. An external signal like a timer or thermostat, etc could be connected to B1-B2 to activate or deactivate the unit’s heating /cooling function.
  • Page 30 Electrical Connection Hot Water Switch: The unit’s hot water ON/OFF cannot be operated by any button on the controller. When hot water switch A1-A2 is bridged, the unit’s hot water function is activated. An external signal like a timer or thermostat, etc could be connected to A1-A2 to activate or deactivate the unit’s hot water function.
  • Page 31 Electrical Connection Alarm Unit’s Output: When any alarm occurs Terminal port (5-6) will have a 230V output. It could be connected to an alarm unit (such as indication lighter, alarm bell etc).

  • Page 32: Controller

    Controller Controller Display (Display window & button area) Display Area ： In normal working mode: display 1 shows a parameter code, display 2 shows this code temperature value. In parameter setting mode: display 1 shows parameter code, display 2 shows this parameter value.
  • Page 33 Controller Symbol explanation 1、Cooling mode 2、Heating mode 3、Power 4、Hot water mode 5、Indoor side water pump 6、Compressor energy grade 7、Compressor 8、Water flow switch (light on represents the water flow switch alarm) 9、Outdoor side water pump...
  • Page 34 Controller Selection of System Modes Display Procedures In the stop mode (A/C switch and hot water switch are OFF), press the <Plus> button for 2 seconds, and release it to activate the selection of system mode. The current system mode will start flashing. Press <Plus>...
  • Page 35 Controller Changing Set Points Display Procedures In stop mode, press <Enter> for 2 seconds and release it to activate the Menu mode. When the icon is blinking, press <Plus> or <Minus> to navigate to the menu, and then press <Enter> to proceed.
  • Page 36 Controller Adjusting Parameter Values Display Procedures After inputting password and enter into the parameter setting mode. Press <Plus> or <Minus> to select the parameter code, and press <Enter> to confirm. The default value of the parameter will start flashing, allowing you to make a change. Press <Plus>...
  • Page 37 Controller Heating Compensation Curve Setting The control temperature for the heating mode has two methods: fixed and changeable temperatures. 1. The fixed temperature is a fixed value and is directly set by the end user from the set area. 2. The changeable temperature is determined by values of ST05, ST06 and the actual outdoor temperature measured by the OT sensor probe.
  • Page 38 Controller Three example curve when ST05=18, 20 and 22.
  • Page 39 Controller Outdoor Side Anti-Freezing Setting Ground water with immediate heat exchanger system AR11 (outdoor side low outlet water temperature protection), factory default setting is 5 ℃ AR08 (low evaporator temperature protection), factory default setting is -2 . ℃ Ground loop system If brine is adopted as an outdoor side heating medium, AR11 needs to be changed according to brine freezing point.

  • Page 40: Commissioning And Adjusting

    Commissioning and Adjusting Commissioning and Adjusting 1. Switch Off /Disconnect the Mains Fuse 2. Check Refrigerant Circuit for Leaks. a. Check heat pump gas pressure gauge reading for any leak. b. Open the front door with the key. Check the heat pump interior with a refrigerant leak detector or leak detection spray for refrigerant leaks.
  • Page 41 Commissioning and Adjusting 8. Checking the Tightness of Electrical Connections 9. Checking the Input Terminals and Contactors a. Check the voltage and cycle at the mains connection, at the inlet terminals and at the contactors. Interchange phases L1 and L3, if the phase sequence protector red light illuminates.
  • Page 42 Commissioning and Adjusting 15. Checking the Refrigerant Circuit a. Observe the sight glass in refrigerant circuit. Bubbles >5 mm should not be visible, when heating flow has stabilized at 35°C. If large bubbles are visible, search and repair the leak in respective stage and refill with refrigerant. b.

  • Page 43: Warning And Alarm

    Warning and Alarm Warning and alarm Warning Management When a warning is detected, the corresponding warning code will be displayed on the LCD. The warning icon will flash simultaneously. Only the latest 10 warnings will be kept under the menu. Upon power failure of the controller, the warning logs will be erased and recounted Codes...
  • Page 44 Warning and Alarm Alarm Management The alarms in RWR470.10 are divided into two groups: auto reset alarms and manual reset alarms. 1. Auto reset alarm, the user is not required to acknowledge and reset it. 2. The corresponding device will be automatically restarted once the alarm status disappears.
  • Page 45 Warning and Alarm Auto Reset Alarms The following are codes for auto reset alarms with their meanings. Codes Meaning AL01 Compressor low pressure (D2) AL02 Compressor high pressure (D3) Low indoor side outlet water temperature protection (when ST ≤ AR01 in any AL03 mode) Low outdoor side outlet water temperature protection (when STo ≤...
  • Page 46 Warning and Alarm Viewing Alarm Logs MR01 and AR01 are respectively the latest information of the manual reset alarm and auto reset alarm. Display Procedures Press down the <Enter> for 2 seconds, and release it to activate the Menu mode. Press <Plus>...

  • Page 47: Trouble Shooting

    Trouble shooting Trouble Shooting Description Possible cause Check faulty or disconnected Check the mains supply phases fuse and active/replace fuse Power failure Mains fault, voltage notify your electricity supplier fluctuations wrong phase sequence check phase sequence protector Thermal relay has Check thermal relay and tripped active/re set thermal relay...

  • Page 48: Maintenance

    Maintenance Maintenance To prevent faults due to sediment in the heat exchangers, care must be taken to ensure that no impurities can enter either the heat source system or the heating system. In the event that operating malfunctions due to contamination occur nevertheless the system should be cleaned as described below.

  • Page 49: Dimension

    Dimension Dimension Aluminium frame cabinet (GHP07 to GHP20) outdoor indoor outdoor indoor outlet outlet inlet inlet outlet power cable outlet Sensor outlet...
  • Page 50 Dimension Aluminium frame cabinet (GHP26 GHP26B GHP30 GHP30B) outdoor indoor outdoor indoor outlet inlet inlet outlet Sensor outlet power cable outlet...

  • Page 51: Components

    Components Components Heating only units (from GHP07 to GHP20) 1. Compressor 11.S i g h t G l a s s e s 2. A d j u s t a b l e L o w P r e s s u r e S w i t c h 12.W a t e r P u m p ( O p t i o n a l ) 3.
  • Page 52 Components Heating only units (from GHP07 to GHP20) 1. Compressor 11.S i g h t G l a s s e s 2. A d j u s t a b l e L o w P r e s s u r e S w i t c h 12.W a t e r P u m p ( O p t i o n a l ) 3.
  • Page 53 Components Heating and cooling units (from GHP07B to GHP20B) 9. Low P r e s s u r e Switch 1. Compressor 10. S i g h t G l a s s e s 2. S e r v i c e C o n n e c t i o n , L o w P r e s s u r e 11.
  • Page 54 Components Heating and cooling units (from GHP07B to GHP20B) 9. Low P r e s s u r e Switch 1. Compressor 10. S i g h t G l a s s e s 2. S e r v i c e C o n n e c t i o n , L o w P r e s s u r e 11.
  • Page 55 Components Triple phase control board (GHP10, GHP10B, GHP13, GHP13B, GHP15, GHP15B, GHP20, GHP20B,GHP26, GHP26B ,GHP30, GHP30B) Siemens controller 1. Siemens controller 2. Connection terminal strip 3. A/C contactor 4. Thermal relay 5. Phase relay 6. Circuit breaker 7. Three way valve relay 8.
  • Page 56 Components Single phase control board (GHP07 ,GHP07B GHP09, GHP09B, GHP12, GHP12B) 5. Three way valve Relay 1. Siemens controller 1. Siemens controller 5 Three way valve relay 2. Connection terminal strip 6. Soft starter 3. A/C contactor 7. Transformer 4. Circuit breaker 8.

  • Page 57: Pressure Drop Curve

    Pressure drop curve Pressure Drop Curve GHP07 GHP07 GHP07 GHP07 GHP07B GHP07B GHP07B GHP07B m 3/h GHP9 GHP10 GHP9B GHP10B m3/h...
  • Page 58 Pressure Drop Curve Optional internal hot water pump curve GHP07 GHP09 GHP10 Wilo-star-RS 25/6 Maximum speed Medium speed Mini speed Flow(m3/H) GHP12 GHP13 GHP12B GHP13B m3/h...
  • Page 59 Pressure Drop Curve GHP15 GHP15B m3/h Optional internal hot water pump curve GHP12 GHP13 GHP15 Wilo -star -RS25/8 Maximum speed Medium speed Mini speed Flow (m3/H)
  • Page 60 Pressure Drop Curve GHP20 GHP20B m3/h GHP26B K P a GHP30B m 3 / h 1 . 0 2 . 0 3 . 0 4 . 0 5 . 0 6 . 0 7 . 0 8 . 0 9 . 0...

  • Page 61: Temperature And Sensor Resistance Table

    Temperature and sensor resistance table Temperature and sensor resistance table The sensors RT,ST,OT,HT,CT,ET are NTC10K.
  • Page 62 Temperature and sensor resistance table...
  • Page 63 Temperature and sensor resistance table...

  • Page 64: Technical Specifications

    Technical specifications Technical specifications Heating only units: Heat pump Type GHP07 GHP09 GHP12 GHP10 GHP13 GHP15 GHP20 Dimensions,weights,connection dimensions Dimensions HxWxD 960x600X600 Weight Refrigerant Type R410A Filling weight 1.35 1.60 1.70 1.60 1.70 1.90 2.15 Permissible operating pressure Pipe connector-hot side Inch G1”...
  • Page 65 Technical specifications Heating only units: Heat pump Type GHP26 GHP30 Dimensions,weights,connection dimensions Dimensions HxWxD 960x600X800 Weight Refrigerant Type R410A Filling weight 3.40 3.80 Permissible operating pressure Pipe connector-hot side Inch ” ” Pipe connector-cold side Inch ” ” Evaporator Type Brazed plate heat exchanger Condenser Type...
  • Page 66 Technical specifications Heating and Cooling units: Heat pump Type GHP07B GHP09B GHP12B GHP10B GHP13B GHP15B GHP20B Dimensions,weights,connection dimensions Dimensions HxWxD 960x600X600 Weight Refrigerant Type R410A Filling weight 1.35 Permissible operating pressure Pipe connector-hot side Inch G1” G1” ” G1” ” ”...
  • Page 67 Technical specifications Heating and Cooling units: Heat pump Type GHP26B GHP30B Dimensions,weights,connection dimensions Dimensions HxWxD 960x600X800 Weight Refrigerant Type R410A Filling weight Permissible operating pressure Pipe connector-hot side Inch ” ” Pipe connector-cold side Inch ” ” Evaporator Type Brazed plate heat exchanger Condenser Type Brazed plate heat exchanger...
