Summary of Contents for Starline EG

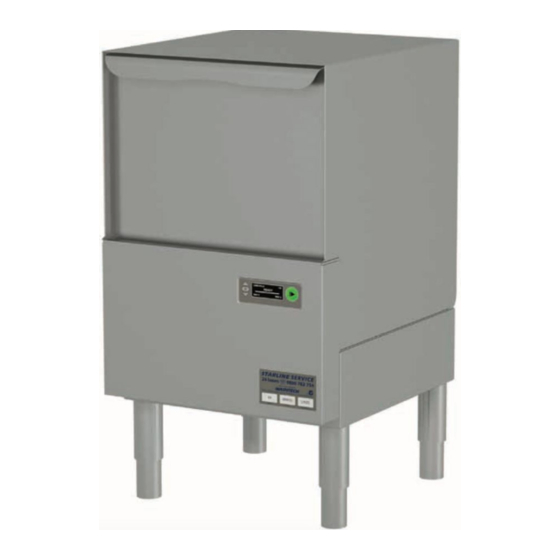

- Page 1 UNDERCOUNTER GLASSWASHER Operator Manual...
- Page 2 Foreword User documentation Please read this manual and keep it in a safe place for future reference. WARNING Before installation and commissioning, you must read the safety instructions and warnings carefully and all the warning labels attached to the equipment. IMPORTANT Failure to comply (even partially) with the instructions given in this manual will invalidate the product warranty and relieves the manufacturer of any responsibility.
-
Page 3: Safety Instructions
Safety Instructions WARNING Equipment contains dangerous voltages and can be hazardous if installed or operated incorrectly. Non-compliance with Warnings or failure to follow the instructions contained in this manual can result in loss of life, severe personal injury or serious damage to property. Installation ... -
Page 4: Installation
Installation WARNING Installer must be suitably qualified and ensure compliance with all local codes and standards including AS/NZS 3500.1. Failure to comply even partially with installation instructions may void the warranty. Positioning Unpack machine, check for damage and complete delivery. Install machine on sound waterproof self-draining floor and use adjustable feet to level machine. -
Page 6: Installation Checklist
Installation Checklist CHECK OK / NOTES Delivery Supplied complete no transit damage Position Level and stable on sound, waterproof, self draining floor Water Isolator valve fitted Accessible, all fittings sound, no leaks DCVs fitted (Washtech only) Correct direction Temperature 65 ± 5°C Flow rate Minimum 20 litres per minute Pressure... -
Page 7: Operating Instructions
Operating Instructions Start up Fit wash pump filter, drain upstand and scrap trays, and shut door. Turn wall power switch on and press machine Power Button for 1 second. Start/Stop button glows white and machine fills automatically. Machine starts heating when wash tank is full. Start/Stop button glows orange while heating. -
Page 8: Dishwashing Procedures
Dishwashing Procedures for best results Note: these are general instructions to assist in getting the best performance from Starline dishwashers – some comments and / or illustrations may not apply to every unit. Installation Read the Operator Manual. Correct installation, including an adequate supply of water at the correct temperature and pressure is essential for effective operation of your machine. - Page 9 Preventative Maintenance Agreement for optimum performance and long machine life. Note: these are general instructions to assist in getting the best performance from Starline dishwashers – some comments and / or illustrations may not apply to every unit.
-
Page 11: Extent Of Warranty
If you need service during the warranty period, first contact the dealer from whom you purchased the equipment. The Dealer will arrange service by Washtech or an authorised Starline Service Provider. If you have a problem contacting your dealer or if your dealer is unable to assist, then please contact the Service Department, Washtech, telephone 09 829 0923. - Page 12 Information supplied in this manual is copyright. No part of this work may be reproduced or copied in any form or by any means, electronic or mechanical without the express permission of the author / publisher.
