Summary of Contents for Starline GL

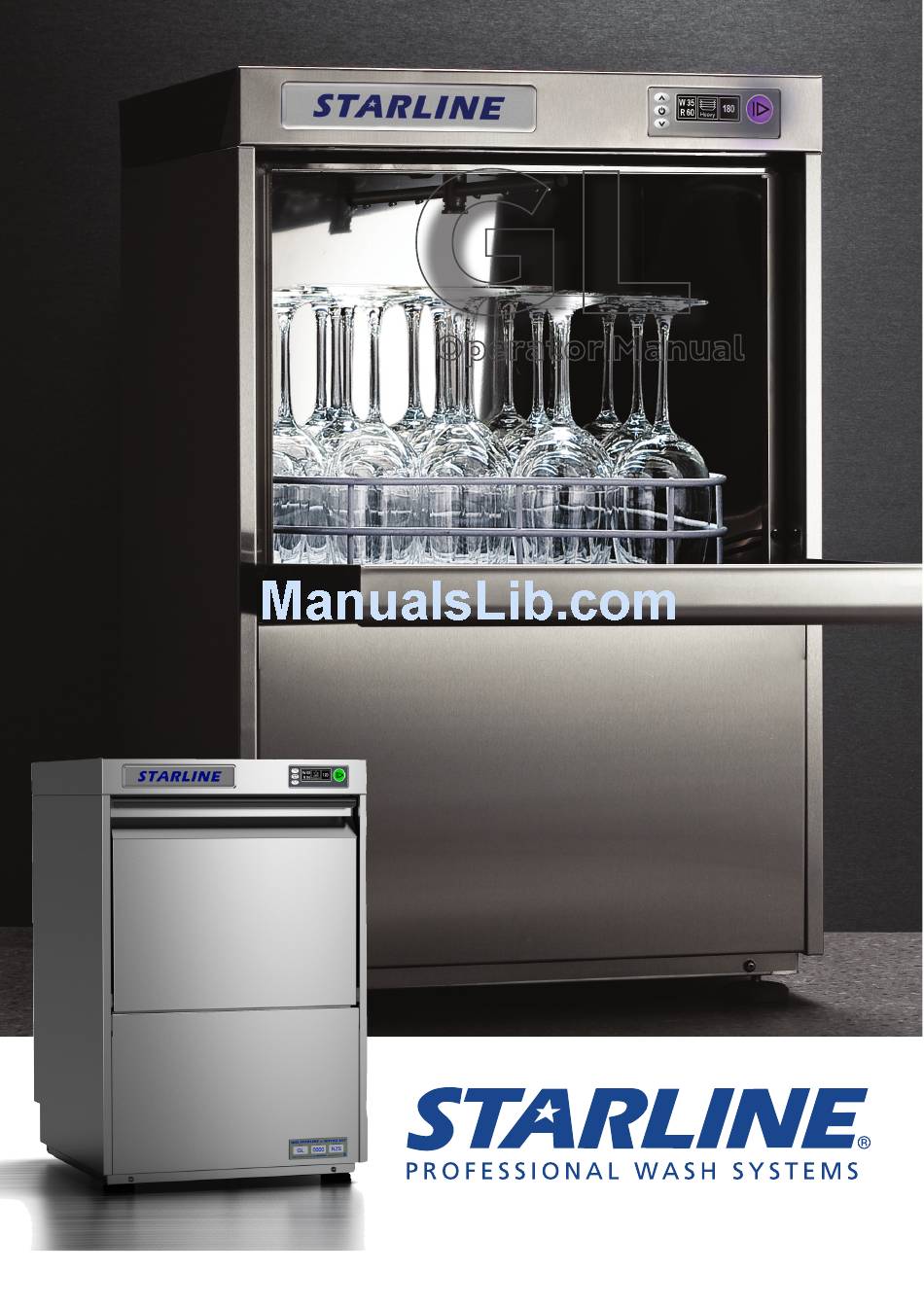

- Page 1 Operator Manual...
-
Page 2: Table Of Contents
/ publisher. m2 High performance passthrough Dishwasher - Operator Manual Service 0800 782 754 Parts 09 829 0930 Manufactured in New Zealand by Washtech Ltd. 414 Rosebank Road, Avondale, Auckland 1026. PO BOX 90548, Auckland 2 GL - Operator Manual 151007... -
Page 3: Safety Instructions
High performance passthrough Dishwasher - Operator Manual • Power Cord Replacement • If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard 3 GL - Operator Manual 151007... -
Page 4: Installation Checklist
High performance passthrough Dishwasher - Operator Manual Troubleshooting Installation • If machine doesn’t fill after switching on power, check & ensure that hot water supply tap is open, water supply pressure is not below specification. 4 GL - Operator Manual 151007... -
Page 5: Installation Diagram
GL Installation Diagram GL-S INST 04-08-14 3B 5 GL - Operator Manual 151007... - Page 6 GL Machine Operation Turn machine on at wall. Fit scrap tray, filter and shut door. Press On/Off Key for 3 Seconds Start key glows white as machine fills. If door is open then the start key glows purple Once full, rinse heating starts. Start key glows orange while heating.
-
Page 7: Operating Procedures
Cycle times are short and water consumption per cycle low – so there is no advantage in overloading racks. CYCLE TIMES The GL has a 1, 2, 3 minute cycle and extended manual cycle. CHEMICAL Correct type and quantity of detergent is essential for good results and rinse fluid speeds drying. Use good quality chemicals and regularly check supply containers. - Page 8 START/STOP key is pressed. QuickStart starts washing regardless of rinse temperature. If rinse temperature is not sufficient cycle countdown will stop at 14 seconds. Washing continues until rinse reaches temperature required for sanitization and countdown then resumes. 8 GL - Operator Manual 151007...
-
Page 9: Troubleshooting
Remove and check wash & rinse arms & jets are clean and rotating freely If plates are not pre-rinsed wash water may need changing regularly Check wash and rinse temperatures Remove rack when cycle ends and leave on the bench a few minutes for drying 9 GL - Operator Manual 151007... -
Page 10: Wiring Diagram
GL 7(S) Wiring Diagram GL7 (S) WIRING DIAGRAM 030318 15/12/14 1D IMPORTANT 10 GL - Operator Manual 151007... - Page 11 RUBBER FOOT D.60 X 10 UNDER ELECTRICAL WIRING DIAGRAM FRONT COVER OPERATOR MANUAL 213 10050 SCRAP TRAY ASSEMBLY ***CHECK IN MACHINE*** 212 10004 WASH FILTER ASSEMBLY ***CHECK IN MACHINE*** 213 10046 WASTE BASKET ASSEMBLY ***CHECK IN MACHINE*** 11 GL - Operator Manual 151007...
-
Page 12: Information Supplied In This Manual Is Copyright. No Part Of This Work May Be Reproduced Or Copied In Any Form Or
Manufactured in New Zealand by Washtech Ltd. 414 Rosebank Road Avondale Auckland 1026 New Zealand PO Box 90548, Auckland 24HR Service 0800 Starline 09 829 0930 09 829 0935 E-mail info@washtech.co.nz www.starline.co.nz ISO9001 All Washtech products are designed and...
