GAI-Tronics 707-001-EX Maintenance Manual

Smart series hazardous area speaker amplifier enclosure

Advertisement

Quick Links

Model 707-001-EX-F07045
SmartSeries Hazardous Area
Speaker Amplifier Enclosure
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.

General Information

The Model 707-001-EX Speaker Amplifier Enclosure is a component of the 700 Series Page/Party
system. It is constructed of cast aluminum and is extremely weatherproof and corrosion-resistant. This
enclosure is equipped with terminal strips for connecting system cable. The Model 709-901 SmartSeries
Amplifier mates directly with this enclosure.
N
: The Model 707-001-EX-F07045 conduit or cable entries contain metric threads.
OTE
Installation
This enclosure must be installed by trained, qualified and
competent personnel. Installation must comply with state and
national regulations, as well as safety practices for this type of
equipment.
CAUTION
Do not install this equipment in
hazardous areas other than those indicated on the approval
listing in the Specifications section of this manual. Such
installation may cause a safety hazard and consequent injury
or property damage.
The mounting location must be flat and provide proper
clearance, rigidity and strength to support the enclosure and all
contained devices. The enclosure is equipped with factory-
installed hinges. The enclosure should be mounted with hinges
on the left.
GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA
V
ISIT WWW
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
610-777-1374
800-492-1212
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-703L2A

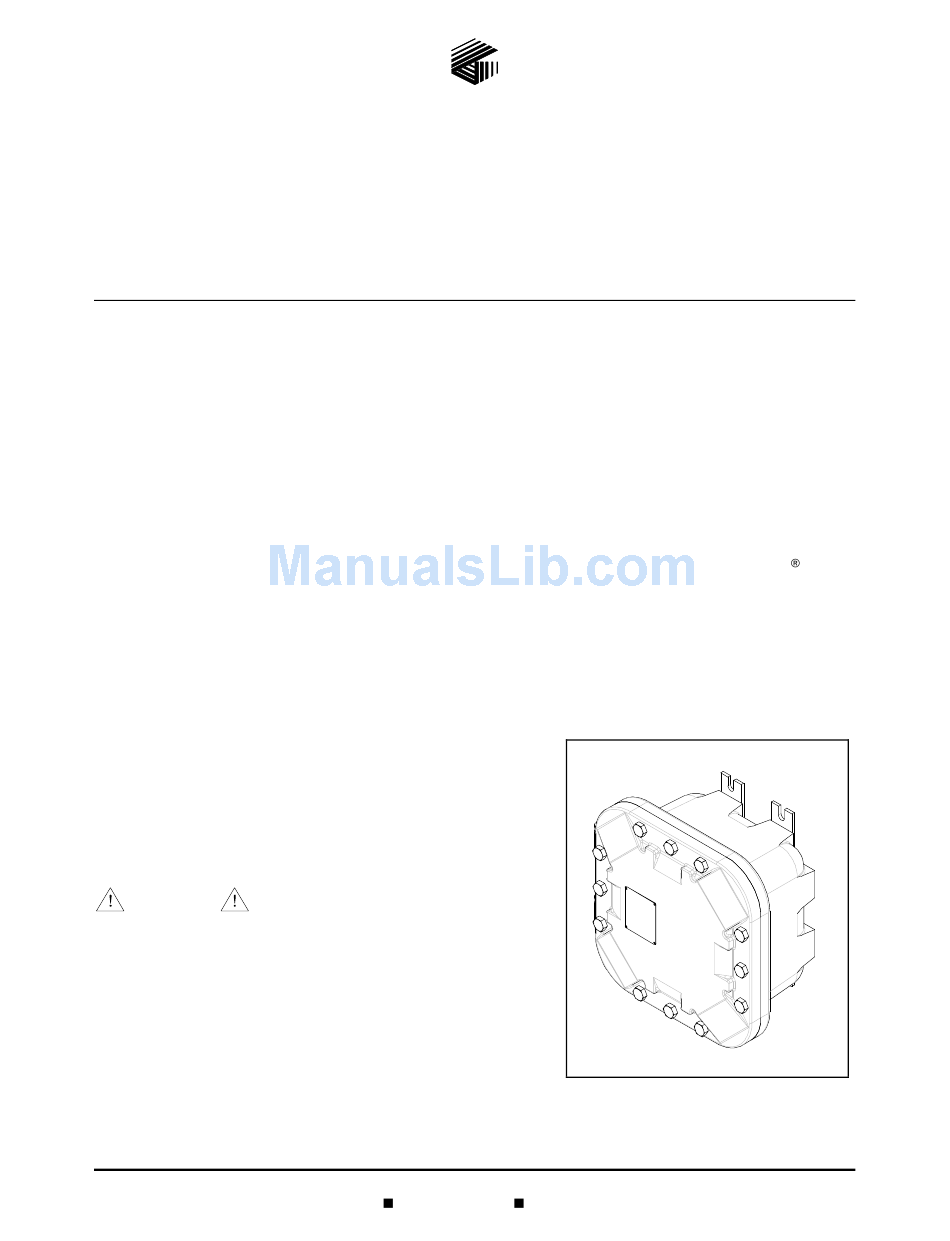

Figure 1. Model 707-001-EX-F07045
Fax: 610-796-5954

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 707-001-EX and is the answer not in the manual?

Questions and answers

Summary of Contents for GAI-Tronics 707-001-EX

  • Page 1: General Information

    GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
  • Page 2: Enclosure Placement

    All GAI-Tronics Page/Party units are wired in parallel. Good system layout design minimizes the cable required for each installation. GAI-Tronics multi-conductor cable, designed especially for this application, is recommended. For the number, size, and color-coding of conductors refer to the appropriate system connection diagrams.
  • Page 3: Hardware Configuration

    Pub. 42004-703L2A 3 of 11 Model 707-001-EX-F07045 SmartSeries Hazardous Area Speaker Amplifier Enclosure Page: Hardware Configuration External The speaker amplifier enclosure contains only applicable approval labeling on the exterior. The enclosure itself has 12 cover mounting bolts located around the perimeter, and a set of aluminum hinges located on the left side.
  • Page 4 #10-32 screws. This plate will then serve as a protection for the amplifier and the switches from the system cable when the unit is completely closed. Refer to Figure 3. Figure 3. Model 707-001-EX-F07045 Amplifier Enclosure - Interior View \\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-703l2a.doc...
  • Page 5 Pub. 42004-703L2A 5 of 11 Model 707-001-EX-F07045 SmartSeries Hazardous Area Speaker Amplifier Enclosure Page: Mounting : The mounting surface must be able to support the weight of the aluminum enclosure. See the Specification section for the weight and dimensions of the unit.
  • Page 6 Pub. 42004-703L2A 6 of 11 Model 707-001-EX-F07045 SmartSeries Hazardous Area Speaker Amplifier Enclosure Page: Cable Entries Refer to Figure 5 for the EX cable gland entries. Ensure any unused openings are sealed with proper fittings per local standards. Figure 5. Model 707-001-EX-F07045 Cable Gland Entries \\s_eng\gtcproddocs\standard ioms - current release\42004 instr.
  • Page 7 Attach the wires to the terminal blocks located behind the amplifier bridging plate. Follow the wire colors carefully because the colors correspond to GAI-Tronics cable. The wires must be spade-lugged and connected carefully and completely to the terminal block. An improper termination may result in diminished station performance.
  • Page 8: Operation

    Pub. 42004-703L2A 8 of 11 Model 707-001-EX-F07045 SmartSeries Hazardous Area Speaker Amplifier Enclosure Page: Figure 6. Wiring Diagram Operation Refer to GAI-Tronics Pub. 42004-699L2 for Model 709-901 Handset/Speaker Amplifier for detailed operational instructions. \\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-703l2a.doc 11/07...
  • Page 9: Maintenance

    Page: Maintenance Regular inspection and a good preventive maintenance program will increase the reliability of your GAI-Tronics station. The GAI-Tronics Field Service Department can formulate a service contract suited to your facility’s specific need for preventive maintenance. ® In addition, the following procedure can be used to keep Page/Party systems operating effectively.
  • Page 10: Troubleshooting

    Pub. 42004-703L2A 10 of 11 Model 707-001-EX-F07045 SmartSeries Hazardous Area Speaker Amplifier Enclosure Page: Troubleshooting The following table lists some hints to aid technicians in troubleshooting. Problem Solution Feedback occurs 1. If a speaker is close to the station, try using the muting feature in the amplifier only during enclosure at the terminal blocks.
  • Page 11: Specifications

    Pub. 42004-703L2A 11 of 11 Model 707-001-EX-F07045 SmartSeries Hazardous Area Speaker Amplifier Enclosure Page: Specifications Construction/finish................. Cast aluminum/gray polyurethane Mounting............... Wall or column, four 1/2-inch mounting feet with slots Connections ................Internal screw-type barrier terminal blocks Dimensions.......... 15.25 H × 15.25 W × 9.375 D inches (387.4 × 387.4 × 238.1 mm) Temperature range (operating and storage)...........
  • Page 12: Warranty

    Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
