Pub. 42004-179A
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
Model 774-001
Portable Station Enclosure
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.

General Information

GAI-Tronics offers the Model 774-001 Portable Station Enclosure, which when used in conjunction with a
Model 701-302 or Model 701-304 Handset/Speaker Amplifier, is ideal for extensive facilities where it is
not desirable to invest in handset stations for all possible locations.
The Model 774-001 is easily transported with the attached carrying handle, and the 25-foot cable provides
mobility to the user.

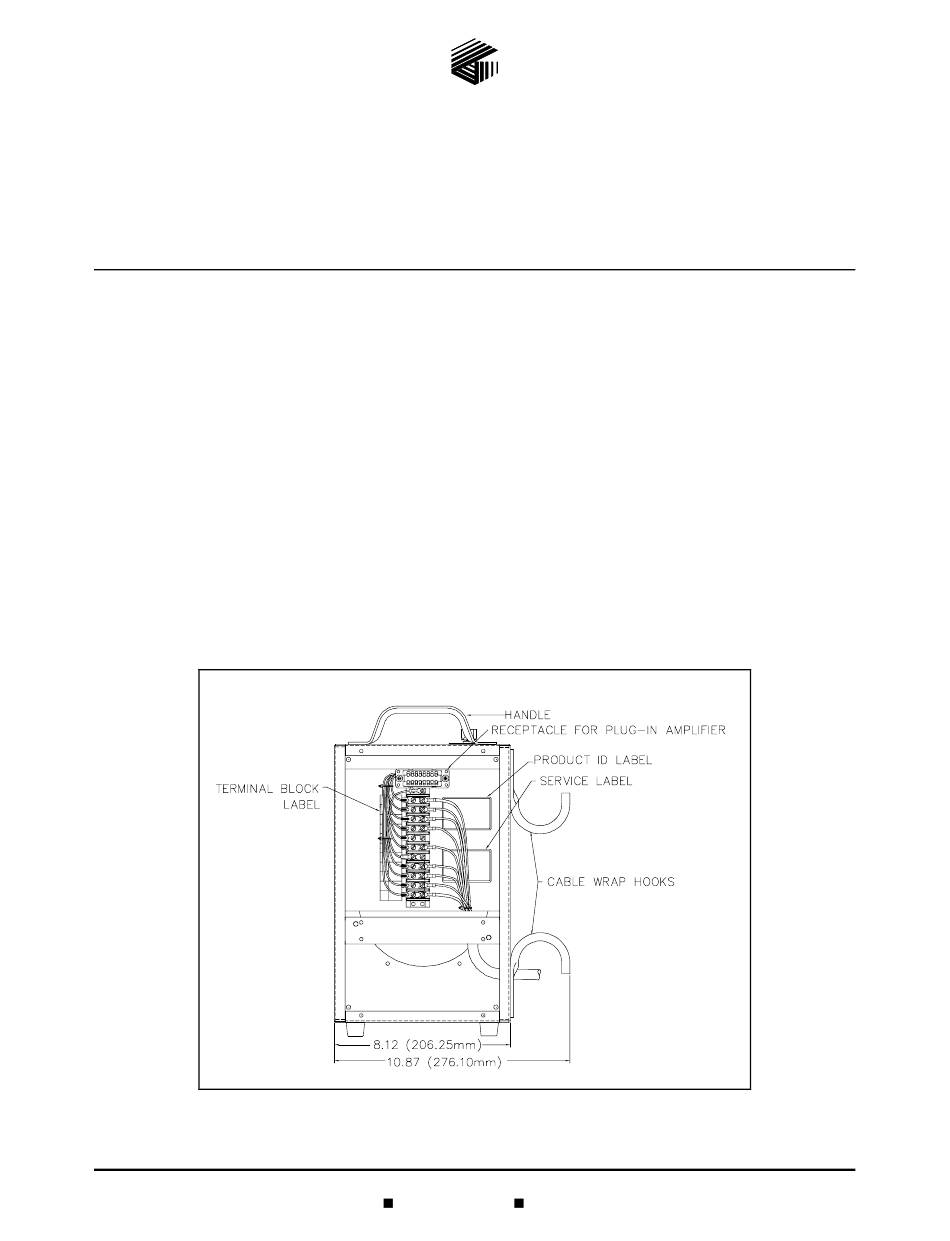

Figure 1. View of Model 774-001 with front panel removed
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374
800-492-1212
Fax: 610-796-5954
V
.
-
.
ISIT WWW
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 774-001 and is the answer not in the manual?

Questions and answers

Summary of Contents for GAI-Tronics 774-001

  • Page 1: General Information

    Model 701-302 or Model 701-304 Handset/Speaker Amplifier, is ideal for extensive facilities where it is not desirable to invest in handset stations for all possible locations. The Model 774-001 is easily transported with the attached carrying handle, and the 25-foot cable provides mobility to the user.
  • Page 2 To install the handset station, align the holes in the enclosure with the screws in the four corners of the handset station. To secure the handset when the station is being moved, the Model 774-001 includes a handset retainer assembly. To install the retainer assembly, align the two holes in the holder plate with the two bottom holes of the handset station.
  • Page 3 Insert the screwdriver into the hole under the name tag, and adjust the volume control for the desired output level. There is also a volume control located on the top of the Model 774-001 Enclosure. This control adjusts the speaker amplifier’s output level from a minimum to a maximum level determined by the amplifier’s internal setting.
  • Page 4 Pub. 42004-179A 4 of 4 Model 774-001 Portable Station Enclosure Page: Replacement Parts Part Number Description 13323-001 Speaker 14727-003 Handset Retainer Assembly 12564-002 Knob Kit 61509-004 Harness Assembly \\s_eng\gtcproddocs\standard ioms - current release\42004 instr. manuals\42004-179a.doc 10/00...
  • Page 5 Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
