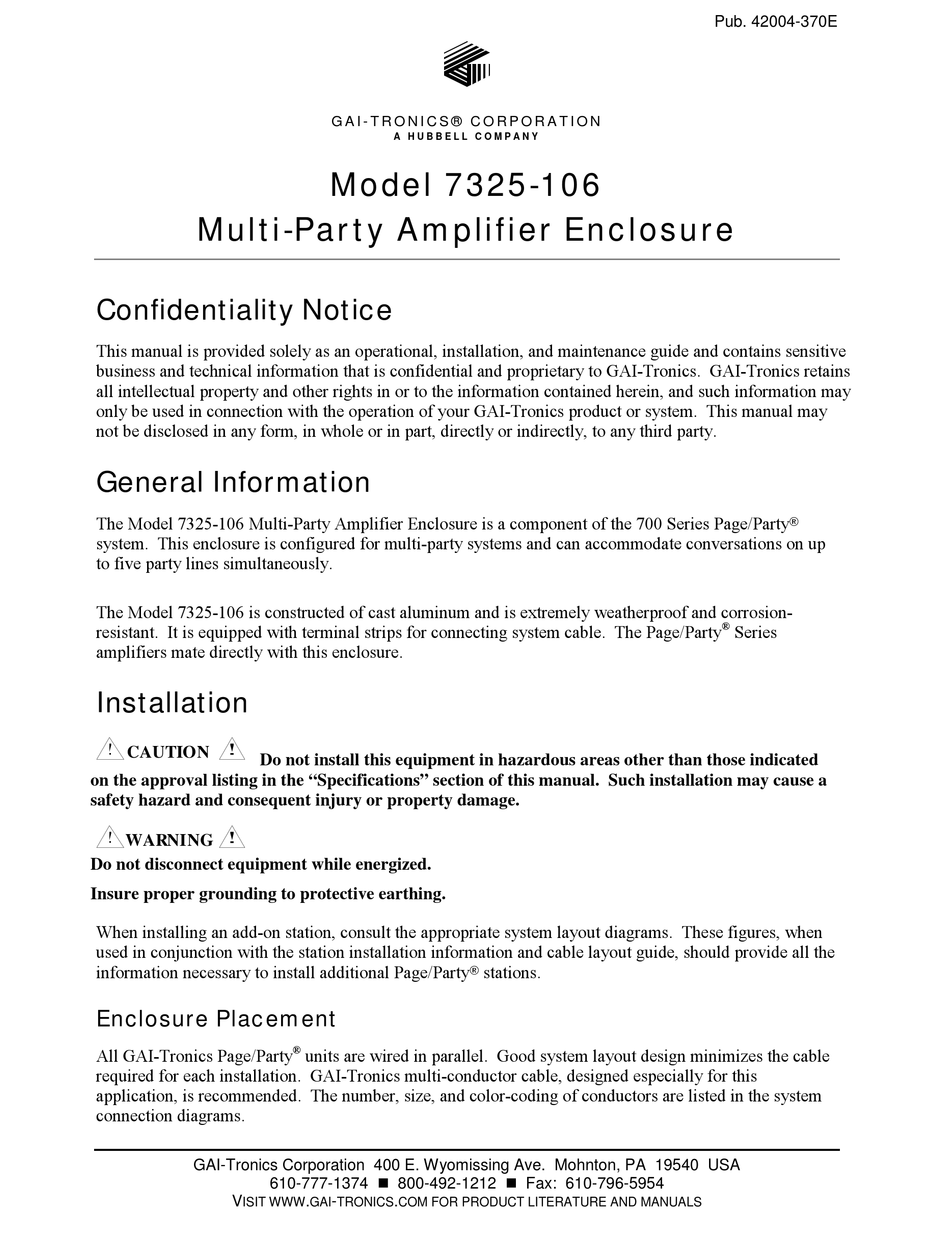

Multi-Party Amplifier Enclosure
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics retains
all intellectual property and other rights in or to the information contained herein, and such information may
only be used in connection with the operation of your GAI-Tronics product or system. This manual may
not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.

General Information

The Model 7325-106 Multi-Party Amplifier Enclosure is a component of the 700 Series Page/Party
system. This enclosure is configured for multi-party systems and can accommodate conversations on up
to five party lines simultaneously.
The Model 7325-106 is constructed of cast aluminum and is extremely weatherproof and corrosion-
resistant. It is equipped with terminal strips for connecting system cable. The Page/Party
amplifiers mate directly with this enclosure.

Installation

CAUTION
Do not install this equipment in hazardous areas other than those indicated
on the approval listing in the "Specifications" section of this manual. Such installation may cause a
safety hazard and consequent injury or property damage.
WARNING
Do not disconnect equipment while energized.
Insure proper grounding to protective earthing.
When installing an add-on station, consult the appropriate system layout diagrams. These figures, when
used in conjunction with the station installation information and cable layout guide, should provide all the
information necessary to install additional Page/Party stations.

Enclosure Placement

All GAI-Tronics Page/Party
required for each installation. GAI-Tronics multi-conductor cable, designed especially for this
application, is recommended. The number, size, and color-coding of conductors are listed in the system
connection diagrams.
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
V
ISIT WWW
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
Model 7325-106
®
units are wired in parallel. Good system layout design minimizes the cable
610-777-1374  800-492-1212  Fax: 610-796-5954
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-370E
®
Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7325-106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GAI-Tronics 7325-106

  • Page 1: General Information

    GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party.
  • Page 2 Mounting The Model 7325-106 Weatherproof Metallic Enclosure is supplied with pre-drilled cable openings and dual 1.25-inch conduit hubs located on both the top and bottom. For these four entries, two have hole plugs in place and two have (provided) cap plugs to prevent contamination.
  • Page 3 Attach the conduit to the enclosure. Feed the wiring through the conduit and bring it into the enclosure. See Figure 2. Follow the wire colors carefully because the colors correspond to GAI-Tronics multi-party cable. The wires must be spade-lugged and connected carefully and completely to the terminal block. An improper termination may result in diminished station performance.
  • Page 4 Pub. 42004-370E 4 of 6 Model 7325-106 Multi-Party Amplifier Enclosure Page Figure 2. Wiring Diagram f:\standard ioms - current release\42004 instr. manuals\42004-370e.doc 09/13...
  • Page 5: Troubleshooting

    Page Maintenance Regular inspection and a good preventive maintenance program will increase the reliability of your GAI-Tronics station. The GAI-Tronics Field Service Department can formulate a service contract suited to your facility’s specific need for preventive maintenance. ® In addition, the following procedure can be used to keep Page/Party systems operating effectively.
  • Page 6: Specifications

    Pub. 42004-370E 6 of 6 Model 7325-106 Multi-Party Amplifier Enclosure Page Specifications Construction/finish ............Sand-cast A319 aluminum alloy, cam-style latch, hinged door with gasket; gray enamel paint Mounting ..........Wall, column, or pole (mounting kit required for pole mounting), four 0.44-inch (11.2 mm) mounting holes Connections................
  • Page 7 Warranty GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any Equipment. GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
