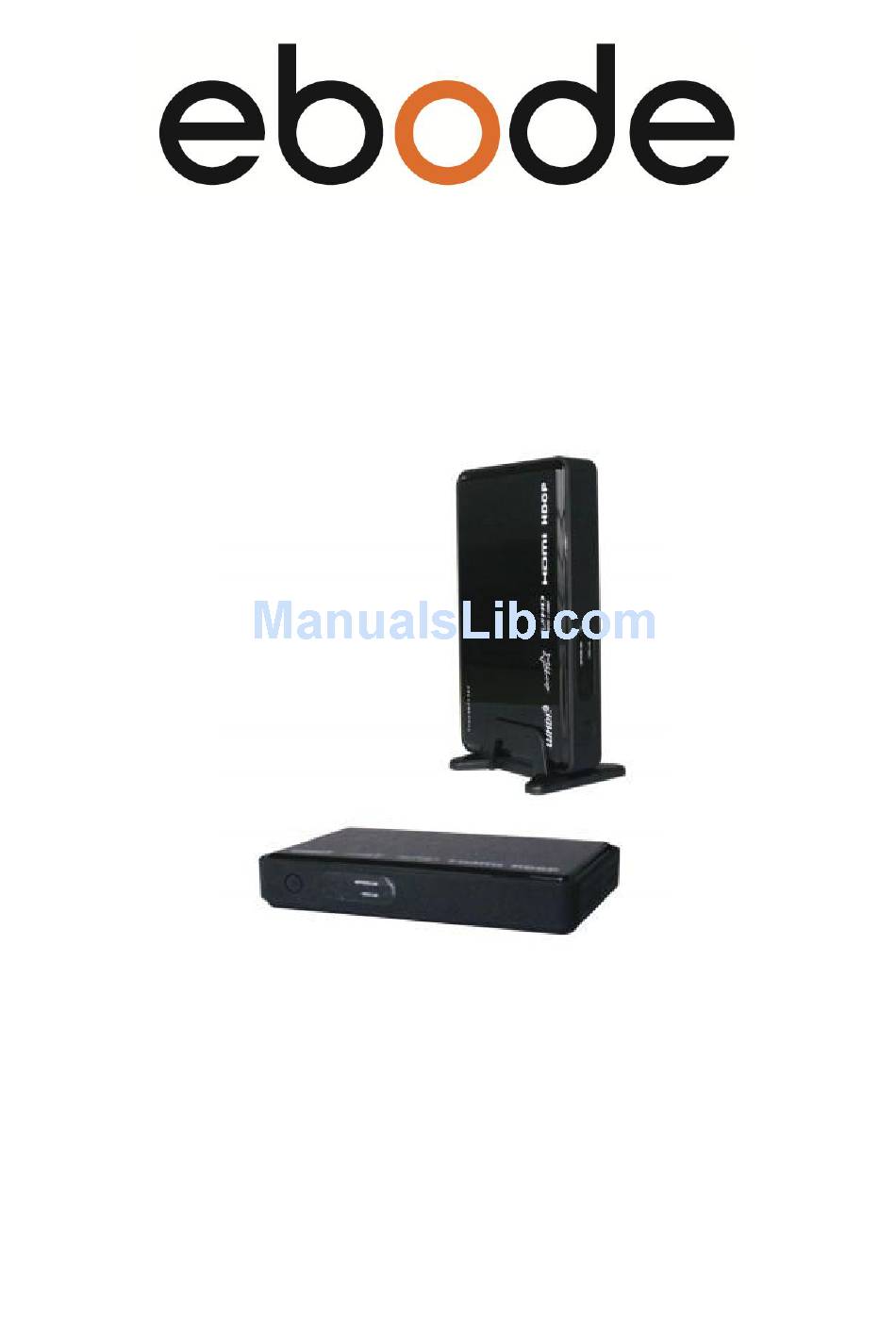

- Page 1 HD Video Link Full HDMI Wireless Audio/Video Sender System VLHD30 Before using our product, please read this documents carefully.
-
Page 2: Table Of Contents
The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility. 31-5-2012 ebode VLHD30... -
Page 3: Introduction
● Transmission power ≧12dBm; ● Auto set-up, plug & play. One to One connection; ● Support AES-256 bit Encryption for securing Video Transmission over wireless; ● Support maximum 100kbs Return channel; ● Support OSD; ● Support WHDI 1.0; 31-5-2012 ebode VLHD30... -
Page 4: Set Contents
100～240V AC，5V 2A DC Power Supply -20～80℃ Storage Temperature Operating Temperature -10～50℃ *Operation on the NON-DFS (Dynamic frequency selection) Frequency with automatic Frequency selection, the system will automatically change frequency in case of interference with another RF system. 31-5-2012 ebode VLHD30... -
Page 5: Hardware Overview
① Receptor for the power Adapter 5V/2A, using power supply with different Voltage rating than the one included with the VLHD30 will cause damage and void warranty for these products. ② HDMI Input Connector Connect all devices with a good quality HDMI High Speed Cable to make sure The connection is in the best possible condition. - Page 6 ① Receptor for the power Adapter 5V/2A, using power supply with different Voltage rating than the one included with the VLHD30 will cause damage and void warranty for these products. ② HDMI Output connector Connect all devices with a good quality HDMI High Speed Cable to make sure The connection is in the best possible condition.
-
Page 7: Before You Begin
Make sure your 5.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone is not in use. 31-5-2012 ebode VLHD30... -
Page 8: Installing The System
Receiver. It is mean the installation has been succeeded. NOTE: Except North America, the wireless link might require 80 seconds to connect between Transmitter and Receiver, and show video on the TV screen. Please be patient and wait for a while. 31-5-2012 ebode VLHD30... - Page 9 Note: Our product will only operate with 38K modulation remote controls. 31-5-2012 ebode VLHD30...
-
Page 10: Quick Installation Guide
8. Quick Installation Guide 31-5-2012 ebode VLHD30... -
Page 11: Technical Data
HD video encryption HDCP 1.2 LOS(line of sight) ≦30M Input voltage 5VDC Operation current 2A±10% Operating Temperature -10℃~50℃ -20℃~80℃ Storage temperature Operation Humility 15~85%RH All the miner change in the technical specification will not be noted。 31-5-2012 ebode VLHD30... - Page 12 * Failure 2: After power on the transmitter and receiver for more than 1 min. Why the Network Link LED is still off? Answer：It is possible the distance is too long or there are objects in between the transmitter and receiver. Please change the location. 31-5-2012 ebode VLHD30...
- Page 13 Answer: Please check if the IR extension cable is properly plugged into the IR connector, make sure the IR LED is aimed to the players control receiver area. Make sure the remote control is a 38KHz IR control remote. 31-5-2012 ebode VLHD30...
- Page 14 NOTES 31-5-2012 ebode VLHD30...
- Page 15 DECLARATION OF CONFORMITY Hereby, ebode declares that this VLHD30 is in compliance with the essential requirements and other relevant provisions of the following Directives: 1) Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the...
- Page 16 Dansk [Danish]: Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Direktiv 1999/5/EF. Polski [Polish]: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami okreslonymi Dyrektywą UE: 1999/5/EC 31-5-2012 ebode VLHD30...
- Page 17 Also available from ebode: TAKE10 Universal Remote Control The TAKE10 is an elegant universal remote that is able to control up to 10 A/V devices, including TV, DVD, VCR, Cable, X10 Home Automation products and more. You don’t even have to remember which TV station is on...
- Page 18 Also available from ebode: LightSpeaker The Next Bright Idea unique ebode LightSpeaker cleverly combines low consumption LED lighting with wireless sound in one easy ‘plug and play’ system that can be hidden away in a lampshade or light fitting. !nstall it into any room in just a...
- Page 19 Also available from ebode: Hide your A/V gear Place your A/V equipment inside your TV cabinet and out-of-sight! Use ebode’s InfraRed products to control your equipment with your existing remote control. Place the table top mouse Receiver on top of your TV cabinet.
- Page 20 31-5-2012 ebode VLHD30...
