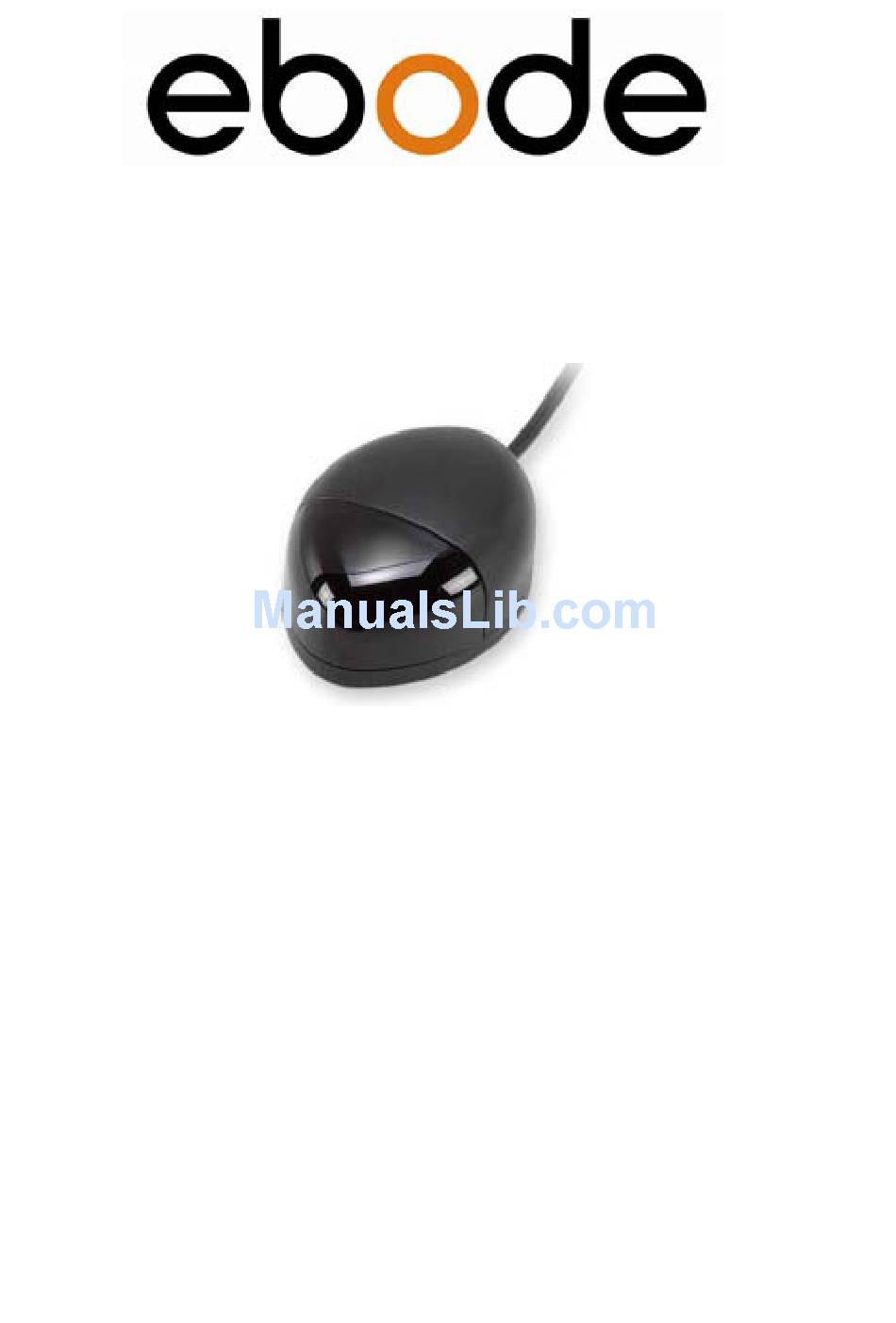

- Page 1 IR Link Pro IR Link Series – Extend your remote! IR Link Pro – Mains Powered IR Remote Control Extender...
- Page 2 Contents of the kit / Lieferumfang / Inhoud van de kit / Innehåll / Contenu du kit / Contenido del paquete / Conteúdo do kit / Dotazione del kit 1 IRLPRO IR Link Pro Table Top IR Receiver, 1 IRHUB2 Connecting Block + Status input Jumper Cable,...
-
Page 3: User Guide
3 devices, and a 1IRQC Quick Connect cable for direct control of popular audio/video Receivers (e.g. Yamaha, Onkyo, Denon, Marantz, NAD, Harman Kardon etc). The IR Link Pro runs on a 12VDC mains adapter (included) and is expandable with extra IR Link Receivers in different rooms. - Page 4 The IR Link Pro is a pre-packaged InfraRed Remote Control Extender System. It includes an IRLPRO IR Link Pro Table Top IR Receiver, an IRHUB2 Connecting Block with 2 Emitter outputs + Status input Jumper Cable, a 3IREDB Triple Blinking Emitter, a 1IRQC Quick Connect cable and a 12VDC Power Supply.
- Page 5 After repositioning, check to see if the IR Link Pro operates the satellite Receiver or other components. If the IR Link Pro still does not work, reposition the IRED Emitter(s). It may not be located directly over the component’s InfraRed receiving "window". Consult the owner's manual of the unit or the manufacturer for the exact location of the InfraRed "window".
- Page 6 Dimensions IRLPRO IR Receiver: 50x35x25mm NOTE: Unit will not work with certain brands & models that operate at higher frequencies (e.g. B&O). Contact ebode Technical Support for more information. Cable requirements for long lengths to remote rooms: 3-conductor, 24AWG/0,2mm2 solid or stranded wire up to 50m, 22AWG/0,35mm2 up to 100m, 20AWG/0,5mm2 up to 200m and 18AWG/1mm2 up to 300m (unshielded OK).
- Page 7 DECLARATION OF CONFORMITY Hereby, ebode electronics, declares that this ebode IR Link Pro is in compliance with the essential requirements and other relevant provisions of the following Directives: Directive 2004/108/EC of the European Parliament and of the Council of 15 December...
- Page 8 19-8-2010 IR Link Pro...
