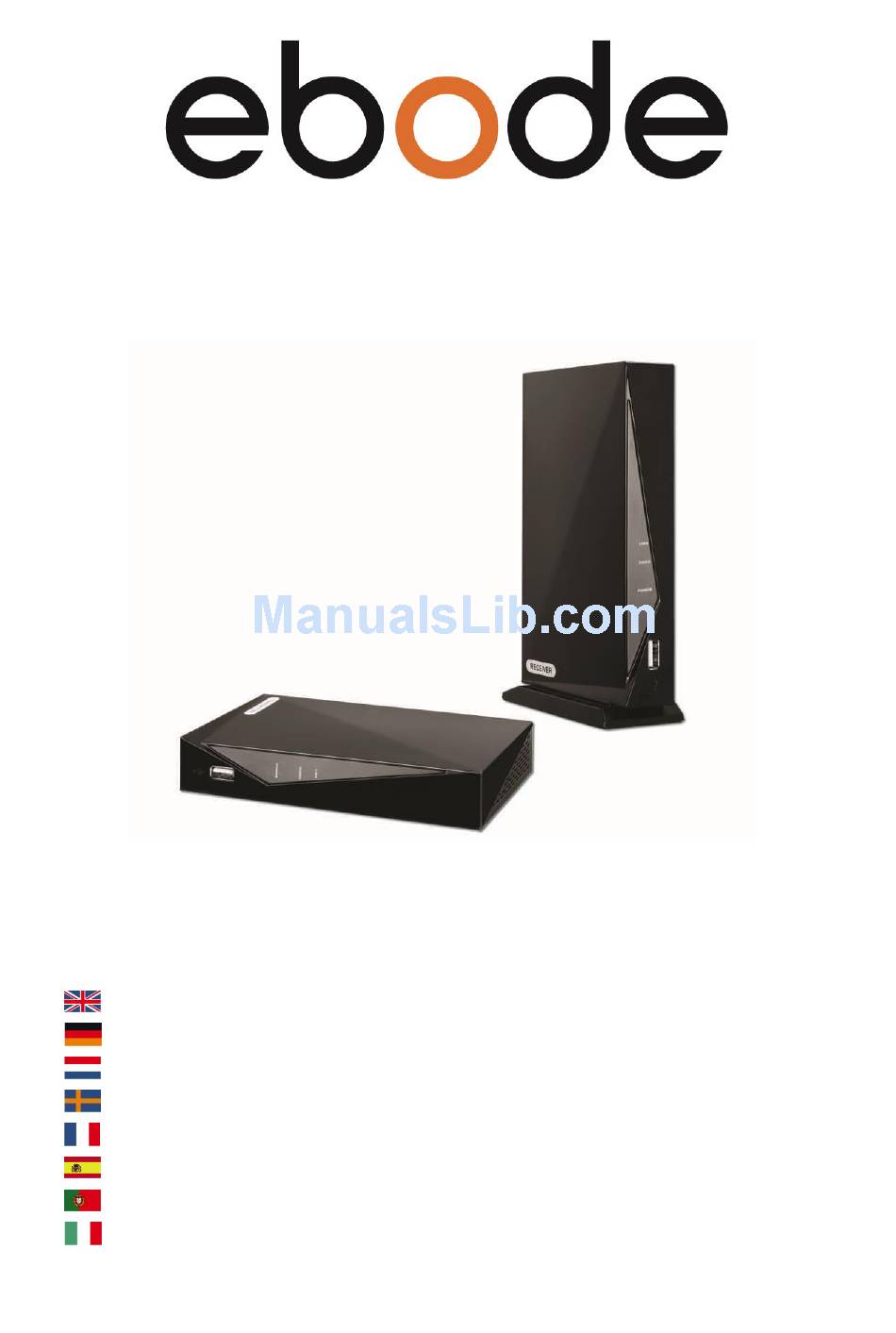

  • Page 1 HDMI Video Link VLHD30 – Full HD Video Sender User guide Bedienungsanleitung Gebruiksaanwijzing Användarmanual Guide utilisateur Guía del usuario Manual do utilizador Manuale per l’utente Before using our product, please read this documents carefully.
  • Page 2 The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility. 27-3-2013 ebode VLHD30...
  • Page 3 -Remote control your source 2.3 Packing Content: Please check whether the following items are present in the package. If any items was missed or damaged, please call your distributor. 2.4 Main units: 1x VLHD30 Transmitter 1x VLHD30 Receiver 27-3-2013 ebode VLHD30...
  • Page 4 2.4.1 Accessories: 2x Power Supply 1x IR Emitter 2x Holding chassis 1x USB Cable (A-A) 2x HDMI Cable 1m 1x User Manual USB cable (A-A) Holding chassis IR Emitter U sers manual ’ 27-3-2013 ebode VLHD30...
  • Page 5 2.4.2 VLHD30 Transmitter Instructions 1) LED indications on the front panel -Power LED: indicate power state -Video LED: indicate HDMI connection -Link LED: indicate wireless connection -USB Interface: used for PC connection or other USB host device 2) Interface indications on the back panel...
  • Page 6 (eye) for IR transmission. 27-3-2013 ebode VLHD30...
  • Page 7 Use the included HDMI cable to connect the Transmitter and LCD Display, HD LCD TV,  or Projector etc. Use the included USB cable to connect the Transmitter and USB Mouse, Keyboard, and  PS3 Game Controller. 27-3-2013 ebode VLHD30...
  • Page 8 TV, if the picture is good please reconnect and re- locate the transmitter and receiver and try again. 2. Check the HDMI cables of the Receiver, HD source and if your display HDMI connectors are undamaged and connected correctly to the right in/output. 27-3-2013 ebode VLHD30...
  • Page 9 HDMI Handshake. Make sure the Source and Unresolved TV work correctly when connecting them together without the Transmitter Issues and Receiver before searching for problems with the VLHD30 kit. Look at our website FAQ before contacting your store of Purchase. 6. Sample of use 27-3-2013...

  • Page 10: Declaration Of Conformity

    DECLARATION OF CONFORMITY Hereby, ebode declares that this VLHD30 is in compliance with the essential requirements and other relevant provisions of the following Directives: 1) Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the...
  • Page 11 Dansk [Danish]: Dette udstyr er i overensstemmelse med de væsentlige krav og andre relevante bestemmelser i Direktiv 1999/5/EF. Polski [Polish]: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami okreslonymi Dyrektywą UE: 1999/5/EC 27-3-2013 ebode VLHD30...
  • Page 12 Also available from ebode: TAKE10 Universal Remote Control The TAKE10 is an elegant universal remote that is able to control up to 10 A/V devices, including TV, DVD, VCR, Cable, X10 Home Automation products and more. You don’t even have to remember which TV station is on...
  • Page 13 Also available from ebode: LightSpeaker The Next Bright Idea unique ebode LightSpeaker cleverly combines low consumption LED lighting with wireless sound in one easy ‘plug and play’ system that can be hidden away in a lampshade or light fitting. Install it into any room in just a...
  • Page 14 Also available from ebode: Hide your A/V gear Place your A/V equipment inside your TV cabinet and out-of-sight! Use ebode’s InfraRed products to control your equipment with your existing remote control. Place the table top mouse Receiver on top of your TV cabinet.
  • Page 15 NOTES 27-3-2013 ebode VLHD30...
