Draytek Vigor2920 User Manual page 150

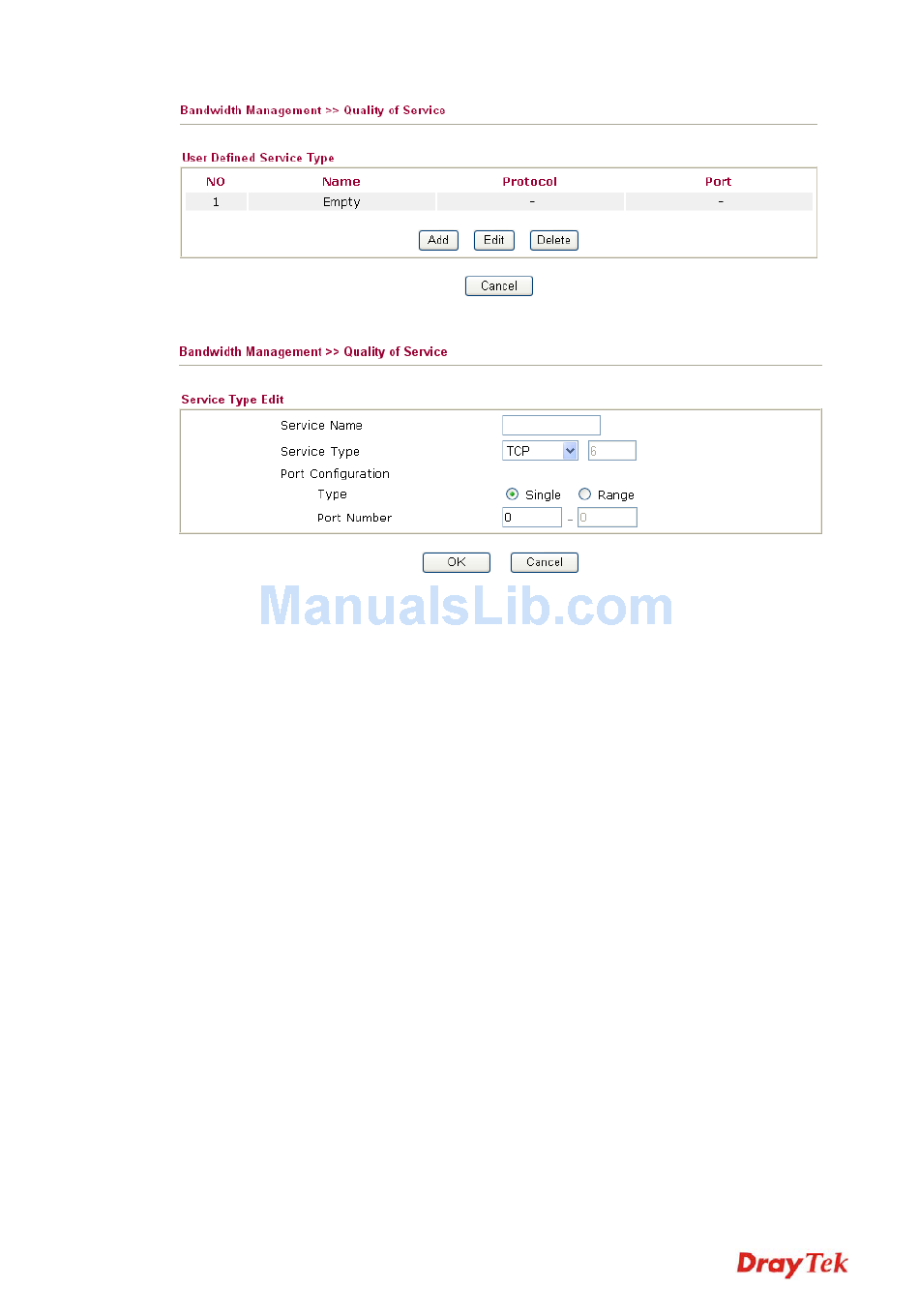

For adding a new service type, click Add to open the following page.
Service Name
Service Type
Port Configuration
By the way, you can set up to 40 service types. If you want to edit/delete an existed service
type, please select the radio button of that one and click Edit/Edit for modification.
Vigor2920 Series User's Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Type in a new service for your request.
Choose the type (TCP, UDP or TCP/UDP) for the new service.
Click Single or Range as the Type. If you select Range, you
have to type in the starting port number and the end porting
number on the boxes below.
Port Number – Type in the starting port number and the end
porting number here if you choose Range as the type.
140
