On-Demand Water Heater
Installation Manual and Owner's Guide
T-H3-DV model /
540H only

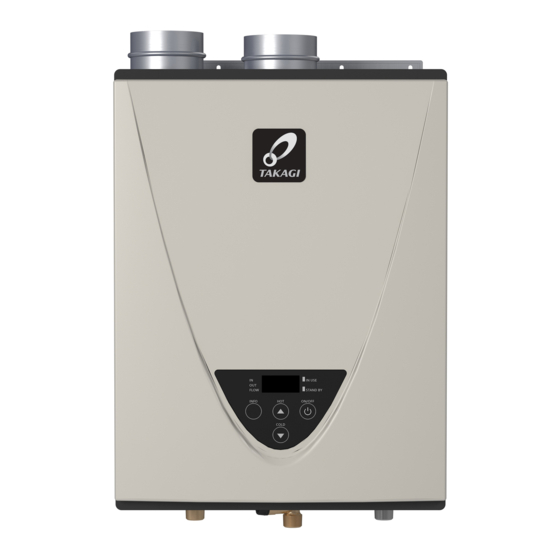

Gas Tankless Water Heater
Suitable for potable water heating and space-heating
Please refer to local codes for space-heating compliance.
FEATURING
• ENDLESS HOT WATER
• ON-DEMAND USAGE
• COMPACT, SPACE SAVING
• ENERGY CONSERVATION
• COMPUTERIZED SAFETY
• NO PILOT LIGHT
• EASY-LINK SYSTEM AND
MULTI-UNIT SYSTEM
T-H3-DV model / 540H only
ANSI Z21.10.3 and CSA 4.3
WARNING
- Do not store or use gasoline or other
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch, do not
• Immediately call your gas supplier from
TM
• If you cannot reach your gas supplier, call
- Installation and service must be performed
Models
T-H3J-DV / 240H
T-H3S-DV / 340H
T-H3-DV / 540H
If the information in these
instructions is not followed
exactly, a fire or explosion may
result causing property damage,
personal injury or death.
flammable vapors and liquids in the vicinity
of this or any other appliance.
use any phone in your building.
a neighbor's phone. Follow the gas
supplier's instructions.
the fire department.
by a qualified installer, service agency or the
gas supplier.
If you have any questions, please
call 1-888-479-8324
