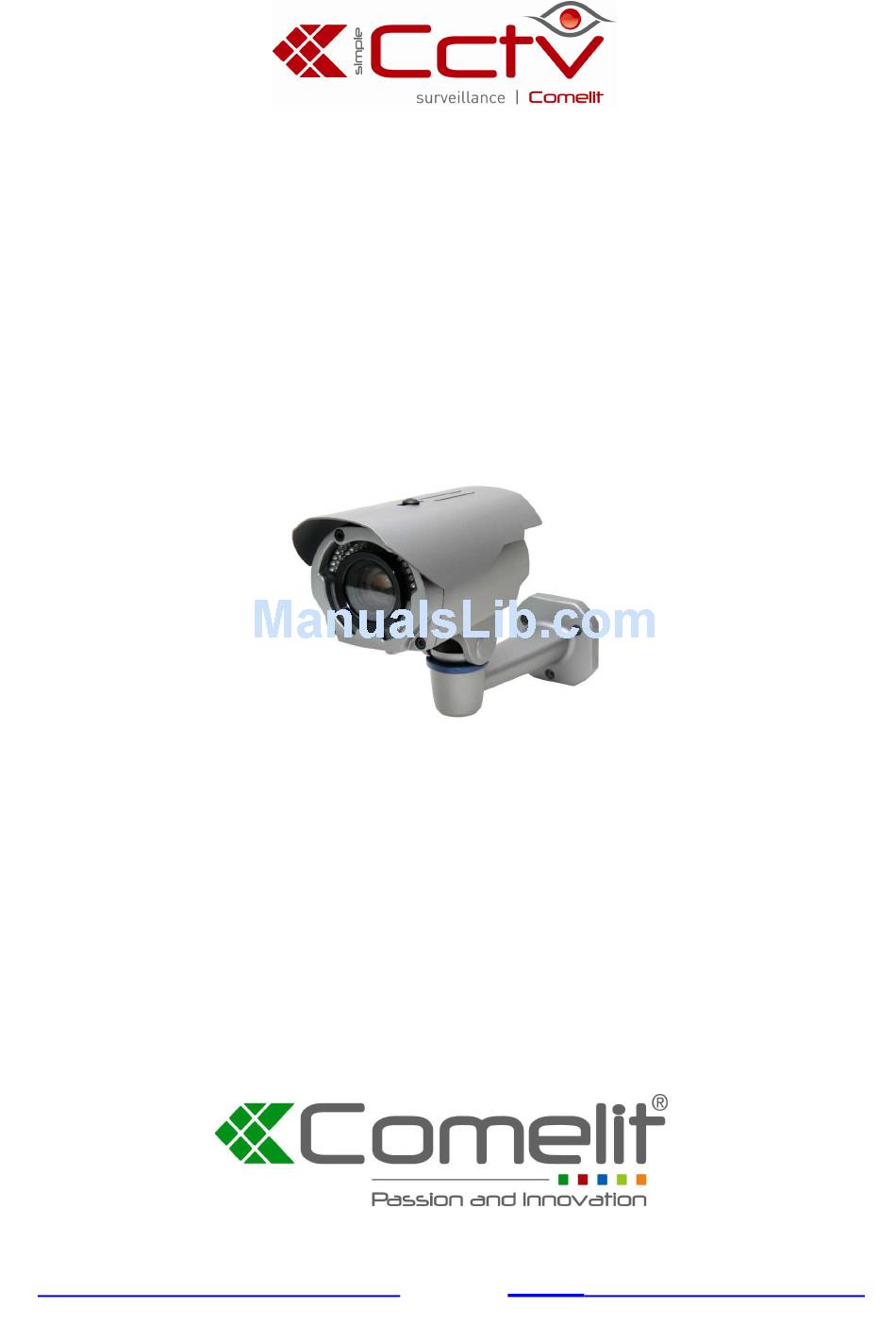

- Page 1 1/3” CCD SONY SUPER HIGH RESOLUTION COLOR DAY & NIGHT CAMERA ART. HCAM675B-HCAM676B Please read this manual thoroughly before use, and keep for future reference. Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail:export.department@comelit.it...
-
Page 2: Warnings And Cautions
WARNINGS AND CAUTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN... -
Page 5: Contents Of Package
CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment. The contents of the package include: 1. -
Page 6: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ----------------------------------------------------------------------------------------- 1 CAMERA CONNECTION & CONTENSTS of PACKAGE ------------------------------------- 2 CONTENTS of PACKAGE & QUICK INSTALL -------------------------------------------------- 3 OSD MENU STRUCTURE ---------------------------------------------------------------------------- 5 AUTO WHITE DEFECT & LENS ADJUSTMENT ---------------------------------------------- 12 SPOT OUT / JOY STICK KEY --------------------------------------------------------------------- 13 EXTERNAL DIMENSIONS---------------------------------------------------------------------------- 14 SPECIFICATIONS ------------------------------------------------------------------------------------- 15... -
Page 7: Introduction
INTRODUCTION The camera provides high-quality images using SONY 1/3” CCD and digital Signal process LSIs. Features: 1/3" EXview HAD CCD Ⅱ for an image of high sensitivity ● ● 2.8~12 mm D/N Varifocal (DC AI) / 5~50 mm D/N Varifocal (DC AI) ●... -
Page 8: Camera Connection & Contensts Of Package
CAMERA CONNECTION Bullet Camera Power: power source from a DC 12V or AC 24V Video: BNC connector used to connect the camera to a monitor, switcher, ect. -
Page 9: Contents Of Package & Quick Install
CONTENTS of PACKAGE QUICK INSTALL 1. Drill the mounting location using the supplied drill guide label. 2. Attach the bullet housing to the ceiling using suitable fasteners, PTS M5 x 30MM screws are supplied only use if they are suitable. 3. - Page 10 (If something is disturbing Photo Sensor, operation problem might be occurred)
-
Page 11: Osd Menu Structure
OSD MENU STRUCTURE SETUP MENU (page 1) LENS SHUTTER/AGC LENS SHUTTER/AGC WHITE BAL AUTO ↵ AUTO↵ BACKLIGHT MANUAL MANUAL↵ PICT ADJUST MOTION DET NEXT (page2) EXIT SAVE ALL WHITE BALANCE BACKLIGHT ATW ↵ PUSH USER 1↵ USER 2↵ ANTI CR MANUAL ↵... - Page 12 SETUP MENU (page 2) PRIVACY PRIVACY DAY/NIGHT DAY/NIGHT COLOR CAMERA ID B/W↵ LANGUAGE ↵ CAMERA RESET BACK (page 1) EXIT SAVE ALL CAMERA ID NR↵ NR MODE Y LEVEL C LEVEL RETURN ↵ LANGUAGE CAMERA RESET ENGLISH ʩ׳ (return the camera to factory defaults) DEUTSCH FRANCAIS...
- Page 13 LENS AUTO TYPE (DC / VIDEO) Sets the type of mechanical iris (Video lens is not supported) MODE (AUTO / OPEN / CLOSE ) Sets the type of control to be applied over the mechanical iris. SPEED (0 – 255) Sets the convergence speed of the mechanical iris.
-
Page 14: White Bal
WHITE BAL ATW (Auto Trace White balance) SPEED (0~255) Adjusts the pull-in speed of ATW. DELAY CNT (0~255) Sets the time-based hysteresis of ATW. ATW FRAME (x0.5 / x1 / x1.5 / x2) Sets the pull-in frame magnification. ENVIROMENT (INDOOR / OUTDOOR) Preset for either indoor or outdoor applications of the ATW PUSH Wide range Auto White Balance mode (AWB) -
Page 15: Motion Det
ATR (Adaptive Tone Reproduction) allows adjustment of the image to assist with widely contrasting scenes of view. LUMINANCE (LOW / MID / HIGH) Sets the extent of the luminance compression CONTRAST (LOW / MIDLOW / MID / MIDHIGH / HIGH) Sets the extent of the contrast enhancement MOTION DET DETECT SENSE (0~127) - Page 16 LEFT (NTSC:0~474 , PAL:0~468) 0 = left RIGHT (NTSC:0~474 , PAL:0~468) 474(468) = right COLOR (1~8) Sets the colors of the privacy zones. TRANSP (0.00 / 0.50 / 0.75 / 1.00) Sets the transparency of the privacy zone area if color is selected. MOSAIC (OFF / ON) Sets the mosaic function as the privacy to ON or OFF.
-
Page 17: Camera Reset
CAMERA ID Sets the camera ID to ON or OFF. A title of 52 characters per line can be applied. Use the joystick to navigate the cursor. Pushing centrally on the joystick will allow selection of that character. The arrows at the bottom allow you to move the cursor without changing the character. -
Page 18: Auto White Defect & Lens Adjustment
AUTO WHITE DEFECT Push the left button for 5 seconds and enter Auto white defect menu. Cover the lens and Enter for starting. If white defects are over 65pcs, the camera is faulty and auto defect is useless. Over 70'C Auto white defect can't be activated. LENS ADJUSTMENT... -
Page 19: Spot Out / Joy Stick Key
Art. HCAM676B HCAM675B Lens 5 ~ 50 mm 2.8 ~ 12 mm Angular HORIZONTAL Field of 51.5° ~ 6.5° 100.8 ° ~ 23.7 ° View SPOT OUT / JOY STICK KEY... -
Page 20: External Dimensions
EXTERNAL DIMENSIONS... -
Page 21: Specifications
