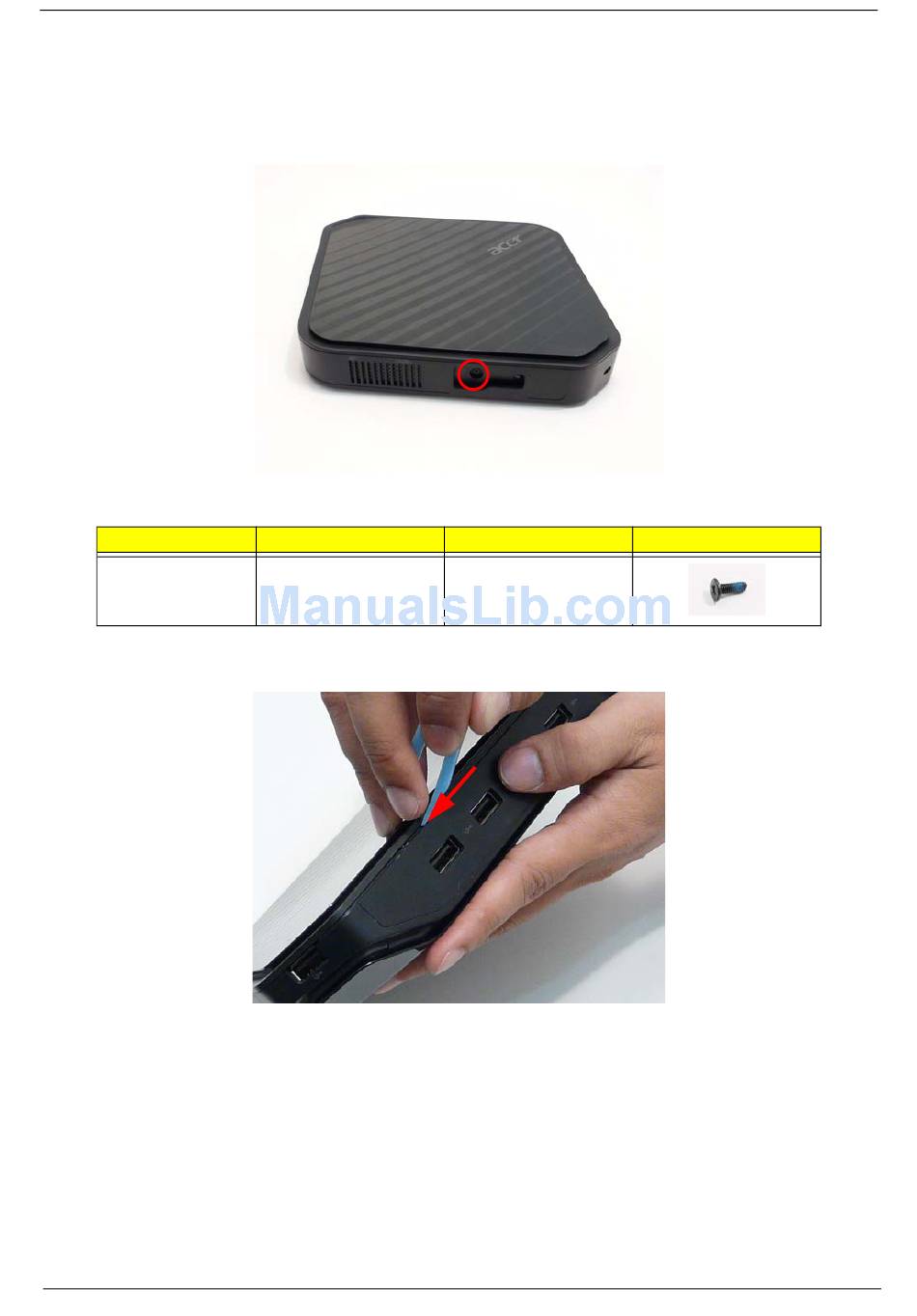

Removing the Upper Cover

If necessary first remove any mounts that may be attached to the unit. See "Removing the Stand" on page 10.
See "Removing the Monitor Mount" on page 11.
1.
Remove the one (1) screw.
Step
Removing the
Upper Cover
2.
Insert a plastic tweezer end or other soft tool to lever open the upper cover from the lower cover in the
side location shown.
NOTE: Ensure to open in the middle of the side as there are latches to either side of the location.
Chapter 2
Size
M2*6
Quantity
1
Screw Type
13
