Team Durango DEX210v2 User Manual page 36

+
G
1:1

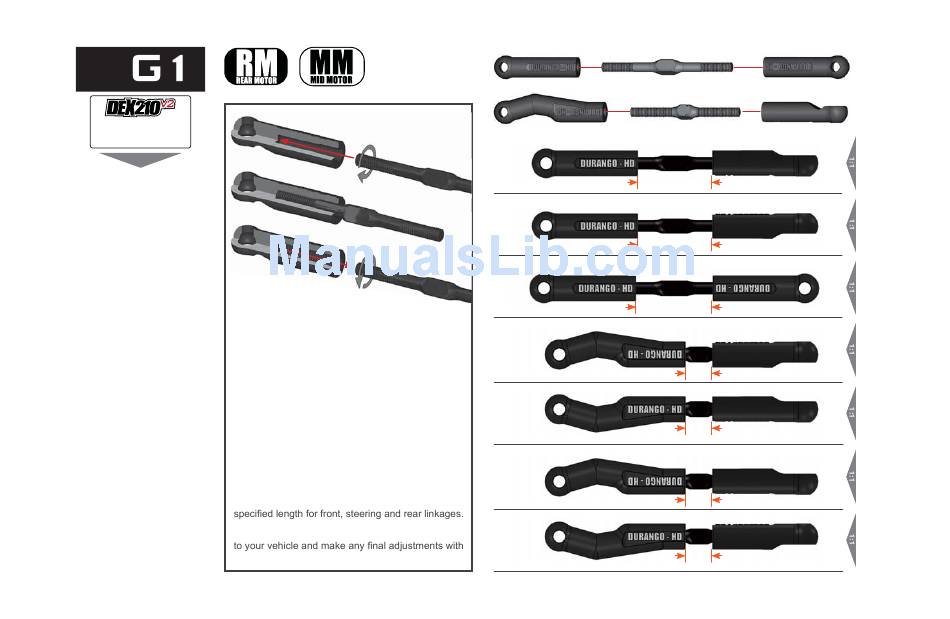

To achieve the optimum turnbuckle assembly,
follow this step-by-step guide and you will build
the perfect linkages. Prior to assembling your
turnbuckle linkages, apply a small amount of
silicone grease directly to the thread area of each
turnbuckle linkage.
Step 1: Thread the ball cup onto the turnbuckle.
Continue until all the turnbuckle linkage thread is
inside the ball cup shaft.
Step 2: Unthread the ball cup from the turnbuckle
completely. This will fully form the internal thread
pattern inside your ball cup.
Step 3: Thread the ball cup onto the turnbuckle
once again, and continue until you reach the
Step 4: Attach your assembled turnbuckle linkages
the supplied turnbuckle wrench.
.36.
3 3 0 5 9 1 - 2
3 3 0 1 2 9
3 3 0 3 4 3
3 3 0 5 9 1 - 5 / 3 3 0 5 9 1 - 4
1 9 . 5 m m
Front Left Camber Link
1 9 . 5 m m
Front Right Camber Link
2 0 m m
Steering Link (2 Pcs)
Rear Left Camber Link (MM)
Rear Right Camber Link (MM)
Rear Right Camber Link (RM)
Rear Left Camber Link (RM)
3 3 0 5 9 1 - 2
3 3 0 5 9 1 - 2
7 m m
7 m m
7 m m
7 m m
