Team Durango DEX210v2 User Manual page 17

1:1
B H M 3 x 1 0 m m
7 0 5 0 0 5 x 2
RIGHT
B H M 3 x 1 2 m m
7 0 5 0 0 4 x 4
S TO P N U T: M 3 LO W
7 1 5 0 0 1 x 4
NOTE: Right/Left orientation
S h i m 3 x 6 x 0 . 5 m m
7 0 9 0 3 2 x 2
S T E E R I N G K N U C K L E
B U S H I N G
3 4 0 0 0 4 x 4
3 3 0 3 3 9 - 4
P i vo t B a l l C -Ty p e
1 0 m m L o n g
3 3 0 6 0 1 x 4
Thread Lock
.17.
L

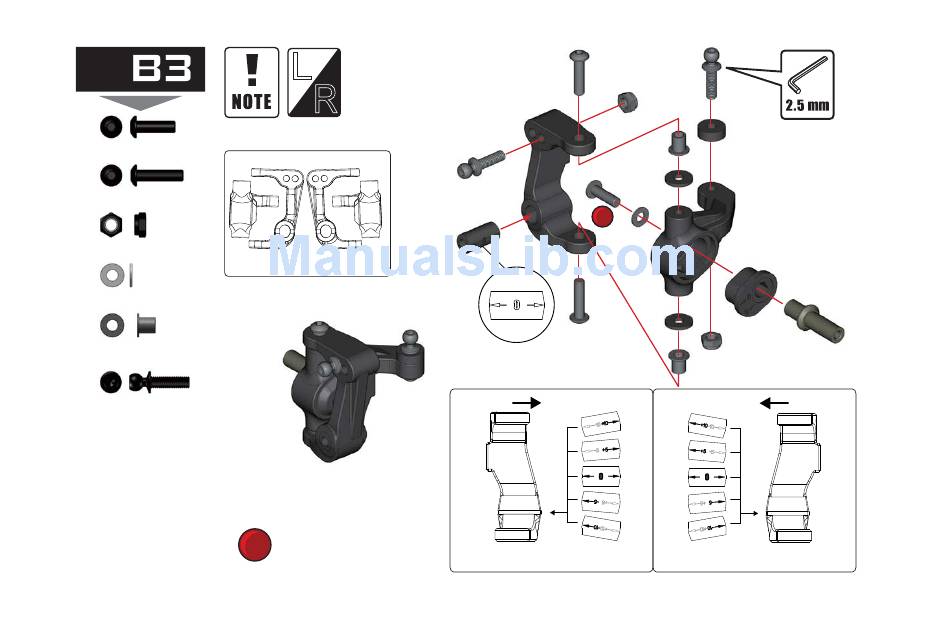

Front Hubs
R
LEFT
3 3 0 6 0 1
3 3 0 3 4 0 - 1 0
R ight
3 3 0 3 3 9 - 2
Total Castor - RIGHT
7 0 5 0 0 4
7 1 5 0 0 1
Le f t
3 4 0 0 0 4
7 0 5 0 0 5
3 3 0 3 6 3 - 1
7 0 9 0 3 2
3 3 0 3 3 9 - 1
3 3 0 3 6 3 - 1
7 0 5 0 0 4
FRONT
35˚
30˚
25˚
20˚
15˚
3 3 0 6 0 1
3 3 0 3 6 3 - 2
2
X
3 3 0 3 3 9 - 3
3 3 0 3 4 0 - 3
3 3 0 3 4 9
7 1 5 0 0 1
3 4 0 0 0 4
FRONT
35˚
30˚
25˚
20˚
15˚
Total Castor - LEFT
