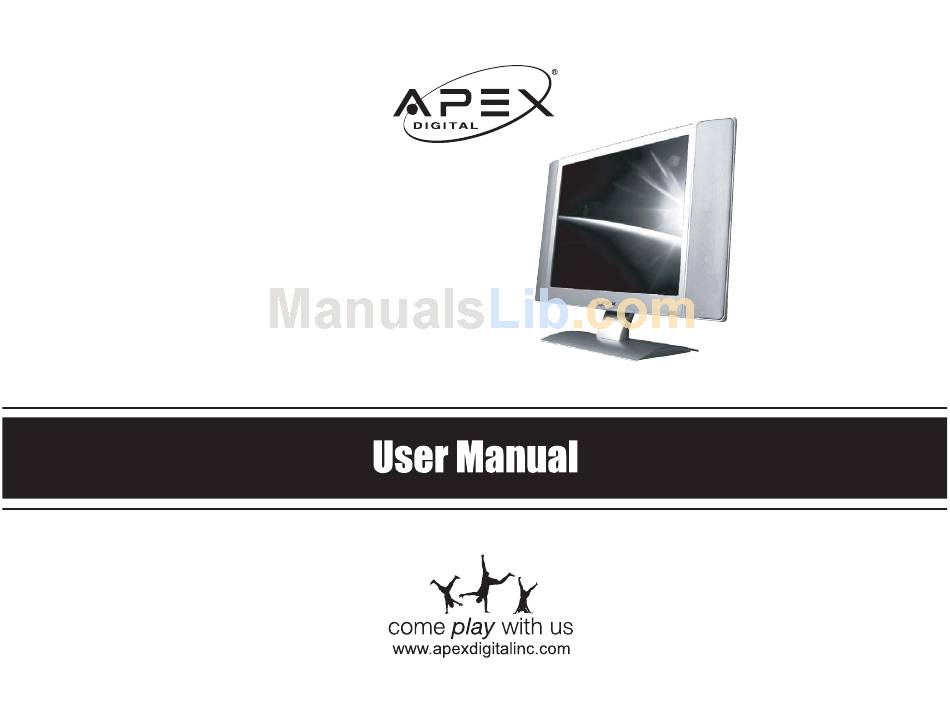

- Page 1 20" LCD TV AVL-2076 Register your product to validate your warranty online...
- Page 2 Important safeguards for you and your new product Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference.
- Page 3 14. Lightning For added protection for this product (receiver) during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
-
Page 4: Regulatory Information
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED PERSONNEL. The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of unin- sulated “dangerous voltage”... -
Page 5: Vga Mode
Congratulations! Thank you for purchasing the Apex Digital AVL2076 20” LCD Television. This LCD TV is designed to be versatile, ergonomic, and easy-to-use. It has a wide variety of inputs for connecting to most any video device you already own. - Page 6 - All functions can be controlled using the remote control. - Some functions can also be adjusted with the buttons on the top panel of the set 1. POWER Turns the LCD display on or off. 2. MTS Cycles through available sound options on certain television programming. 3.
-
Page 7: Installation Instructions
Your remote control requires two “AAA” batteries (included.) INSTALLATION INSTRUCTIONS Remove the rear cover by pressing firm- ly in the middle of the cover and sliding it down, towards to bottom of the remote. Then, lift the cover off of the remote control. - Page 8 These controls are located on the top right of the LCD TV. 1. POWER Press the power button to turn on/off the LCD TV. When the power is on, the LED indicator turns green. The screen image will appear after a few seconds. When the power is off, the LED indicator turns red.
- Page 9 1) TV (RF Jack) For connection of RF cable from antenna or other device 2) AUDIO IN Stereo audio connection for a device connected to AV or S-VIDEO 3) VIDEO IN Composite video connection; shares audio with S- VIDEO IN 4) S-VIDEO IN S-Video connection;...
- Page 10 You can connect external video devices, such as DVD players, VCRs, cable box, camcorders, etc., to your LCD TV. However, please check with your device’s instruction manual for more specific connecting information. Make sure that all devices are unplugged before any connections are made. The diagrams shown may be different from your set.
- Page 11 You can connect external video devices, such as DVD players, VCRs, cable box, camcorders, etc., to your LCD display. However, please check with your device’s instruction manual for more specific connecting information. Make sure that all devices are unplugged before any connections are made. The diagrams shown may be different from your set.
- Page 12 Menu adjustments are available to change the settings of your LCD TV to your preferences. Over the next few pages you will be shown how to adjust all available input sources. Press the MAIN button on the remote until TV mode is displayed. Use selected your desired menu, you may then use the DI SPLAY C ON TRA ST...
- Page 13 Press the MAIN button on the remote until AV or S-VIDEO mode is displayed. Use select each sub menu. Once you’ve selected your desired menu, you may then use the to adjust the settings. DISPLAY C O NTR A ST B R IGH TN ESS C O LOR H U E...
- Page 14 Press the MAIN button on the remote until COMPONENT (YPbPr) mode is displayed. Use sub menu. Once you’ve selected your desired menu, you may then use the D ISPLAY CO N TRA ST BR IGHTN ESS CO LOR HU E SH A R PNESS FOC US RESET</>...
- Page 15 Press the MAIN button on the remote until VGA mode is displayed. Use you’ve selected your desired menu, you may then use the AU TO DI SPLAY CO N TRA S T BR I G HT NE S S CO L O R-T E M P U SER RE D G RE E N...
- Page 16 Press the TV button on the remote then MENU button. Then press Once you’ve selected your desired menu, you may then use the Descriptions Use this to activate the subtitle and teletext function. Each sequential press of the CCD button will show: CCI-CC4, T1-T4, OFF.
- Page 17 To Activate PIP PIP Mode Press PIP on the remote control to Your LCD TV can display a signal activate the PIP feature. input in the main area of the screen, and an auxillary signal input simulta- For example, say you are watching neously.
- Page 18 We encourage you to visit our website at www.apexdigitalinc.com and review the Customer Support and FAQ’s page for updates to this list. You should register to validate your warranty at this website. You can also order accessories for all of your Apex products. Problems Solutions No picture...
- Page 19 Q: Why doesn’t the LCD TV turn on? A: Check the AC power adapter to make sure it is securely connected to the DC-in power jack at the rear of the LCD TV. Make sure the power cord is plugged into a functioning electrical outlet. Q: Why is the power LED on but the screen is blank? A: Make sure the video cable is securely connected to both the LCD TV and the device you have attached.
- Page 20 Pixel Pitch Maximum Display Area Aspect Ratio Native Resolution Display Colors Contrast Ratio Brightness Response Time View Angle Horizontal Frequency Vertical Frequency Signal I/O Ports TV Systems Power Consumption (off) Power Source Speakers Unit Dimensions Net Weight Wall Mount Area Operating Temperature 0.6375 mm (H) x 0.6375 mm (W) 16.1 in.
- Page 21 Limited One (1) Year Warranty Apex Digital warrants the parts in this product against defects in material or workmanship for a period of one (1) year from the date of original purchase with the exception of the remote control and LCD backlight which are guaranteed for 90 days only. During this period Apex Digital will replace a defective part with a new or refurbished part without charge to you.
