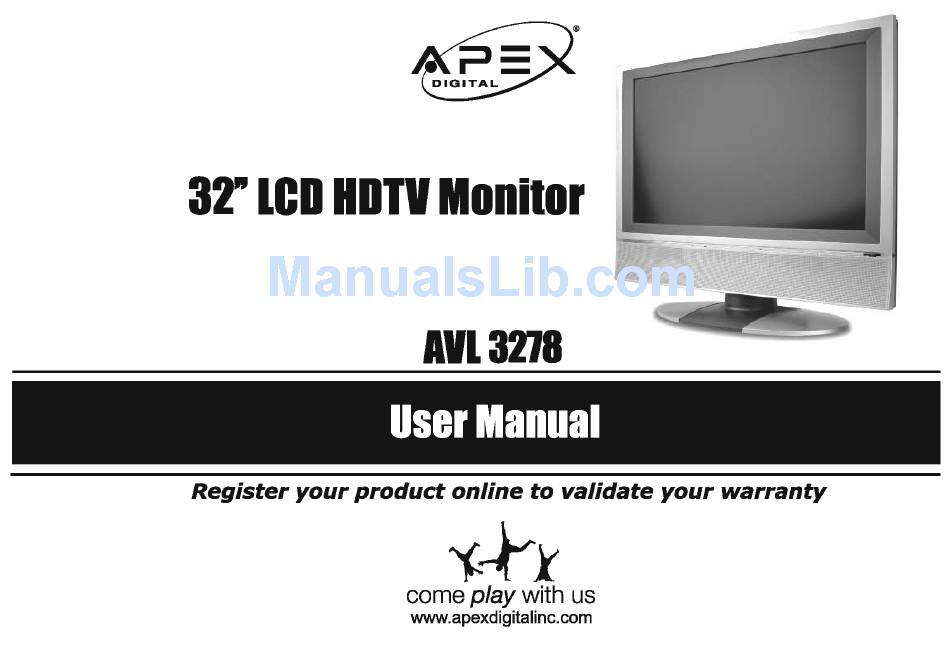

Apex Digital AVL 3278 User Manual

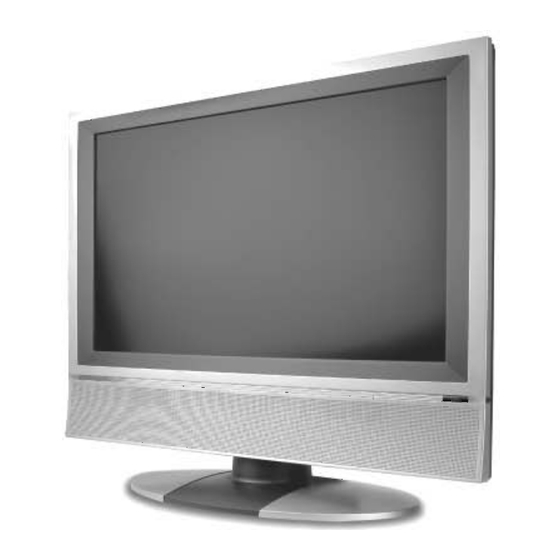

32" lcd hdtv monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVL 3278 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Apex Digital AVL 3278

Summary of Contents for Apex Digital AVL 3278

  • Page 2: Regulatory Information

    WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SER- VICEABLE PARTS INSIDE. REFER TO QUALIFIED PERSONNEL. The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 3 Important safeguards for you and your new product Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future ref- erence.
  • Page 4 11. Power Sources This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to oper- ate from battery power, or other sources, refer to the operating instructions.
  • Page 5 20. Damage Requiring Service Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. If the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product.

  • Page 6: Table Of Contents

    Caution Notice... 2 Safety Instructions...3-5 Remote Control Handset...7-8 Controls...7 Battery installation...8 Controls of Front & Top panel...9 Connections of Back panel...10 Connection to External equipment...11-14 Menu Adjustments...15-19 TV Mode... 15 S-Video / AV Modes... 16 Component (YPbPr1, YPbPr2) Modes... 17 VGA Mode...18 DVI Mode...
  • Page 7 POWER To turn on LCD display. MUTE / OFF Press to turn off the sound. Press again or press volume +/- to restore the original volume. DISPLAY Press to display the current channel on screen. Press to activate closed caption subtitles & teletext where available. FREEZE Press to digitally freeze frame your signal source.

  • Page 8: Remote Control Handset

    Your remote control handset is powered by two AAA type batteries. To insert batteries, turn the remote control over and remove the battery cover. To avoid damage from possible battery leakage, remove the batteries if you do not plan to use the remote control handset for an extended period of time.

  • Page 9: Main Power

    1. MAIN POWER Turn on/off LCD TV. Press the power button in the lower right corner of the television to turn on/off LCD TV. When power is on, the LED indicator turns green, then the screen image will appear in a few seconds. When power is off, the LED indicator turns red.
  • Page 10 YPbPr1 and Audio 1 & YPbPr2 and Audio 2 When connecting to YPbPr(R/L), you can use YPbPr component video sources such as a progressive DVD player, HDTV decoder or satellite receiver to obtain a picture with maximum resolution. For audio sound connect red and white audio cables.

  • Page 11: Back Panel

    You may connect video equipment such as a DVD player, VCR, Cable/Satellite set top-box, camcorder etc. to your LCD TV. However please check with each product’s instruction booklet for specific information. Make sure that all electronics are unplugged before all con- nections are made.
  • Page 12 Connecting Cable Set-Top Box/Video Equipment to Composite Video Input - Connect to video equipment using optional yellow video and red and white audio cables. How to connect Connect from video & audio output jacks on your ext. equipment to the LCD TV inputs labeled “AV IN” & “AUDIO 4” Note: If a 4:3 picture format is displayed, there may be black borders around the image.

  • Page 13: External Equipment

    For Better Performance Connecting Video Equipment to Component Video Input (YPbPr1, YPbPr2) - Connect to equipment using optional component video and red and white audio cables. How to connect Connect from component video (blue, green, red) & audio out- put jacks on your ext. equipment to the LCD TV inputs labeled “YPbPr COMPONENT”...
  • Page 14 Connecting Video Equipment to VGA Input (Digital SET-TOP-BOX, Personal Computer...etc.) - Connect to video equipment using an optional VGA cable and special audio cable. - To watch digitally broadcast programs, you must use a digital cable set-top box or satellite receiver. How to connect Connect from “VGA OUTPUT”...

  • Page 15: Tv Mode,

    Menu adjustments are available to change the settings of your LCD TV to your preferences. Over the next few pages you will be shown how to adjust all available input sources & settings. To select TV mode, press the INPUT button located on the remote or top of the LCD TV panel until chan- nels are displayed.
  • Page 16 Menu adjustments are available to change the settings of your LCD TV to your preferences. To select AV or S-Video mode, press the INPUT button located on the remote or top of the LCD TV panel until desired mode is displayed. Press the MENU button. Use Once you’ve selected your desired sub-menu, press the / buttons and setting, then press Display...
  • Page 17 Menu adjustments are available to change the settings of your LCD TV to your preferences. To select YPbPr1 or YPbPr2 Component modes, press the INPUT button located on the remote or top of the LCD TV panel until desired mode is displayed. Press the MENU button. Use menu.

  • Page 18: Vga Mode

    Menu adjustments are available to change the settings of your LCD TV to your preferences. To select VGA mode, press the INPUT button located on the remote or top of the LCD TV panel until VGA mode is displayed. Press the MENU button. Use Once you’ve selected your desired sub-menu, press the / buttons and setting, then press Display...

  • Page 19: Dvi Mode

    Menu adjustments are available to change the settings of your LCD TV to your preferences. To select DVI mode, press the INPUT button located on the remote or top of the LCD TV panel until DVI mode is displayed. Press the MENU button. Use Once you’ve selected your desired sub-menu, press the / buttons and setting, then press / buttons to adjust.
  • Page 20 suitable for older kids Rating parental guidance required parents should be aware if the programs are suitable for children adults only fantasy and violence some sexual content and dialogue low level of content and profanity Violence To Change Password: MPAA suitable for general audience Rating parental guidance required...
  • Page 21 To Activate PIP PIP Mode While your main signal is on, press PIP INPUT Your LCD TV can display the main signal and an auxillary signal input simultaneously. on the remote control. The PIP signal appears in a small box within the As an example, we will use YPbPr1 mode as screen when the PIP feature is activated.
  • Page 22 View modes are available that allow you to watch normal 4:3 television broadcasts in several different ways to take advantage of the larger 16:9 display area on your LCD TV. Press VIEW repeatedly to access all modes. NOTE: When viewing programming in DVI mode the VIEW feature is not active. Normal 4:3 Mode: returns a standard 4:3 picture to its original size.
  • Page 23 RGB Mode Horizontal MODE Resolution Frequency (KHz) 31.468 640x350 37.861 31.469 720x400 37.927 31.469 37.861 37.500 640x480 43.269 53.011 64.062 35.156 37.879 48.077 46.875 SVGA 800x600 53.674 56.000 64.016 Note: 1. If the LCD TV is brought indoors from a cold environment, you may experience a small “flicker” when the LCD TV is switched on.

  • Page 24: Dvi Mode

    DVI Mode MODE Resolution 640x350 640x400 640x480 SVGA 800x600 Note: Do not press or touch the LCD display with fingers or other objects as this may produce temporary and in some cases permanent abnormalities on the screen. Horizontal Vertical Frequency Frequency MODE (KHz)
  • Page 25 We encourage you to visit our website at www.apexdigitalinc.com and review the customer support and FAQ pages for updates to this list. Register to validate your warranty at our website and order acces- sories for your product. Problems Reasons Did you connect the power cord? No picture Did you turn on power? Is the signal line connected correctly?
  • Page 26 We encourage you to visit our website at www.apexdigitalinc.com and review the customer support and FAQ pages for updates to this list. Register to validate your warranty at our website and order acces- sories for your product. Problems I can’t make ADVANCED adjustments, they are greyed out.
  • Page 27 Display panel TV unit dimension Pedestal Depth Aspect Ratio Number of Pixels Luminance Contrast Response Time Viewing Angle Signal Input / output Video in S-Video in Component in Tuner in Audio in VGA in DVI in RS232 in Audio out Display Mode Compatibility Color system...

  • Page 28: Troubleshooting Guide

    Limited One (1) Year Warranty Apex Digital warrants the parts in this product against defects in material or workmanship for a period of one (1) year from the date of original purchase with the exception of the remote control and LCD backlight which are guaranteed for 90 days only. During this period Apex Digital, Inc. will replace a defective part with a new or refurbished part without charge to you.
