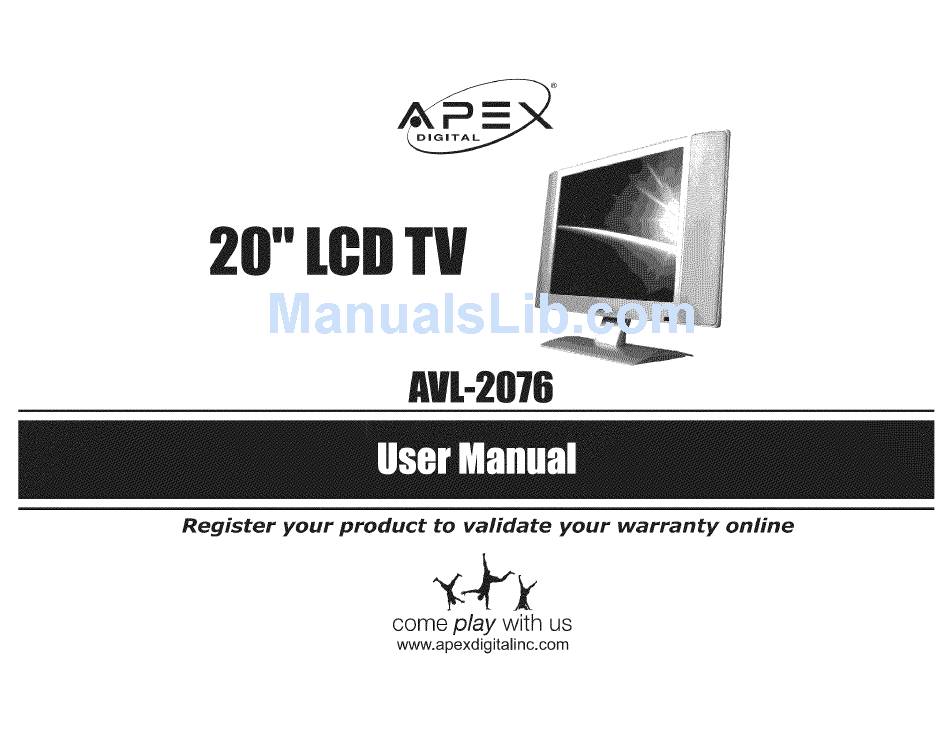

- Page 1 29"LCD FV AVL-2076 Register your product to validate your warranty online come play with us www.apexdigitalinc.com...
- Page 2 yolmportant safeguards for you and your new product ur product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please...
- Page 3 14. L ightning 18. Object and Liquid Entry Foradded protection forthisproduct (receiver) during a lightning storm, Never push objects of any kind into this product through orwhen itisleftunattended and unused f orlong periods oftime, u nplug openings as they may touch dangerous voltage points or itfrom thewall o utlet a nddisconnect theantenna orcable system.
- Page 4 RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED PERSONNEL. sulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of unin- shock to persons.
- Page 5 Warning Co.gratulatio s! Safety Instructions Thank you for purchasing the Apex Digital AVL2076 20" Table of Contents LCD Television. This LCD TV is designed to be versatile, ergonomic, and easy-to-use. It has a wide variety of inputs Remote Control Functions for connecting to most any video device you already own.
- Page 6 - All functions can be controlled using the remote control. - Some functions can also be adjusted with the buttons on the top panel of the set t. POWER Turns the LCD display on or off. 2. MTS Cycles threugh available seund eptiens en certain televisien pregramming, 3.
- Page 7 Your remote control requires two "AAA" batteries (included.) INSTALLATION INSTRUCTIONS Remove the rear cover by pressing firm- Insert the two batteries. Make sure the Replace the rear cover, by grasping it ly in the middle of the cover and sliding positive (÷) and negative (-) signs on the and sliding it upwards, towards the top it down,...
- Page 8 1. POWER Press power button to turn on/off the LCD When the power is on, the LED indicator turns green. The screen image will appear after a few seconds. When the power is off, the LED indicator turns red. 2. INPUT After connecting your...
- Page 9 For connectionof RF cablefrom antennaor other device 2) AUDIO Stereo audio connection for a device connected to AV or S-VIDEO 3) VIDEO Composite video connection; shares audio with S- VIDEO 4) S-VIDEO These inputs are found on the right-hand S-Video connection;...
- Page 10 You can connect external video devices, such as DVD players, VCRs, cable box, camcorders, etc., to your LCD TV. However, please check with your device's instruction manual for more specific connecting information. Make sure that all devices are unplugged before any connections are made. The diagrams shown may be different from your set.
- Page 11 You can connect external video devices, such as DVD players, VCRs, cable box, camcorders, etc., to your LCD display. However, please check with your device's instruction manual for more specific connecting information. Make sure that all devices are unplugged before any connections are made. The diagrams shown may be different from your set.
- Page 12 Menu adjustments are available to change the settings of your LCD TV to your preferences. Over the next few pages you will be shown how to adjust all available input sources. Press the MAIN button on the remote until TV mode is displayed. Use A/v buttons on the 'diamond' to select each sub menu.
- Page 13 Press the MAIN button on the remote until AV or S-VIDEO mode is displayed. Use A/.,. buttons on the 'diamond' to select each sub menu. Once you've selected your desired menu, you may then use the 4 1 _ buttons on the 'diamond' to adjust the settings.
- Page 14 Press the MAIN button on the remote until COMPONENT (YPbPr) mode is displayed. Use A/v buttons on the 'diamond' to select each sub menu. Once you've selected your desired menu, you may then use the 4 1 _ buttons on the 'diamond' to adjust the settings. D_SPLAY AUD]O MISCELLANEOUS...
- Page 15 Press the MAIN button on the remote until VGA mode is displayed. Use -_/,,- buttons on the 'diamond' to select each sub menu. Once you've selected your desired menu, you may then use the 4 1 _ buttons on the 'diamond' to adjust the settings. AUTO GEOME[RIC MISCELLANEOUS...
- Page 16 Press the TV button on the remote then MENU button. Then press _ button once. Use A/v button to select each sub menu. Once you've selected your desired menu, you may then use the 4 / _ buttons to adjust the setting. Directed Towards Older Children Rating Parental Guidance Suggested...
- Page 17 Inorder t ousethePIP feature youmust t akenote oftheinput s elected a sthe main (larger) p icture. Youshould familiarize yourself withthispage as notall inputs c onnected tothetelevision areavailable using thePIP feature. MainSignal PIPSignal To Activate PiP Mode PIP Modes That Function Together are Checked below: Press PIP on the remote control...
- Page 18 Weencourage y outo visitourwebsite atwww.apexdigitalinc.com andreview theCustomer S upport a ndFAQ's pageforupdates to thislist.Youshouldregister t o validate yourwarranty atthiswebsite. Youcanalsoorderaccessories forallofyourApexproducts. Connect power cord correctly. Cannot receive cer- Check for the correct antenna setting (p. 15) No picture Turn on power via the button on LCD TV. tain channels through Use the Channel Scan feature (p.
- Page 19 Q: Why doesn't the LCD TV turn Q: Hew i adjust _tilt", or angle, A: Check the AC power adapter to make sure it is securely connected to A:You can adjust the LCD display viewing angle from an upright position the DC-in power jack at the rear of the LCD TV.
- Page 20 Pixel Pitch 0.6375 mm (H) x 0.6375 mm (W) 16.1 in. (V) x 12.1 in. (t4) (408 mm x 306 mm) Maximum Display Area 20.1 in. diagonally Aspect Ratio Native Resolution 640x480 interlaced or progressive 16.7 million (RGB 8-bit color) Display Colors 500:1...
- Page 21 LCD backlight which are guaranteed for 90 days only. During this period Apex Digital will replace a defective part with a new or refurbished part without charge to you, It is the responsibilty of the consumer to retain original packaging or provide like packaging in order to facilitate the warranty process. Apex Digital, Inc. will incur no liability whatsoever to provide packaging for warranty items.
