REMARK:
This service manual shows only the differences between the model DV8300 and the
model DV8400.
This unit is a modifi ed version adding DVI-D output, RS-232C control terminal to the
DV8300 and making changes that come with the added functions.
All other information is described in the service manual of the model DV8300 (Code
number 02AK855010).
For the dispatch of the after-sales service parts, refer to those service manuals with the
fi rst priority. Therefore, please use this document with referring to the model DV8300
service manual without fail.
SECTION
1. TECHNICAL SPECIFICATIONS ................................................................................................... 1
3. INFORMATIONS ........................................................................................................................... 2
8. WIRING DIAGRAM ....................................................................................................................... 3
9. BLOCK DIAGRAM ........................................................................................................................ 5
10. SCHEMATIC DIAGRAM................................................................................................................ 7
11. PARTS LOCATION...................................................................................................................... 31
12. MICROPROCESSOR AND IC DATA........................................................................................... 36
13. EXPLODED VIEW AND PARTS LIST ......................................................................................... 45
14. ELECTRICAL PARTS LIST ......................................................................................................... 48
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

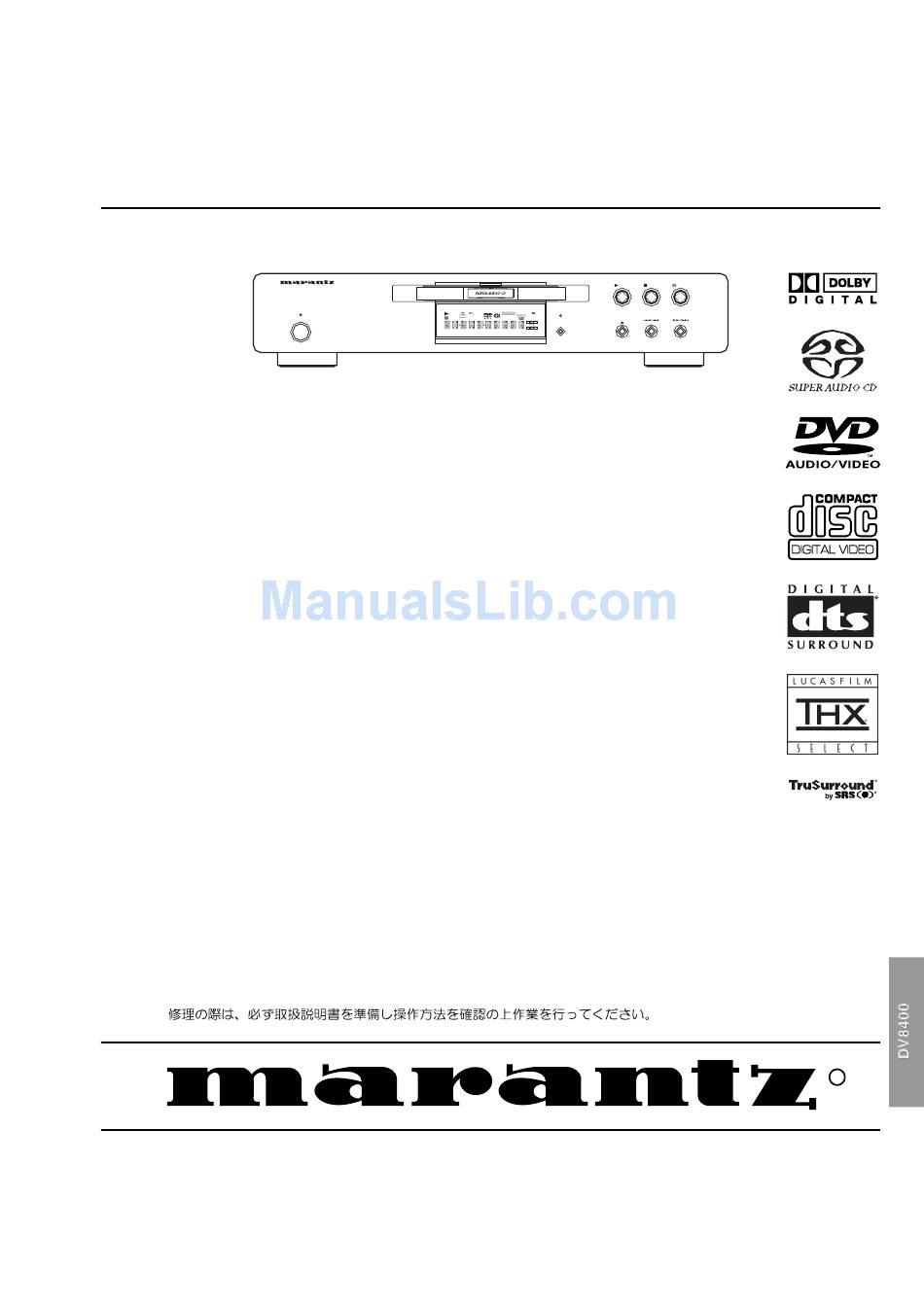

SACD/DVD PLAYER DV8400
