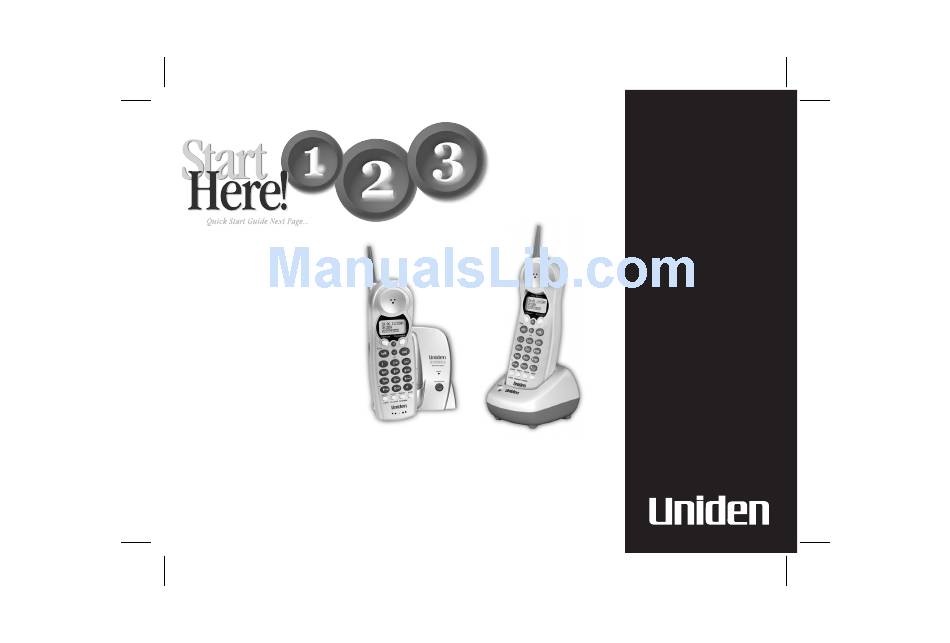

Page 1: Quick Start
900 MHz Caller ID Dual Handset 10 Number Quick Start Memory Plus Guide Rocketdial... -
Page 2: Installation & Safety
INSTALLATION & SAFETY Choosing the best location for your phone. When choosing a location for your phone there are a number of appliances the phone should not be near, and areas you should avoid. CHARGE - the new phone for 20 - 25 hrs. AVOID - Moisture CHOOSE -... -
Page 3: Installing The Base Unit
Installing the Base Unit New Zealand Main Base Plug the telephone cord into the Base Unit, then into Australia Tel Line Adaptor (Not supplied) the telephone socket on the wall. Plug the AC Adaptor cord into the Base Unit, then the AC Adaptor into the wall power point. -
Page 4: Installing The Handset Battery
Installing the Handset Battery Press the battery cover and slide it off. Connect the battery plug to the socket at the rear of the battery compartment. Make sure the plug is the right way round. The RED and BLACK battery wires must match the RED and BLACK printed on the phone case for the plug to fit properly. -
Page 5: Making A Call
Answering a Call Making a Call After fully charging the handsets, remove the handset from the Handset on the Base Unit: Remove the handset from the base and extra charging cradle and place it on the main base. (The status speak ( Auto Talk LED will begin to flash indicating registration is occurring). -
Page 6: Table Of Contents
Contents..................v Call Transfer ................13 Getting Started Rocketdial Rocketdial................14 Controls and Functions .............1 Uniden Company Philosophy ............2 Storing and Editing the Rocketdial ..........14 Welcome/Features ..............2 Making Calls with Rocketdial...........14 Deleting the Rocketdial............14 Included in your Package ............3 Mounting the Base Unit on a wall..........4 Caller ID Battery Maintenance..............5... -
Page 7: Controls And Functions
CONTROLS AND FUNCTIONS 1. Handset antenna 2. Handset earpiece 3. LCD display cid/ menu /flash key talk /< cursor key /pause key redial /channel key 9. Handset microphone and ringer speaker Volume up key Volume down key /> key pause select delete redial channel... -
Page 8: Uniden Company Philosophy
To bring outstanding wireless communication products to people's lives throughout the world. WELCOME Congratulations on your purchase of this Uniden cordless telephone. This is designed for reliability, long life and outstanding performance utilising the latest in 900MHz Technology. FEATURES Multiple Handsets (up to 2)) -
Page 9: Included In Your Package
INCLUDED IN YOUR PACKAGE Make sure you have received the following items in the package. If any of these items are missing or damaged, contact the Uniden Parts Department. AC Adaptor Super Chat Rechargeable Battery pause select delete redial channel... -
Page 10: Mounting The Base Unit On A Wall
MOUNTING THE BASE UNIT ON A WALL Direct wall mounting You can mount your phone directly to the wall. Before doing this, consider the following: • Avoid electrical cables, pipes or other items behind the mounting location that could cause a hazard when inserting screws into the wall. -
Page 11: Battery Maintenance
Battery use time (per charge) Use only the • 9 hours continuous use • 12 days when handset is in the standby mode. genuine Uniden When the Battery charge becomes low Super Chat Battery supplied If the phone is not in use, the ' ' flashes and none of the keys will operate. -
Page 12: Setting Menu Options
SETTING MENU OPTIONS Options available include AutoTalk and Pop Up Name. AUTOTALK AutoTalk allows you to answer the phone without pressing the button. If the phone rings when Autotalk is on, simply remove the handset from the base and the phone automatically answers the call. If the phone rings when Autotalk is off, you must press answer the call. -
Page 13: Making And Receiving Calls
MAKING AND RECEIVING CALLS Handset On Base Handset Off Base/Charger To answer a call Pick up the handset ( Autotalk on ) or pick Press , any number, up the handset and press Autotalk on To make a call 1. Pick up the handset. 1. -
Page 14: Adjusting The Handset Ringer Volume And Earpiece Volume
ADJUSTING THE HANDSET RINGER VOLUME AND EARPIECE VOLUME Handset ringer tone and volume Press in standby mode to select one of five ringer tones and volume combinations. The telephone will keep this setting for all future calls. The transfer ring tone and volume Earpiece Volume can not be... -
Page 15: Selecting A Different Channel
SELECTING A DIFFERENT CHANNEL If you encounter interference while using your phone, you can manually change the phone's channel for clear operation. This function works only when the phone is in use. Press /channel. ' appears on the display, indicating the phone is changing to another channel. Scanning' FIND HANDSET To locate a handset/s (while it's off the base), press... -
Page 16: Memory Dialing
1, the display shows ' '. After about 2 seconds, ' Memory 1 Stored Memory Store Memory Store is displayed. Repeat steps 2-7 to store more numbers. UNIDEN AUS <Memory 2> 8. Press to return to standby mode. Page 10... -
Page 17: Making Calls With Memory Dialing
MAKING CALLS WITH MEMORY DIALING Memory dialing from Standby Mode. UNIDEN AUS JOE BLOGGS 1. Press . The handset displays your programmed memory locations. JOHN DOE 2. Press , or enter the number ( ) to select the memory location you would like to dial. -
Page 18: Editing A Stored Name And/Or Phone Number
EDITING A STORED NAME AND/OR PHONE NUMBER 1. Press and hold ' is displayed. Memory Store 2. Press , or enter a number ( ) to select the memory location you would like to edit. 3. Press . The memory location is displayed. 4. -
Page 19: Call Transfer
CALL TRANSFER CALL TRANSFERS To have the ability to transfer calls from one handset to the other handset: Setup: Remove the first handset from the main base unit. Place the second handset on the main base unit for 5 seconds to initiate the automatic digital code security setting. -
Page 20: Rocketdial
ROCKETDIAL You can store your most frequent dialed number in the Rocketdial location on each handset. The Rocketdial allows you to dial a number with one key press (there is no need to press . The phone will automatically dial the number stored). Memory Location for Rocketdial is... -
Page 21: Caller Id
CALLER ID You must subscribe to a Caller ID service to use these facilities. When the telephone rings, the Caller ID feature allows you to view the caller's name and phone number on the display before you answer the telephone. The handset displays the phone number of the incoming call, the name, time and number of calls. -
Page 22: Viewing The Caller Id Message List
VIEWING THE CALLER ID MESSAGE LIST The Caller ID list stores information for up to 30 incoming calls - even unanswered calls. In Caller ID 1. Press . The summary screen appears. The screen shows the number of new messages and total messages. cid/ operation, if no menu... -
Page 23: Calling A Party From The Caller Id List
CALLING A PARTY FROM THE CALLER ID LIST You can place a call from the Caller ID list. 1. Press . Select the phone number that you want to dial by pressing cid/ menu 2. Press . The displayed phone number dials automatically. DIAL EDIT You can temporarily edit the Caller ID number that is displayed by pressing . -
Page 24: Troubleshooting
• The handset was picked up before the second ring. • The call was placed through a switchboard. • Call your local telephone company to verify your Caller ID service is current. If you still have a problem. Australia: www.uniden.com.au New Zealand: www.uniden.co.nz Page 18... -
Page 25: Memo
MEMO Page 19... - Page 26 MEMO Page 20...
-
Page 27: Warranty
Uniden. (C) Improperly installed, (D) Repaired by someone other than an authorised Uniden Repair Agent for a defect or malfunction covered by this warranty. (E) Used in conjunction with any equipment or parts or as part of a system not manufactured by Uniden, (F) Warranty is only valid in original country of purchase. - Page 28 © Uniden Australia Pty Limited Uniden New Zealand Limited Printed in China UCZZ01422BA...
