Summary of Contents for Uniden XS620

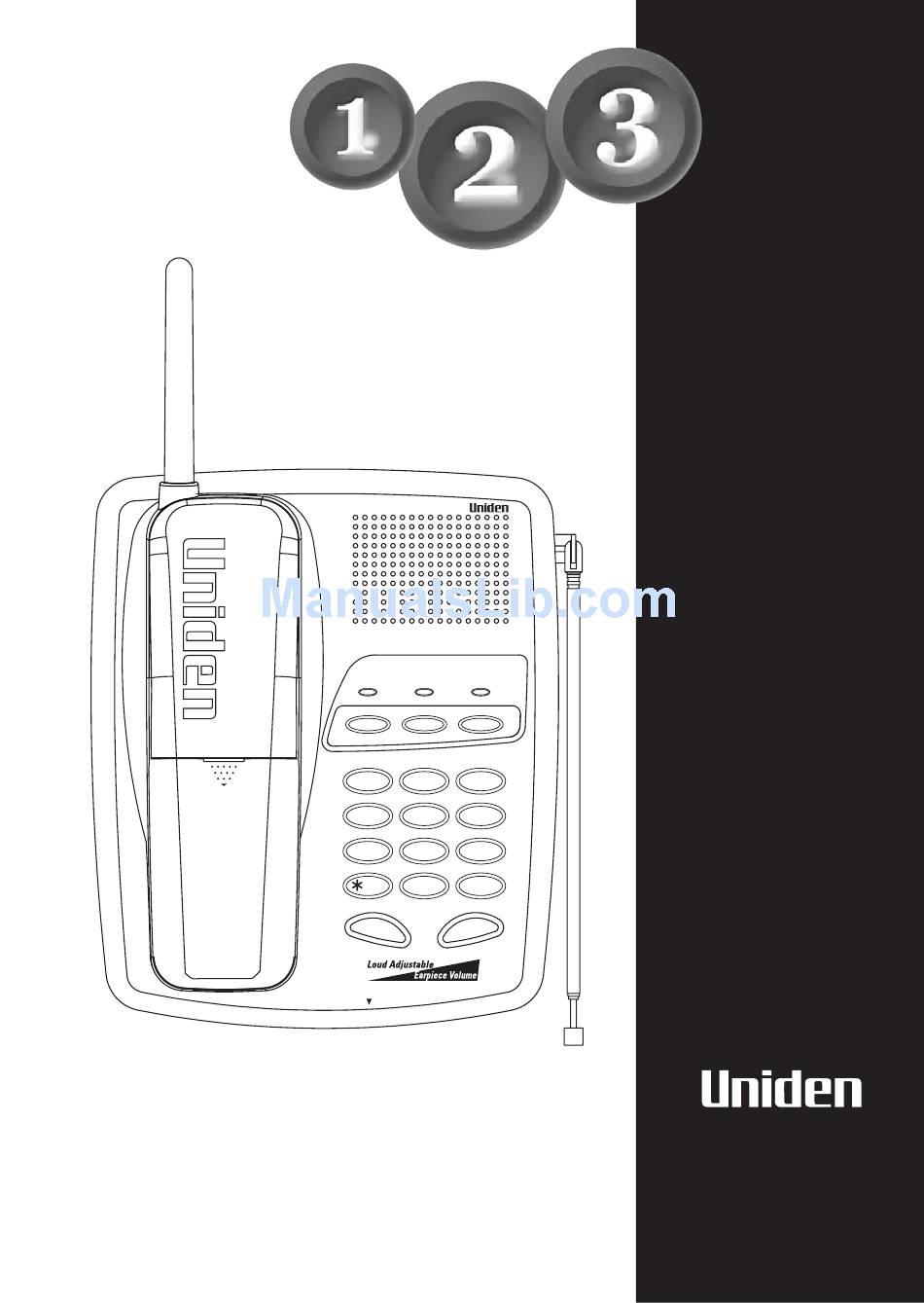

- Page 1 Start Start Here! Here! Quick Start Guide - next page ... XS620 Cordless Telephone with Dual Keypad and Speaker Phone power status speaker pause flash redial pqrs wxyz tone oper page speaker QUICK START GUIDE...
-
Page 2: Installation & Safety
INSTALLATION & SAFETY Choosing the best location for your XS620 This symbol indicates When choosing a location for your phone there are a number of appliances the important operating phone should be not be near, and area you should avoid. -
Page 3: Quick Start Guide
Quick Start Guide Installing the Base Unit CONNECTIONS Plug the telephone cord into the XS620 base unit, then into the telephone socket on the wall. Plug the AC Adaptor cord into the XS620 base unit, then into the power point and switch on. -
Page 4: Installing The Handset Batteries
Installing the Making/Receiving Calls Handset Batteries MAKING A CALL Press battery cover to release. Slide cover off. Press the button. talk speaker Connect the battery plug to the socket Dial the number and make the call. at the rear of the battery compartment. To hang up press the speaker talk... -
Page 5: Table Of Contents
CONTENTS Installation & Safety ......... . i Quick Start Guide Installing the Base Unit . -
Page 6: Included In Your Package
INCLUDED IN YOUR PACKAGE To get the most from your phone, please read this owner’s manual thoroughly. power status speaker talk/batt low redial flash pause flash redial talk Be sure to complete and mail the product pqrs wxyz registration form. pqrs wxyz tone... -
Page 7: Controls & Functions
CONTROLS AND FUNCTIONS talk/batt low redial flash talk pqrs wxyz mem vol/ringer pause chan - answers or places calls - access to call waiting (if waiting) talk flash - stores or recalls numbers in memory Numeric key pad - sets the ringer or earpiece volumes - selects another channel for clearer vol/ringer chan... - Page 8 power status speaker pause flash redial pqrs wxyz tone oper page speaker Handset Retainer Clip - access to Call Waiting flash (if connected) - OFF, LOW, HIGH. Ringer Switch Numeric Keypad - LED indicator. Power Speaker Volume Control Status - LED indicating the phone is in use or the charging.
-
Page 9: Welcome And Features
WELCOME Congratulations on your purchase of the Uniden XS620 Cordless Telephone. This phone is designed to exacting standards which provide reliability, long life, and outstanding performance. FEATURES • 10 Channels (AUST) • Page Button • 25 Channels (NZ) • Handset Volume Ringer Controls •... -
Page 10: Wall Mounting
WALL MOUNTING Mounting Directly on a Wall Select a location away from electrical cables, pipes, or other items behind the Use only the AC mounting location that could cause a hazard when inserting screws into the wall. adaptor supplied with Make sure the wall material is capable of supporting the weight of the base and this phone. - Page 11 Wall Installation Setting the handset Retainer for Wall mounting 1. Remove the handset retainer on the by base sliding it upward. 2. Rotate the retainer 180˚ and flip over so the tab is facing up. 3. Slide the retainer back onto the base.
-
Page 12: Using Your Phone
Battery Use Time (per charge) From fully charged Use only the genuine 6 hours continuous use. Uniden Battery supplied 10 days when the handset is in the standby mode. with your phone. When the Battery Charge becomes Low Replacement batteries are also available If the phone is not in use, ‘Low Battery’... -
Page 13: Making And Receiving The Calls
Making and Receiving Calls The following features of the XS620 phone are different depending on the Handset’s Location when you make or receive a call. Handset on Base Handset off Base Using the Base Answer When the phone rings, Press... -
Page 14: Selecting A Different Channel
Selecting a Different Channel If you encounter interference while using your phone, you can manually change the phone’s channel for clear operation. This function works only when the phone is in use. chan Press , the telephone switches to another channel. Finding the Handset To locate the handset (while it’s off the base), press on the base. -
Page 15: Memory Dialing
MEMORY DIALING Storing a Number in Memory You have 20 seconds Your XS620 phone has 10 memory locations for storing important telephone numbers. after pressing to enter the number 1. Remove the handset from the base and press . The talk/batt low you wish to store. -
Page 16: Chain Dialing
You hear a long beep confirming that you have erased the number. Replacing a Stored Number Remember your XS620 phone has 10 memory locations, represented by the numbers on the keypad. If you store a phone number in one of these locations, then store a different number in the same location later, the new number will replace the previous one. -
Page 17: Troubleshooting
TROUBLESHOOTING If your XS620 Telephone is not performing to your expectations, please try these simple steps. If you are still unable to resolve the problems, contact Uniden Customer Service for assistance. PROBLEM SUGGESTION Make sure the AC adaptor is plugged into the base and Charge light won’t... -
Page 18: Warranty
ELEMENT OF WARRANTY: Uniden warrants to the original retail owner for the duration of this warranty, its XS620 (herein after referred to as the Product), to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below. - Page 19 NOTES For your future reference, please fill in the panel below and attach your Purchase Receipt/Sales Docket. Serial No: __________________________________ (found on the bottom of the product or on the box) Date of Purchase: _____________________________ Name & Address of Dealer : _______________________ ________________________________________ Remote Access Security Code: _____________________...
- Page 20 © 2002 Uniden Australia Pty Limited Uniden New Zealand Limited UDZZ01594ZZ...
