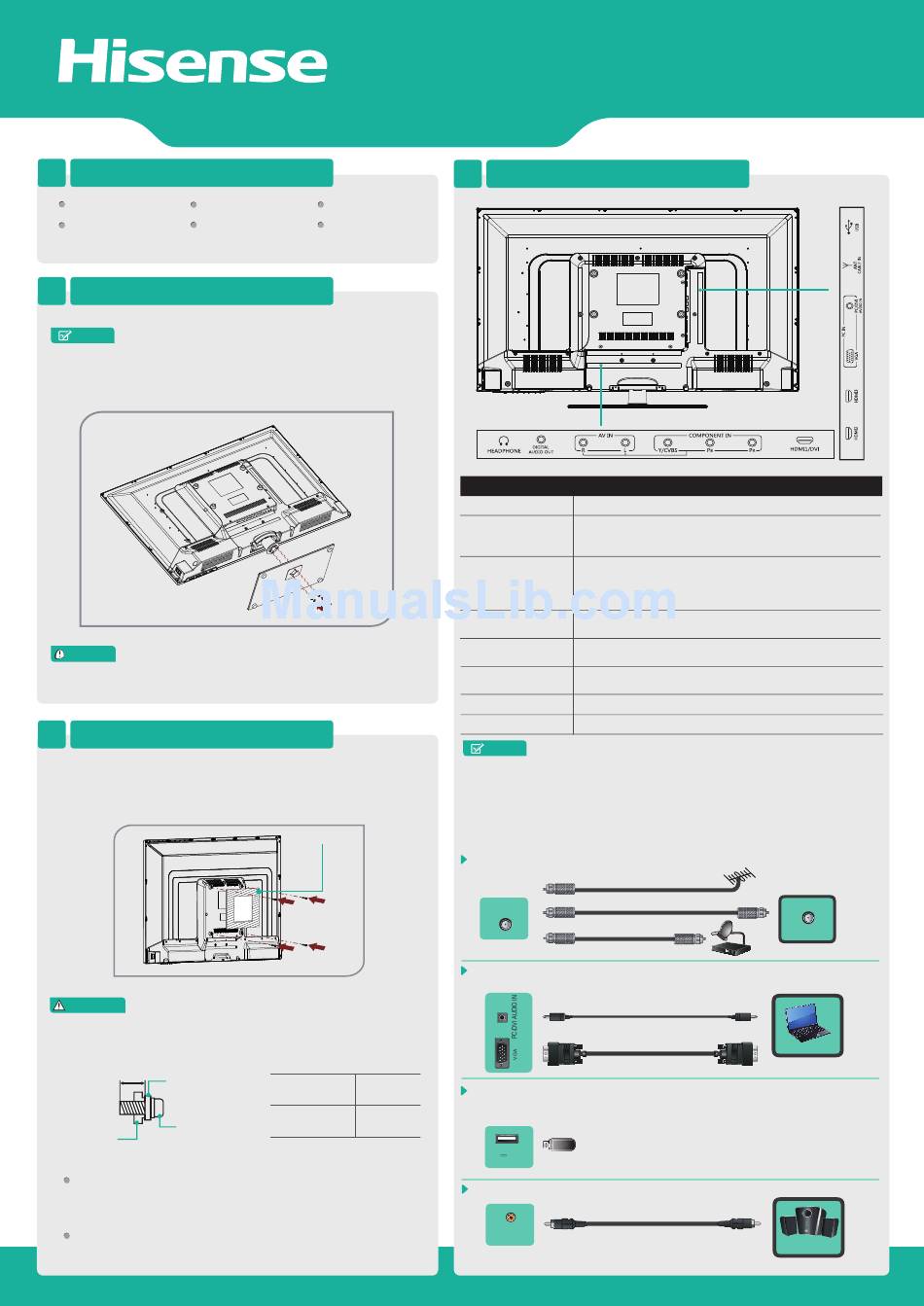

Hisense 32D20 Quick Setup Manual

1

ACCESSORIES LIST

User Manual Quick Setup Guide
Remote Control Battery (AAA) × 2
If the item is not specif ied in the accessories list, it should be provided by customer.
2

INSTALLING THE STAND

NOTE
Product image is only for reference, actual product may vary in appearance.
1. Attach the stand to the TV set as shown in the picture.
2. Use the screws (ST4X12F)X4 to fix the stand tightly.
CAUTION
Carefully place your TV facedown on a soft, cushioned surface to prevent
damage to the TV or scratching to the screen.
3

INSTALLING A WALL-MOUNT BRACKET

1. If you want to attach the TV to a wall-mount bracket (not provided), you should first
remove the stand if it is pre-attached. Make sure the TV is laid face-down on a clean,
safe, and cushioned surface.
2. Attach purchased bracket on the TV with the 4 screws (Not provided) .
WARNING
To prevent internal damage to the TV and ensure the TV is mounted securely, be sure
to use fixing screws (Not provided) which are 7 mm to 9 mm in length when measured
from the attaching surface of the mounting hook.
Screws M4
7~9 mm
Wall-mount Bracket
Screw
the TV's rear cover
3. Follow instructions provided with the wall bracket.
If you are not sure of your ability to complete the installation, contact a
professional installer or service technician for assistance. The manufacturer is
not responsible for any damages or injuries that occur due to mishandling or
incorrect assembly.
Be sure to use the provider spacers between the TV and the bracket when
attaching the mount.
32D20
Important Information
Screw (ST4×12F)×4
Bracket
Screw
Wall-mount hole
200 × 100
pattern VESA
(mm)
Wall-mount screw
M4
size (mm)
QUICK SETUP GUIDE
4

MAKING CONNECTIONS

Item Description
ANT/CABLE IN
Connect an antenna or cable TV to this jack.
HDMI/DVI HDMI (High-Definition Multimedia Interface)provides an uncompressed,
all digital audio/video interface between this TV and any HDMI-device,
such as a set-top box,Blu-ray disc player,or A/V receiver.
Connect to a DVD player, Digital Set-Top-Box, or other A/V devices
COMPONENT IN
with component (YPBPR) video and audio output jacks. Component
audio Jack share with AV IN audio Jack.Support:
480i\480p\576i\576p\1080i\1080p.
Connect to the composite video and audio (L/R) output jacks on
AV IN
external video devices.
VGA
Connect to a PC or other devices with a VGA interface.
PC/DVI AUDIO IN
HEADPHONE Connect headphone or analog sound system using RCA Y-cable(1/8"
-stereo mini to L/R phono-not provided).
DIGITAL AUDIO OUT Connect to an external digital audio device.
USB Photo, Music, Movie play and software update.
NOTE
Some external devices impossible insert to this set for individual difference. Please
replace with appropriate external signal cable or increase the adapter to match with the
port in such case.
Check the jacks' for position and type before making any connections.
Loose connections can result in image or color problems. Make sure
that all connections are tight and secure.
ANT/CABLE Connect to a broadcast antenna or cable TV.
OR
ANT/CABLE
OR
VGA & PC / DVI AUDIO IN
Connect to a personal computer's video and audio output connector.
USB
Connect the USB disk with standard USB 2.0 port to this jack.
Data Input from USB Memory Stick only.
Do not connect any device to this jack such as digital camera, keyboard, mouse, etc.
USB
DC 5V 0.3A(MAX)
DIGITAL AUDIO OUT
Connect a digital audio device to this jack.
DIGITAL
AUDIO OUT
TV Side View
TV Bottom View
VHF/UHF Antenna
Cable
ANT OUT
r.
PC
Speaker
