Santon SPEEDIBOIL SP2.5 Installation And User Instructions Manual

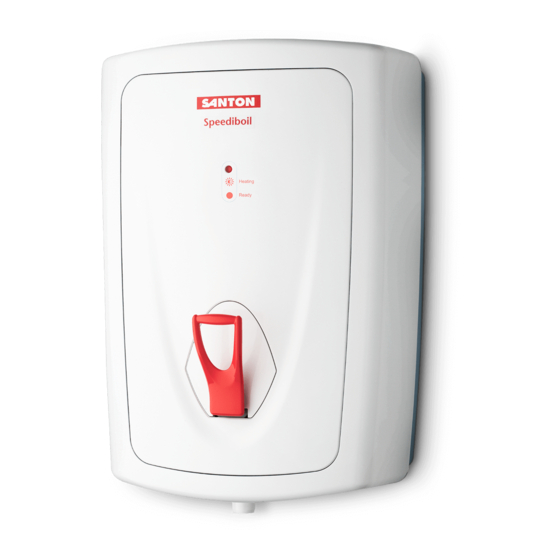

Santon speediboil boiling water heaters
Hide thumbs Also See for SPEEDIBOIL SP2.5:
Table of Contents

Advertisement

Quick Links

SPEEDIBOIL
Installation and User Instructions
Models: SP2.5, SP5.0, SP7.5
Please read and understand these instructions before starting work.
Please leave this leaflet with the user following installation.
WARNING
This Boiling Water Heater must only be installed by
qualified persons.
36006034 Issue 2.
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPEEDIBOIL SP2.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Santon SPEEDIBOIL SP2.5

Summary of Contents for Santon SPEEDIBOIL SP2.5

  • Page 1 SPEEDIBOIL Installation and User Instructions Models: SP2.5, SP5.0, SP7.5 Please read and understand these instructions before starting work. Please leave this leaflet with the user following installation. WARNING This Boiling Water Heater must only be installed by qualified persons. 36006034 Issue 2.

  • Page 2: Component Checklist

    INTRODUCTION Thank you for purchasing a Santon Speediboil . The Boiling water heater is manu- factured to the highest standards and has been designed to meet all the latest relevant safety specifications. This Santon water heater must be installed (Sections 1-5), commissioned (Section 6) and maintained (Sections 7-8) by a competent person.

  • Page 3: Technical Specification

    2.5kW - Speediboil 2.5ltr - 94 200 001 2.5kW - Speediboil 5.0ltr - 94 200 002 2.5kW - Speediboil 7.5ltr - 94 200 003 Electrical rating 2.3/2.5kW@230/240V Nominal capacities Model SP2.5 2.5 litres Model SP5.0 5.0 litres Model SP7.5 7.5 litres Weight (full) Model SP2.5...

  • Page 4: Important Installation Points

    1.0 IMPORTANT INSTALLATION POINTS The Speediboil stores and dispenses water at or close to boiling point at all times it is switched on. Due caution must be taken when choosing a location for the product to minimise misuse. Locate the unit over a draining board NOT over the sink or basin.

  • Page 5: Installation - Mounting

    2.0 INSTALLATION - MOUNTING The Speediboil must be vertically wall mounted using the bracket supplied. Fig.1 details the outside dimensions of the Speediboil unit. It is recommended that the unit is positioned above the draining board. If this is not possible consideration should be given to any spillages that may occur under the appliance.
  • Page 6 Fixing Bracket Fixing Hole Worktop Figure 1 MODEL DIMENSIONS (mm) INLET VENT INLET/ CABLE INLET/ VENT ENTRY VENT SP2.5 SP5.0 SP7.5...

  • Page 7: Installation - Water Supply

    CABLE FIXING FIXING BRACKET BRACKET BRACKET OUTLET ENTRY POINT POINT SP2.5 52.5 SP5.0 SP7.5 3.0 INSTALLATION - WATER SUPPLY Select appropriate push fit connector for chosen entry position: Bottom entry water - 15mm x 15mm 90º elbow. Rear entry water - 15mm x 15mm straight.

  • Page 8: Installation - Electrical Requirements

    5.0 INSTALLATION - ELECTRICAL REQUIREMENTS WARNING: This appliance must be earthed. The installation, supply cable and circuit protection must conform to the latest BS7671 ‘Requirements for electrical installations’ (IEE Wiring Regulations). The appliance must only be connected to a 230/240 V ac supply. A double pole isolating switch, with a contact separation of at least 3mm in both poles, must be incorporated in the electrical supply.
  • Page 9 6.0 COMMISSIONING The electronic control system of the Speediboil has a self commissioning and calibration function. Once the heater is installed and all services have been connected the appliance should require no further adjustment before use. Check that all electrical, water and vent pipe connections have been made and are secure.

  • Page 10: Maintenance

    The front cover and spout will require a periodic wipe to clean any marks/ splashes from use. 8.0 FAULT FINDING YOUR SANTON SPEEDIBOIL SHOULD GIVE TROUBLE FREE OPERATION, HOWEVER SHOULD A FAULT OCCUR THE TABLE BELOW SHOULD ALLOW MOST FAULTS TO BE IDENTIFIED. FAULT FINDING SHOULD ONLY BE CAR- RIED OUT BY A COMPETENT PERSON.
  • Page 11 3. Steam thermistor out of 3. Check values (5Kohms at 100°C, calibration 100Kohms at 25°C) For any faults that cannot be identified using the Fault Finding chart please contact the Santon After Sales Service, telephone (08448) 711530, fax (08448) 711528.

  • Page 12: Spare Parts

    9.0 SPARE PARTS The following comprehensive list of spare parts is available for your Santon Speediboil water heater. Please refer to the rating label on the right hand side of your heater before ordering to ensure the correct spare parts are obtained.
  • Page 14 10.0 USER INSTRUCTIONS 10.1 Once installed the filling and the heating cycles of the Speediboil are completely automatic. 10.2 To dispense water, place a suitable container under the outlet spout and pull the tap handle down and towards (or pushed away) the user. The water dispensed will at all times be boiling or close to boiling point so due caution must be taken when using the product.

  • Page 15: Environmental Information

    This guarantee in no way affects the statutory rights of the consumer. The policy of Santon is one of continuous product development and, as such, we reserve the right to change specifications without notice.
  • Page 16 Tel: 0117 961 6670 William Wilson Ltd. Unit 3A, 780 South Street Whiteinch, Glasgow, G14 OSY Tel: 0141 434 1530 Hurricane Way, After Sales Tel: (08448) 711530 Norwich, After Sales Fax: (08448) 711528 Norfolk, NR6 6EA. ServiceEmail: santonservice@ www.santon.co.uk heateam.co.uk © 2009...

This manual is also suitable for:

Speediboil sp7.5Speediboil sp5.0
