E N G I N E E R I N G D A T A
MODEL NUMBER IDENTIFICATION
Refrigerant Type
X = R−410A
P = Heat Pump
X
P 16 036
Unit Type
Series
H E A T P U M P O U T D O O R U N I T S
Cooling Capacity − 23,200 to 58,500 Btuh
Heating Capacity − 21,200 to 54,000 Btuh
−
−
230
−
2
Nominal Cooling Capacity
024 = 2 tons
036 = 3 tons
048 = 4 tons
060 = 5 tons
ELITE
R−410A − Two−Stage Compressor
SEER − up to 17.0
Minor Revision Number
Voltage
230 = 208/230V−1ph−60hz
XP16
®
SERIES
Bulletin No. 210463
May 2008
Supersedes June 2007
2 to 5 Tons
Advertisement
Table of Contents
Related Manuals for Lennox XP16?024
Summary of Contents for Lennox XP16?024
-
Page 1: Model Number Identification

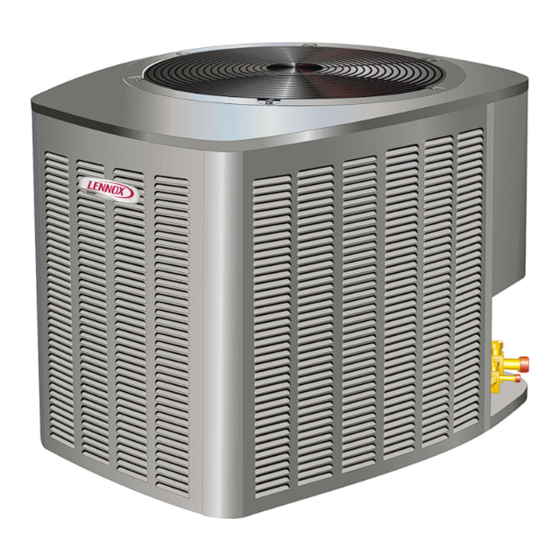

H E A T P U M P O U T D O O R U N I T S XP16 ® ELITE SERIES R−410A − Two−Stage Compressor E N G I N E E R I N G D A T A Bulletin No. -
Page 2: Table Of Contents
Approvals Certified in accordance with USE certification program which is based on ARI Standard 210/240−2005. Sound rated in Lennox reverberant sound test room in accordance with test conditions included in ARI Standard 270−95. Tested in the Lennox Research Laboratory environmental test room. - Page 3 REFRIGERATION SYSTEM (CONTINUED) Refrigerant lines (suction & liquid) are shipped Copper Tube/Enhanced Fin Coil refrigeration clean. Lines are cleaned, dried, pressurized, Lennox designed and fabricated coil. and sealed at factory. Ripple−edged aluminum fins. Suction line fully insulated. Copper tube construction.
- Page 4 FEATURES Mild Weather Kit COMPRESSOR (CONTINUED) Heat pump units operate satisfactorily in the heating Crankcase Heater mode at outdoor air temperatures up to 75_F. Crankcase heater prevents migration of liquid refrigerant Mild Weather Kit can be field installed, allowing heating into compressor and ensures proper compressor operation above 75_F.
-
Page 5: Electrical Data
SPECIFICATIONS General Model No. XP16−024 XP16−036 XP16−048 XP16−060 Data Nominal Tonnage Connections Liquid line (o.d.) − in. (sweat) Vapor line (o.d.) − in. 1−1/8 Refrigerant R−410A charge furnished 7 lbs. 13 oz. 10 lbs. 4 oz. 15 lbs. 7 oz. 11 lbs. -
Page 6: Dimensions
DIMENSIONS − INCHES (MM) SUCTION LINE CONNECTION LIQUID LINE CONNECTION TOP VIEW DISCHARGE AIR LIQUID LINE CONNECTION ELECTRICAL INLETS SUCTION LINE CONNECTION 2 (51) 4−3/4 4−1/4(108) (121) 1 (25) SIDE VIEW END VIEW UNIT SUPPORT UNIT SUPPORT FEET FEET 8−1/2 9−1/2 (216) (241) -
Page 7: Field Wiring
SWITCH OPTIONAL Fourteen Wire Low Voltage with Optional Outdoor Thermostat (By Others) OUTDOOR THERMOSTAT Eight Wire Low Voltage 18 ga. minimum LENNOX INDOOR UNIT THERMOSTAT Ten Wire Low Voltage with Optional Outdoor Thermostat (Optional) LENNOX Field Wiring Not Furnished OUTDOOR UNIT All wiring must conform to NEC or CEC and local electrical codes. -
Page 8: Ari Indoor Coil / Air Handler Substitutions
ARI RATINGS − INDOOR COIL / AIR HANDLER SUBSTITUTION Substituting Coils in the ARI Tables Most R−22 and R−410A indoor coils and air handlers are The expansion device is based on the size of the outdoor the same except for the factory installed expansion unit. -
Page 9: Ari Ratings
ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N Device High HSPF High Low High Low High High Cooling Cooling Temp. Cool Cool Temp Temp Temp. - Page 10 ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N High HSPF Device High Low High Low High High Cooling Temp. Temp Temp Temp. Cooling Cool Cool Heat Heat...
- Page 11 ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N High HSPF Device High Low High Low High High Cooling Temp. Temp Temp Temp. Cooling Cool Cool Heat Heat...
- Page 12 ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N Device High HSPF High Low High Low High High Cooling Cooling Temp. Temp Temp Temp. Cool Cool Heat Heat...
- Page 13 ARI RATINGS ARI Standard 210/240 Ratings Capacity − Btuh Efficiency Total Watts Expansion Expansion Indoor Unit Model No. U it M d l N Device High HSPF High Low High Low High High Cooling Cooling Temp. Cool Cool Temp Temp Temp.
- Page 14 REVISIONS Sections Description of Change ARI Ratings New rating for XP16−048 with CX34−62D coil and CX34−62D coils with furnaces. ARI Ratings Removed CB30U ratings ARI Ratings Add ratings with G71MPP furnaces.
- Page 16 Contact us at 1−800−4−LENNOX NOTE − Due to Lennox’ ongoing committment to quality, Specifications, Ratings and Dimensions subject to change without notice and without incurring liability. Improper installation, adjustment, alteration, service or maintenance can cause property damage or personal injury.
