Summary of Contents for Airwell CADE024

Page 1 YUDE Series Indoor Units Outdoor Units CADE0 24 DBDE024 FADE024 YUDE024 CADE030 DBDE030 FADE030 YUDE030 CADE036 DBDE036 FADE036 YUDE036 CADE036 DBDE036 FADE036 YUDE036T REFRIGERANT HEAT PUMP R410A June-2013 SM YUDE 1-A.1 GB Version:1...
Page 2 LIST OF EFFECTIVE PAGES Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page (when none indicates no changes in the relevant page). All pages in the following list represent effected/ non effected pages divided by chapters. Dates of issue for original and changed pages are: Total number of pages in this publication is 117 consisting of the following: Total number of pages in this publication is 117 consisting of the following:...
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION ..........................1-1 2. PRODUCT DATA SHEET ........................2-1 3. RATING CONDITIONS ........................3-1 4. OUTLINE DIMENSIONS ........................4-1 5. PERFORMANCE DATA ........................5-1 6. AIRFLOW CURVES...........................6-1 7. ELECTRICAL DATA .......................... 7-1 8. WIRING DIAGRAMS .........................8-1 9. REFRIGERATION DIAGRAMS ......................9-1 10. TUBING CONNECTIONS ........................10-1 11.
Page 4: Introduction
1—INTRODUCTION INTRODUCTION General The YUDE series DC inverter is major designed for light commercial air-conditioning needs with the DC inverter technology, this series of products provides the most comfort and energy saving. This new line come with the comply to the new ECO Design regulation of 2014.

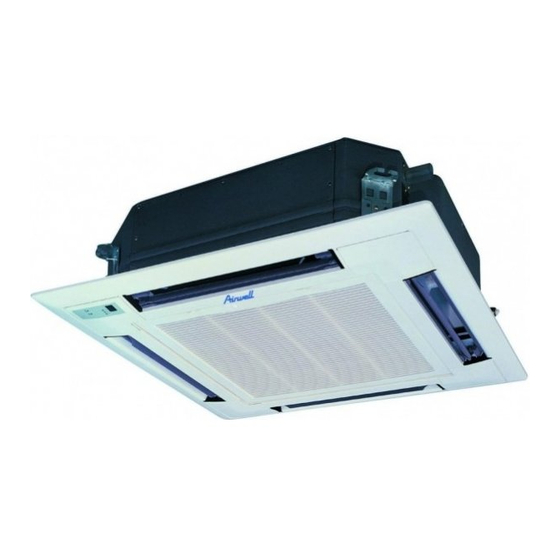

Page 5 1—INTRODUCTION 1.3. Indoor Unit The CADE indoor unit is ceiling mounted, the FADE indoor unit is ceiling or ﬂ oor mounted, the DBDE indoor unit is a low silhouette ducted unit and can be easily ﬁ tted to many types of residential and commercials applications. It includes: •...
Page 6: Outdoor Unit
1—INTRODUCTION Outdoor Unit The outdoor units can be installed as ﬂ oor or wall mounted units by using a wall supporting bracket. The metal sheets are protected by anti- corrosion paint work allowing long life resistance. All outdoor units are pre-charged. For further information please refer to the Product Data Sheet, Chapter 2.
Page 7: Outdoor Units
1—INTRODUCTION 1.10 Matching Table INDOOR UNITS AWSI-DBDE024-N11 AWSI-DBDE030-N11 AWSI-DBDE036-N11 OUTDOOR UNITS AWSI-CADE024-N11 AWSI-CADE030-N11 AWSI-CADE036-N11 AWSI-FADE024-N11 AWSI-FADE030-N11 AWSI-FADE036-N11 AWAU-YUDE024-H11  AWAU-YUDE030-H11  AWAU-YUDE036-H11  AWAU-YUDE036-H13  SM YUDE 1-A.1 GB | 1—4...
Page 8: Product Data Sheet
2—PRODUCT DATA SHEET PRODUCT DATA SHEET AWSI-DBDE024-N11 // AWAU-YUDE024-H11 Model Indoor Unit AWAU-DBDE024-N11 Model Outdoor Unit AWAU-YUDE024-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 7,0(2,2-8,5) 8,0(2,4-9,5) Pdesign SEER / SCOP Energy efﬁ ciency class Annual energy consumption 2579 Tbiv Power supply...
Page 9 2—PRODUCT DATA SHEET AWSI-FADE024-N11 // AWAU-YUDE024-H11 Model Indoor Unit AWAU-FADE024-N11 Model Outdoor Unit AWAU-YUDE024-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 7,0(2,4-8,2) 8,0(2,4-9,0) Pdesign SEER / SCOP Energy efﬁ ciency class Annual energy consumption 2579 Tbiv Power supply V/Ph/Hz 220-240V/Single/50Hz...
Page 10 2—PRODUCT DATA SHEET AWSI-CADE024-N11 // AWAU-YUDE024-H11 Model Indoor Unit AWAU-CADE024-N11 Model Outdoor Unit AWAU-YUDE024-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 7,0(2,4-8,5) 8,0(2,4-9,5) Pdesign SEER / SCOP Energy efﬁ ciency class Annual energy consumption 2653 Tbiv...
Page 11 2—PRODUCT DATA SHEET AWSI-DBDE030-N11 // AWAU-YUDE030-H11 Model Indoor Unit AWAU-DBDE030-N11 Model Outdoor Unit AWAU-YUDE030-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 8,3(2,4-8,7) 9,2(2,4-9,9) Pdesign SEER / SCOP Energy efﬁ ciency class Annual energy consumption 2800 Tbiv Power supply V/Ph/Hz 220-240V/Single/50Hz...
Page 12 2—PRODUCT DATA SHEET AWSI-FADE030-N11 // AWAU-YUDE030-H11 Model Indoor Unit AWAU-FADE030-N11 Model Outdoor Unit AWAU-YUDE030-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 8,5(2,6-9,2) 9,2(2,4-9,9) Pdesign SEER / SCOP Energy efﬁ ciency class Annual energy consumption 2800 Tbiv Power supply V/Ph/Hz 220-240V/Single/50Hz...
Page 13 2—PRODUCT DATA SHEET AWSI-CADE030N11 // AWAU-YUDE030-H11 Model Indoor Unit AWAU-CADE030-N11 Model Outdoor Unit AWAU-YUDE030-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 8,3(2,6-9,2) 9,2(2,4-9,9) Pdesign SEER / SCOP Energy efﬁ ciency class Annual energy consumption 2800 Tbiv Power supply V/Ph/Hz 220-240V/Single/50Hz...
Page 14 2—PRODUCT DATA SHEET AWSI-DBDE036-N11 // AWAU-YUDE036-H11 Model Indoor Unit AWAU-DBDE036-N11 Model Outdoor Unit AWAU-YUDE036-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 10,0(3,2-11,5) 12,0(2,9-14,5) Pdesign 10,0 10,4 SEER / SCOP Energy efﬁ ciency class Annual energy consumption 3832 Tbiv Power supply...
Page 15 2—PRODUCT DATA SHEET AWSI-FADE036-N11 // AWAU-YUDE036-H11 Model Indoor Unit AWAU-FADE036-N11 Model Outdoor Unit AWAU-YUDE036-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 10,0(3,2-11,5) 12,0(2,9-14,5) Pdesign 10,0 10,4 SEER / SCOP Energy efﬁ ciency class Annual energy consumption 3832 Tbiv Power supply...
Page 16 2—PRODUCT DATA SHEET AWSI-CADE036-N11 // AWAU-YUDE036-H13 Model Indoor Unit AWAU-CADE036-N11 Model Outdoor Unit AWAU-YUDE036-H11 Installation Method of Pipe Flared Heating Characteristics Units Cooling Average Capacity 10,0(3,2-11,5) 12,0(2,9-14,5) Pdesign 10,0 10,4 SEER / SCOP Energy efﬁ ciency class Annual energy consumption 3832 Tbiv Power supply...
Page 17: Rating Conditions
3—RATING CONDITIONS RATING CONDITIONS Rating conditions in accordance with ISO 5151 and ISO 13253 (for ducted units). Cooling: Indoor: C DB 19 C WB Outdoor: 35 C DB Heating: Indoor: C DB Outdoor: 7 C DB 6 C WB Operating Limits R410A Indoor Outdoor...
Page 18: Outline Dimensions
4—OUTLINE DIMENSIONS OUTLINE DIMENSIONS CADE024-030-036 Unit:mm Model CADE024 CADE030/036 DBDE 024-030-036 Unit: mm DBDE024 1101 1159 1239 1002 DBDE030 1101 1159 1239 1002 DBDE036 1011 1115 1226 4—1 | SM YUDE 1-A.1 GB...
Page 19 4—OUTLINE DIMENSIONS FADE024-030-036 Unit: mm Model FADE024 1220 1158 FADE030 1420 1354 FADE036 1420 1354 SM YUDE 1-A.1 GB | 4—2...
Page 20 4—OUTLINE DIMENSIONS Outdoor Unit: Unit: mm Model YUDE024 YUDE030 YUDE036 1107 1100 4—3 | SM YUDE 1-A.1 GB...
Page 21: Performance Data
5—PERFORMANCE DATA PERFORMANCE DATA SM YUDE 1-A.1 GB | 5—1...
Page 22: Airflow Curves
6—AIRFLOW CURVES AIRFLOW CURVES Model: AWSI-DBDE024-N11 Nominal System Curve Max System Curve Airflow Vs. External Static Pressure High speed Medium Speed Low Speed Operating Range Performance test point at 50 Pa 1000 1200 1400 1600 1800 Airflow Rate,(m ³/ hr) Model: AWSI-DBDE030-N11 Nominal System Curve Airflow Vs.
Page 23 6—AIRFLOW CURVES Model: AWSI-DBDE036-N11 Nominal System Curve Max System Curve Airflow Vs. External Static Pressure High speed Medium Speed Low Speed Operating Range Performance test point at 50 Pa 1200 1400 1600 1800 2000 2200 2400 2600 Airflow Rate,(m ³/ hr) SM YUDE 1-A.1 GB | 6—2...
Page 24: Electrical Data
7—ELECTRICAL DATA ELECTRICAL DATA MODEL AWAU-YUDE024-H11 AWAU-YUDE030-H11 AWAU-YUDE036-H11 AWAU-YUDE036-H13 Separately Power Supply 1~/220-240V/50Hz 3~/380-415V/ 50Hz Capability of Air Switch(A) (Indoor) Capability of Air Switch(A) (Outdoor) Power Supply Wiring No. X Cross Section 3x4.0mm2 5x2.5mm2 (ODU) Power Supply Wiring No. X Cross Section 3 x1.5mm2 (IDU) Interconnecting Cable...
Page 25: Wiring Diagrams
8—WIRING DIAGRAMS WIRING DIAGRAMS AWAU-YUDE024-H11, AWAU-YUDE030-H11 SM YUDE 1-A.1 GB | 8—1...
Page 26 8—WIRING DIAGRAMS AWAU-YUDE036-H11 8—2 | SM YUDE 1-A.1 GB...
Page 27 8—WIRING DIAGRAMS AWAU-YUDE036-H13 (TBD) SM YUDE 1-A.1 GB | 8—3...
Page 28 8—WIRING DIAGRAMS AWSI-CADE024/030/036-N11 8—4 | SM YUDE 1-A.1 GB...
Page 29 8—WIRING DIAGRAMS AWSI-FADE024/030/036-N11 SM YUDE 1-A.1 GB | 8—5...
Page 30 8—WIRING DIAGRAMS AWSI-DBD024/030/036-N11 8—6 | SM YUDE 1-A.1 GB...
Page 31: Refrigeration Diagrams
9—REFRIGERATION DIAGRAMS REFRIGERATION DIAGRAMS Note: CTT: Compressor Discharging Temperature Sensor OCT: Outdoor Coil Temperature Sensor OAT: Outdoor Air Temperature Sensor ICT: Indoor Coil Temperature Sensor RAT: Room Air Temperature Sensor SM YUDE 1-A.1 GB | 9—1...
Page 32: Tubing Connections
10—TUBING CONNECTIONS TUBING CONNECTIONS When the outdoor unit is installed above the indoor unit an oil trap is required every 5m along the suction line at the lowest point of the riser. In case the indoor unit is installed above the outdoor, no trap is required. 10—1 | SM YUDE 1-A.1 GB...
Page 33: Control System
11—CONTROL SYSTEM CONTROL SYSTEM 11.1 Electronic Control 11.1.1 Abbreviations Abbreviation Deﬁ nition Air Condition Building Management System System Power Compressor Top Temperature sensor DC Inverter Electronic Expansion Valve Heating Element Human Machine Interface Heat Sink Temperature sensor Hertz (1/sec) – electrical frequency Indoor Coil Temperature (RT2) sensor Indoor Unit Micro Controller Unit...
Page 34 11—CONTROL SYSTEM 1. P control Calculate ΔD value in each sampling time (20 seconds), and adjust the frequency according to its difference from the frequency previously calculated. 2. I control If the operating frequency is not change more than a certain ﬁ xed time, adjust the frequency up and down according to the ΔD value.
Page 35: Outdoor Fan Control
11—CONTROL SYSTEM 11.1.4 Indoor Fan Control 4 Indoor fan speeds are determined for each model. In high/ medium/ low indoor fan user setting, unit will operate fan in selected speed. In Auto Fan user setting, fan speed will be adjusted automatically according to the difference between actual room temperature(RAT) and user set point temperature(SPT).
Page 36: Fan Mode
11—CONTROL SYSTEM 11.1.7 Reversing Valve (RV) Control Reversing valve is on in heat mode. RV ON will delay 10 sec when compressor is ON and Switching of RV state is done only after compressor is off for over 2 minutes. 11.2 Fan Mode In this mode, the indoor fan may run at high,medium,low and automatic speed.
Page 37: Heat Mode
11—CONTROL SYSTEM 11.4 Heat Mode If Load >0, the unit will operate in heating mode. The compressor, outdoor fan and 4-way valve will operate and the indoor fan will delay 1’30” to start at the latest If LoadAT≤0, the compressor will stop operation and the outdoor fan will delay 60 seconds to stop. And the indoor fan will blow for 60s at low fan speed for cassette and ﬂ...
Page 38: Dry Mode
11—CONTROL SYSTEM 11.6 Dry Mode The dry mode is basically same as cooling mode. The difference is that: a) The indoor fan is ﬁ xed at low speed. b) Max. Capacity output: A×90% 11.7 Oil return When the unit is operating in low frequency for long time, the compressor will be forced to decrease frequency for 4 min to make sure the oil, which accumulated into the system, back to compressor.
Page 39 11—CONTROL SYSTEM 11.8.1 Indoor Coil Defrost Protection Conditions for Start Controlling Judge the controlling start with the ICT (Indoor Coil Temperature) in cool and dry mode after compressor is on for 15min to allow the operating frequency limitation and then prevent freezing of the indoor heat exchanger.
Page 40 11—CONTROL SYSTEM 11.8.5.1 Deicing Starting Conditions The starting conditions must be made with the outdoor air temperature (OAT) and outdoor coil temperature (OCT). Under the conditions that the system is in heating operation, after the time for defrosting is judged to be satisﬁ ed, if the temperature for deicing is satisﬁ ed after detections for continuous 3minutes, the deicing operation will start.
Page 41 11—CONTROL SYSTEM Overflow when Overflow when unit is ON unit is OFF Overflow Water Level Normal OPER BLINK NLOAD is NLOAD forced to 0 PUMP 10 min 10 min 10 min 11.8.7 Communication malfunction If the ODU does not receive correct signal from indoor unit for 30 seconds continuously, or if the indoor unit does not receive message from outdoor unit for 1 minute, the unit will stop as communication malfunction protection;...
Page 42 11—CONTROL SYSTEM 11.9 Operating the Unit from the ON/OFF Button The ON/OFF button allows to operate the unit in AUTO mode, the microcomputer will monitor the room temperature and select the (COOL, HEAT, FAN) mode automatically, and temperature/Fan speed settings can not be changed. 11.10 Indoor Unit Controllers and Indicators The following is schematic drawing for the display: CADE:...
Page 43 11—CONTROL SYSTEM FADE: Power indication Lights up when the unit is connected to power Timer indication Lights up when the Timer is set Cool indication Lights up when the unit is running in cooling mode Heat indication Lights up when the unit is running in heat mode tting temperature is displayed.
Page 44: Characteristics Of Sensor
11—CONTROL SYSTEM 11.12 Characteristics of sensor 11.12.1 RAT/OAT RAT/OAT R-T chart Temperature(C) 11.12.2 ICT/OCT ICT/OCT R-T Chart Temperature(C) 11—12 | SM YUDE 1-A.1 GB...
Page 45 11—CONTROL SYSTEM 11.12.3 CTT R-T Chart Temperature(C) SM YUDE 1-A.1 GB | 11—13...
Page 46: Troubleshooting
12—TROUBLESHOOTING TROUBLESHOOTING 12.1 ELECTRICAL & CONTROL TROUBLESHOOTING 12.1.1 Precautions before Performing Inspection or Repair Be cautious during installation and maintenance. Do operation following the regulations to avoid electric shock and casualty or even death due to drop from high attitude. * Static maintenance is the maintenance during de-energization of the air conditioner.
Page 47 12—TROUBLESHOOTING 12.1.3.1 Indoor Unit Diagnostics 12.1.3.2 Indoor Unit Diagnostics and Corrective Actions 12.1.3.3 Outdoor Unit Diagnostics Indoor indicators Failure Possible Reasons/Corrective actions ODU 2x7 2*7segments / segments RCWE 1. Connection of pump is loosen Water pump failure 2. Pump is damaged 1.
Page 48 12—TROUBLESHOOTING 1. AC power supply voltage is less than DC under voltage protection 150VAC 2. Outdoor PCB circuit malfunction 1. Compressor wiring mistake 2. Over charged system Compressor startup failure 3. System not balanced before compressor starting 4. Compressor problem 1.
Page 49 12—TROUBLESHOOTING 12.1.4 Checking the refrigeration system Checking system pressures and other thermodynamic measures should be done when system is in Test Mode (in Test mode, system operates in ﬁ xed settings). The performance curves given in this manual are given for unit performance in test mode when high indoor fan speed is selected.
Page 50: Exploded Views And Spare Part Lists
13—EXPLODED VIEWS AND SPARE PART LISTS EXPLODED VIEWS AND SPARE PART LISTS 13.1 Exploded view of Indoor unit: AWSI-DBDE024/030-N11 AWSI-DBDE024-030-N11 13—1 | SM YUDE 1-A.1 GB 13—1 | SM YUDE 1-A.1 GB...
Page 51 13—EXPLODED VIEWS AND SPARE PART LISTS 13.2 Spare part list of Indoor Unit: AWSI-DBDE024-N11 Part Code Part Description G15012454 Motor(left) SYP-160/200J G01325200039 Blower Mounting Plate Sub-Assy G01805200164 Support Sub-assy G01804100140 Supporter G15705200006 Brushless DC Motor G15012458 Motor(right) SYP-160/200J G01265304 Bottom Cover G01285317 Water Tray Foam G01314155...
Page 52 13—EXPLODED VIEWS AND SPARE PART LISTS 13.3 Spare part list of Indoor Unit: AWSI-DBDE030-N11 Part Code Part Description G15012454 Motor(left) SYP-160/200J G01325200039 Blower Mounting Plate Sub-Assy G01805200164 Support Sub-assy G01804100140 Supporter G15705200006 Brushless DC Motor G15012458 Motor(right) SYP-160/200J G01265304 Bottom Cover G01285317 Water Tray Foam G01314155...
Page 53 13—EXPLODED VIEWS AND SPARE PART LISTS 13.4 Exploded view of Indoor unit: AWSI-DBDE036-N11 AWSI-DBDE036-N11 SM YUDE 1-A.1 GB | 13—4...
Page 54 13—EXPLODED VIEWS AND SPARE PART LISTS 13.5 Spare part list of Indoor Unit: AWSI-DBDE036-N11 Part Code Part Description G30224000030 Main Board G4201025301 Terminal Board G42010194 Terminal Board G02112466 Hook G01265200086 Top Cover Board Assy G01395200212 Electric Box Assy G01315200100 Right Side Plate Sub-Assy G26904100051 Volute Casing (Upper) G01325200044...
Page 55 13—EXPLODED VIEWS AND SPARE PART LISTS 13.6 Exploded view of Indoor unit:AWSI-CADE024/030/036-N11 AWSI-CADE024-030-036-N11 SM YUDE 1-A.1 GB | 13—6...
Page 56 13—EXPLODED VIEWS AND SPARE PART LISTS 13.7 Spare part list of Indoor Unit: AWSI-CADE024-N11 Part Code Part Description G20122054 Electric Box Cover Sub-Assy1 G01399400057 Electric Box Assy G4201025801 Terminal Board G4201025301 Terminal Board G01412721 Electric Box Base Plate G20182701 Water Tray Assy...
Page 57 13—EXPLODED VIEWS AND SPARE PART LISTS 13.8 Spare part list of Indoor Unit: AWSI-CADE030-N11 Part Code Part Description G20122054 Electric Box Cover Sub-Assy1 G01399400057 Electric Box Assy G4201025801 Terminal Board G4201025301 Terminal Board G01412721 Electric Box Base Plate G20182701 Water Tray Assy G10312701 Fan Fixer G10310101...
Page 58 13—EXPLODED VIEWS AND SPARE PART LISTS 13.9 Spare part list of Indoor Unit: AWSI-CADE036-N11 Part Code Part Description G20122054 Electric Box Cover Sub-Assy1 G01399400057 Electric Box Assy G4201025801 Terminal Board G4201025301 Terminal Board G01412721 Electric Box Base Plate G20182701 Water Tray Assy G10312701 Fan Fixer G10310101...
Page 59 13—EXPLODED VIEWS AND SPARE PART LISTS 13.10 Exploded view of Indoor unit:AWSI-FADE024-N11 AWSI-FADE024-N11 SM YUDE 1-A.1 GB | 13—10...
Page 60 13—EXPLODED VIEWS AND SPARE PART LISTS 13.11 Spare part list of Indoor unit:AWSI-FADE024-N11 Part Code Part Description G3900020720G Tube sensor G39000191 Room Sensor G02229406 Connection Board G26909444 Right Cover Plate G26909442 Fixed Plate G01809402 Right Pensile Bracket G10542704 Axile Bush G01319429 Right Side Plate Sub-Assy G02284106P...
Page 61 13—EXPLODED VIEWS AND SPARE PART LISTS 13.12 Exploded view of Indoor unit:AWSI-FADE030/036-N11 AWSI-FADE030-036-N11 SM YUDE 1-A.1 GB | 13—12...
Page 62 13—EXPLODED VIEWS AND SPARE PART LISTS 13.13 Spare part list of Indoor unit:AWSI-FADE030-N11 Part Code Part Description G05235434 Drainage Pipe Sub-assy G3900020720G Tube sensor G39000191 Room Sensor G10582008 Swing Lever G26909418 Air Louver G10582009 Swing Lever G26909422 Right Cover G01809402 Right Pensile Bracket G02229406 Connection Board...
Page 63 13—EXPLODED VIEWS AND SPARE PART LISTS 13.14 Spare part list of Indoor unit:AWSI-FADE036-N11 Part Code Part Description G05235434 Drainage Pipe Sub-assy G3900020720G Tube sensor G39000191 Room Sensor G10582008 Swing Lever G26909418 Air Louver G10582009 Swing Lever G26909422 Right Cover G01809402 Right Pensile Bracket G02229406 Connection Board...
Page 64 13—EXPLODED VIEWS AND SPARE PART LISTS 13.15 Exploded view of Outdoor unit:AWAU-YUDE024/030-H11 AWAU-YUDE024-030-H11 13—15 | SM YUDE 1-A.1 GB 13—15 | SM YUDE 1-A.1 GB...
Page 65 13—EXPLODED VIEWS AND SPARE PART LISTS 13.16 Spare Part List:AWAU-YUDE024-H11 Part Code Part Description G22415003 Front Grill G01435004P Cabinet G10335014 Axial Flow Fan G01305086P Front Side Plate G15702802 Fan Motor G0119520001301P Chassis Sub-Assy G06123401 Drainage Connecter G7651873209 electrical heater G76713066 Compressor Gasket G0010505701 Compressor and Fittings...
Page 66 13—EXPLODED VIEWS AND SPARE PART LISTS 13.17 Spare Part List:AWAU-YUDE030-H11 Part Code Part Description G22415003 Front Grill G01435004P Cabinet G10335014 Axial Flow Fan G01305086P Front Side Plate G15702802 Fan Motor G01195200013P Chassis Sub-assy G06123401 Drainage Connecter G7651873209 electrical heater G76713066 Compressor Gasket G0010505701 Compressor and Fittings...
Page 67 13—EXPLODED VIEWS AND SPARE PART LISTS 13.18 Exploded view of Outdoor unit:AWAU-YUDE036-H11 AWAU-YUDE036-H11 SM YUDE 1-A.1 GB | 13—18...
Page 68 13—EXPLODED VIEWS AND SPARE PART LISTS 13.19 Spare Part List:AWAU-YUDE036-H11 Part Code Part Description G22415005 Front Grill G26235253 Handle G01435007P Cabinet G01305508 Front Side Plate Sub-Assy G01195315P Chassis Sub-assy G26113009 Drainage Joint G7651873209 electrical heater G01245253 Clapboard Sub-Assy G76713066 Compressor Gasket G00205200003 Compressor G07255201...
Page 69: Appendix
APPENDIX...
Page 70 SERVICE MANUAL YUDE Series...
