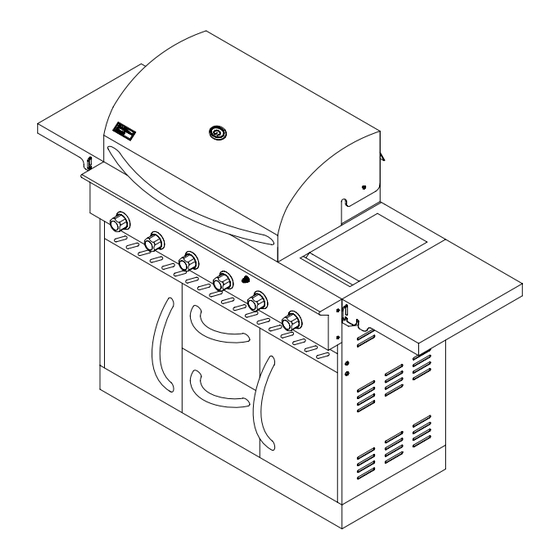

- Page 1 Stainless Steel Gas Grill USE AND CARE GUIDE MODEL NO.: 730-0274 ® FOR OUTDOOR USE ONLY PLEASE CONTACT 1-800-913-8999 FOR ASSISTANCE DO NOT RETURN TO PLACE OF PURCHASE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION ONE SECTION FIVE Safety Instructions…………………………1~6 Using the Side Burner…………………… Natural Gas Safety………………………….6 Care & Maintenance ………………………. Care & Maintenance of Side Burner……… SECTION TWO Trouble Shooting………………………… 16~18 Installation of Side Shelves ………….……… 7 Installation of Battery … ……………………8 SECTION SIX Installation of Spice Tray …………………...9 Exploded View…………………………….. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS ***** WARNING ***** FOR YOUR SAFETY If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open Lid. 4. If odor continues, immediately call your gas supplier or your fire department. FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. - Page 4 SAFETY INSTRUCTIONS WARNING Do not try lighting this appliance without first reading “LIGHTING INSTRUCTIONS” section of this manual. DO NOT USE ALUMINUM FOIL TO LINE THE GRILL RACKS OR GRILL BOTTOM. This can severely upset combustion airflow or trap excessive heat in the control area.
- Page 5 SAFETY INSTRUCTIONS WARNING: Always keep your face and body as far away from the burner as possible when lighting. WARNING: IMPORTANT! BEFORE LIGHTING… Inspect the gas supply hose prior to turning the gas “ON”. If there is evidence of cuts, wear, or abrasion, it must be replaced prior to use. Do not use the grill if the odor of gas is present.
- Page 6 SAFETY INSTRUCTIONS TESTED IN ACCORDANCE WITH ANSI CHILDREN SHOULD NOT BE LEFT ALONE OR Z21.58b-2002/CGA 1.6b-2002 STANDARD FOR UNATTENDED IN AN AREA WHERE THE GRILL OUTDOOR COOKING GAS APPLIANCES. THIS IS BEING USED. NEVER ALLOW THEM TO SIT, GRILL IS FOR OUTDOOR USE ONLY. STAND OR PLAY ON OR AROUND THE GRILL AT ANY TIME.
- Page 7 SAFETY INSTRUCTIONS When using the grill, do not touch the grill rack, cleaner on or around the grill. The chemical that burner grate or immediate surroundings as produces the spraying action could, in the these areas become extremely hot and could presence of heat, ignite or cause metal parts to cause burns.
-
Page 8: Natural Gas Safety
Follow these steps: 4. If you have a gas leak that you cannot .Make soap solution by mixing one part repair, turn off the gas at the source, liquid detergent and one part water. disconnect the fuel line from grill and 2.Turn off heat control valves, and then... -
Page 9: Installation Of Side Shelves
INSTALLATION OF SIDE SHEIVES The screws for the side shelves mount are already screwed into the two sides of the grill. Remove the screws and install the left shelf as shown in the figure below. Repeat the above step to install the right shelf on right side panel. -
Page 10: Installation Of Battery
INSTALLATION OF BATTERY In order to install the battery, remove the ignition button housing. Repeat the ignition button housing after battery is installed. Please keep the positive pole facing toward you. Tight the ignition button after installed the battery. -
Page 11: Installation Of Spice Tray
INSTALLATION OF SPICE TRAY Put the spice tray into the hook on the left door. -
Page 12: To Match Light The Gill
TO MATCH LIGHT THE GRILL If the burner will not light after several attempts then the burner can be match lit. If you’ve just attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate. Keep your face and hands as far away from the grill as possible. -
Page 13: Leak Testing
LEAK TESTING GENERAL Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly being applied to the unit. -
Page 14: Installer Final Check
INSTALLER FINAL CHECK Specified clearance maintained 24” Unit tested and free of leaks. from combustibles. User informed of gas supply shut off All internal packaging removed. valve location. Knobs turn freely. Burners are tight and sitting properly on PLEASE RETAIN THESE INSTRUCTIONS orifices. -
Page 15: Operating Instructions
OPERAING INSTRUCTIONS The skewer for the rotisserie is assembled into the GENERAL USE OF THE GRILL and rotisserie Each main burner is rated at 12,000 BTU/hr. The main motor assembly by placing the pointed end into the grill burners encompass the entire cooking area and motor, and then sliding the grooved bushing into the are side ported to minimize blockage from falling slot at the opposite side of the grill. -
Page 16: Lighting Instructions
LIGHTING INSTRUCTION WARNING: IMPORTANT! these conditions exist call our customer service line. If the flame is yellow, it indicates insufficient BEFORE LIGHTING… air. If the flame is noisy and tends to lift away from Inspect the gas supply hose prior to turning the the burner, it indicates too much air. -
Page 17: Using The Side Burner
USING THE SIDE BURNER the control knob counterclockwise to the “HI” WARNING: IMPORTANT! position. If the burner does not light, turn the USING THE SIDE BURNER: control knob to “OFF”. If the smell of gas is Inspect the gas supply hose prior to turning the detected and the igniter is not functioning, gas “ON”. -
Page 18: Care & Maintenance Of Side Burner
CARE & MAINTENANCE OF SIDE BURNER SIDE BURNER CLEANING: Clean the exterior of the burner with a wire brush. Clear any clogged burner ports with a straightened paper clip. Never enlarge the burner ports. Never use a wooden toothpick as it may break off and clog the port. -
Page 19: Trouble Shooting
TROUBLE SHOOTING PROBLEM SOLUTION When I light the grill it does not flame --Make sure you have turn on the gas immediately. --Make sure it has spark while you are trying to ignite the burner. --Push in for approximately 5 second before to turn and ignite the grill. - Page 20 Full size cover does not fit the grill. --Cover may be incorrect for your grill. It may be a tight fit. Ensure the cover correct length for your grill. Measure it left to right. Compare to the grill’s measurement. --Compare the location and size of the hood portion of the cover to your grill.
-
Page 21: Exploded View
EXPLODED VIEW 30 0 40 0 10 0 70 0... -
Page 22: Parts List
MODEL 730-0274 PARTS LIST REF# DESCRIPTION Q’TY REF# DESCRIPTION Lid, Front Door Handle Heat Indicator Right Door Name Plate Warming Rack Heater Insulating Spacer Cooking Grid Handle Assembly, Lid Cooking Grid with Hole Rear Baffle, Rear Burner Flame Tamer Fire Box... -
Page 23: Grilling Hints
Left Door Caster With Brake Drawer Lighting Rod Drawer Handle GRILLING HINTS The doneness of meat, whether rare, medium, or Use a spatula instead of tongs or a fork to turn well done, is affected to a large degree by the the meat, as a spatula will not puncture the thickness of the cut. -
Page 24: Grill Cooking Chart
GRILL COOKING CHART FOOD WEIGHT OR FLAME APPROXIMATE SPECIAL INSTRUCTIONS THICKNESS SIZE TIME AND TIPS VEGETABLES Slice. Dot with butter or margarine. Wrap in heavy-duty foil. Grill, turning occasionally. Fresh: Beets Medium 12 to 20 minutes Grill, turning once. Brush Carrots occasionally with melted butter or Turnips... - Page 25 Rare 1 inch High 8 to 14 minutes Remove excess fat from edge. Slash remaining fat at 2-inch intervals. Grill, turning once. Medium 1-1/2 inch High 11 to 18 minutes 1 inch Medium to 12 to 22 minutes 1-1/2 inch High 16 to 27 minutes Well-done...
-
Page 26: Grill Recipe Suggestion
Brush with melted butter and lemon Rainbow trout High juice. GRILL RECIPE SUGGESTIONS BBQ SALMON 1 20 oz. Can pineapple chunks in juice aluminum foil. Bake covered 25 minutes 2 large salmon steaks drained In medium bowl, combine shrimp on medium with the lid of your BBQ grill 2 tbs. - Page 27 ½ tsp. salt Bring marinade to boil on the side 1 chicken bouillon cube ½ tsp. celery salt burner in a saucepan. Add remaining 1 can beer for basting sauce ¼ tsp. garlic powder 1/3 c. water and peanut butter. Stir to ½...
-
Page 28: Limited Warranty
LIMITED WARRANTY MODEL 730-0274 STAINLESS STEEL OUTDOOR GAS GRILL Nexgrill Industries, Inc. warrants to the original consumer purchaser of each Outdoor Gas Grill that when subject to normal residential use, it is free from defects in workmanship and materials for the periods specified below. This warranty excludes grills used in rental or commercial applications. - Page 29 do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.
