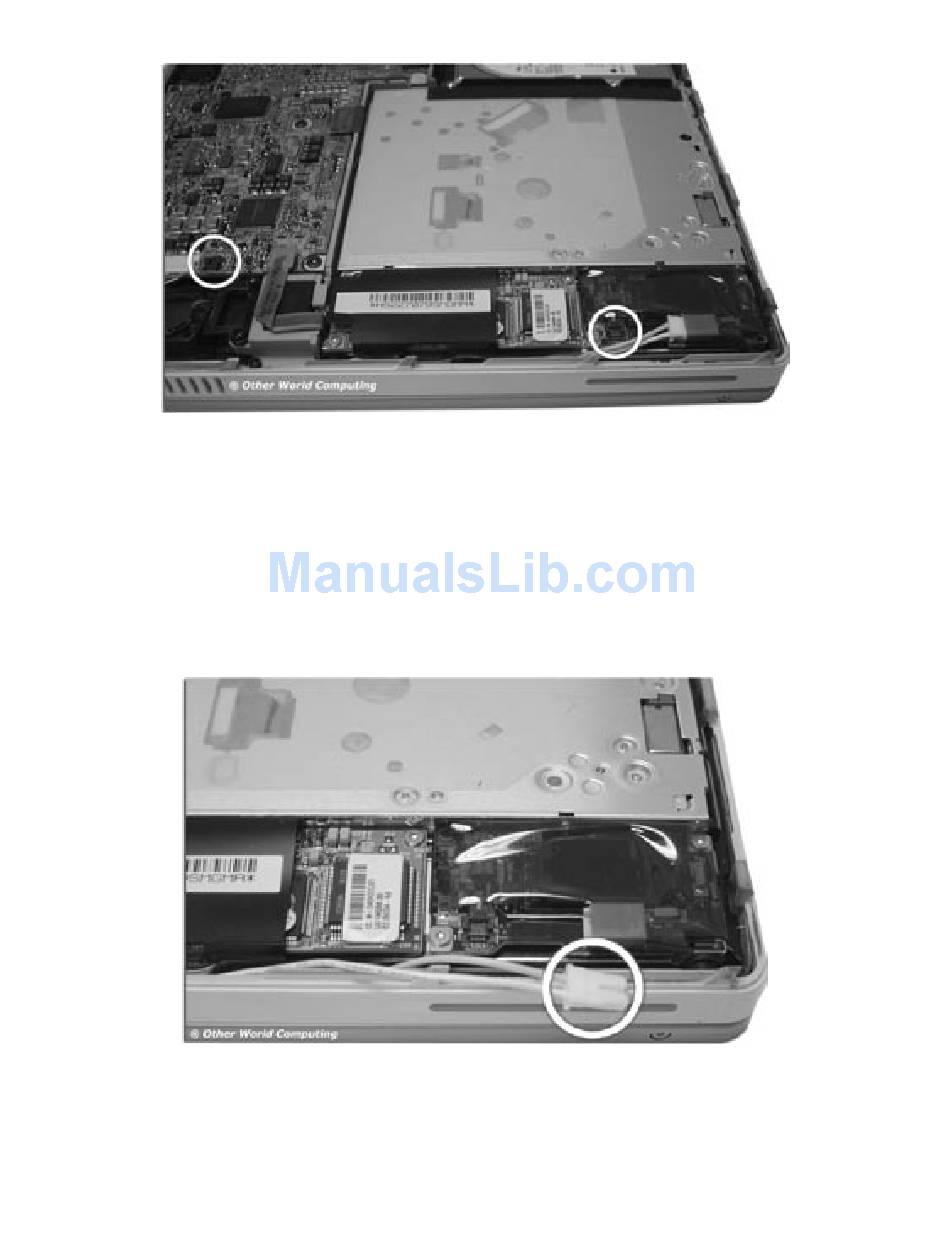

Detach the ribbon cable from the inverter board and then from the logic board - the two
positions you remove the cable from are shown circled in this picture. Set the inverter
ribbon cable aside.
Unplug the white and pink cable from the inverter board by pulling gently straight back
towards the modem, the cable is shown unplugged in this picture. The wires are very
flexible silicone coated, do not pinch or cut them as they carry power to the LCD display.
OWC Mercury Optical Drives Installation Manual
Page #12
