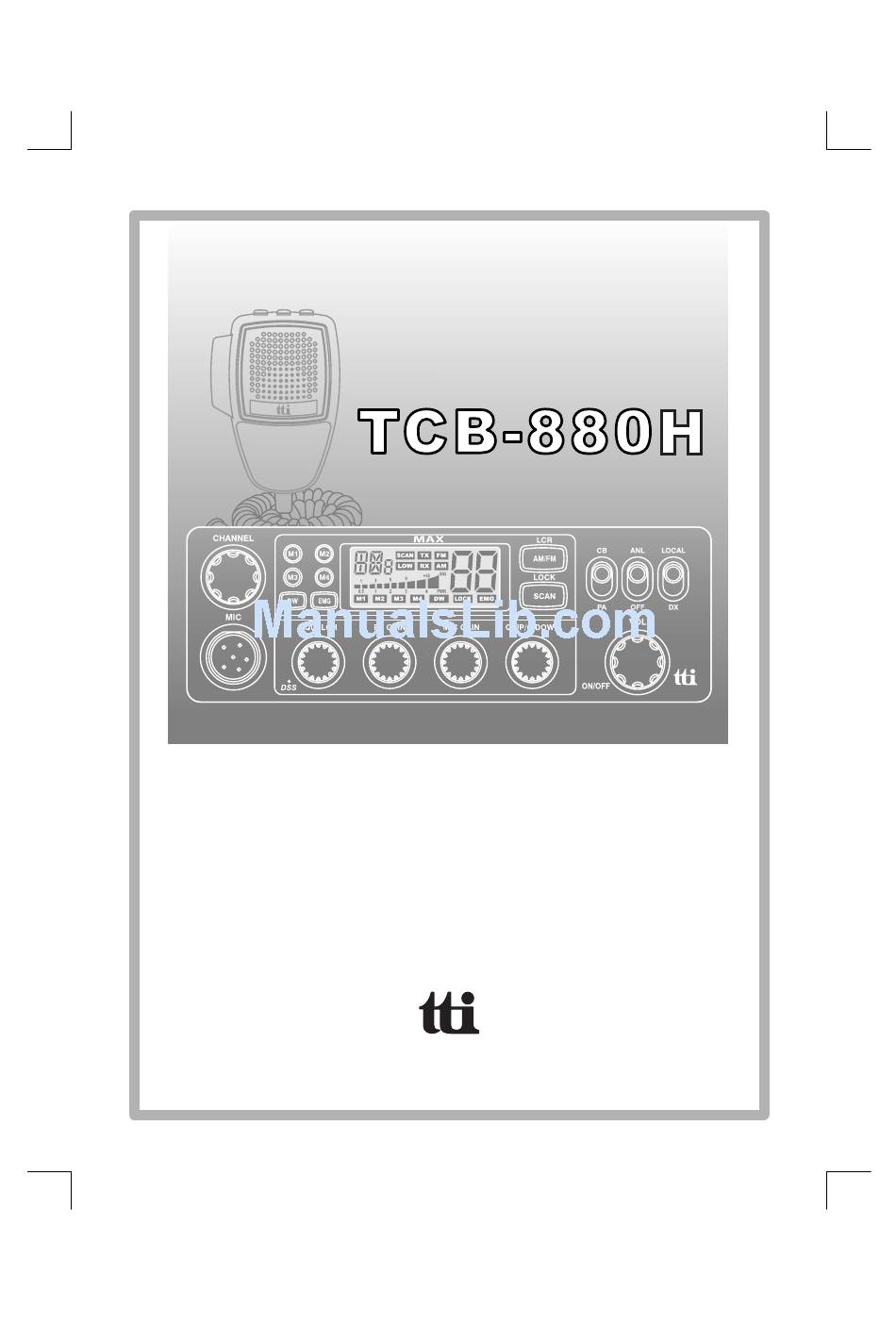

Page 1: Instruction Manual
Downloaded from www.cbradio.nl 25 W MOBILE CB TRANSCEIVER INSTRUCTION MANUAL www.ttikorea.co.kr... -
Page 2: Table Of Contents
CONTENTS Introduction Supplied Accessories Installation Transceiver Controls and Functions Channel Selector Dual Watch Memory Channel Selectors Emergency Button LCD Display Scan/Lock Button AM/FM and LCR Button CB/PA Selector ANL/OFF Selector Local/DX selector Volume and Power On/Off Knob Quick Up/Quick Down Selector Microphone Gain Knob RF Gain Knob Squelch Control knob... -
Page 3: Introduction
The transceiver should normally be mounted horizontally, but may be mounted vertically. The bracket supplied can be fitted above or below the case allowing the TCB-880H to be cradled by the bracket or suspended from it. TCB-880H... - Page 4 5) Connect the power cable to the transceiver cable. 6) Mount the microphone bracket on one side of the transceiver, or near it using two screws included. 7) Connect the microphone to the transceiver’s microphone receptacle. Now you are ready to operate the transceiver. TCB-880H...
-
Page 6: Transceiver Controls And Functions
2) Dual Watch Press momentarily this button, and this allows you to monitor two channels that you pre-selected and memorized. You may select the emergency channel. To stop this function, press momentarily again this button. TCB-880H... -
Page 7: Memory Channel Selectors
To return to the previous channel operation, momentarily press the memory channel selector, or use the channel selector or quick up/quick down selector. When you select a channel and the channel is same as one of the memorized channels, the matching memory number icon blinks. TCB-880H... -
Page 8: Emergency Button
If you press the PTT button when your transceiver detects a signal, the radio will transmit on the same channel. Scanning will resume after the scan receive time and/or the scan delay time. Use the channel selector or quick up/quick down selector to resume scanning immediately. TCB-880H... -
Page 9: Am/Fm And Lcr Button
To receive weak signals, locate the selector on the DX position. While the transceiver is in the location where the signal is very strong, location the selector on the Local position. This gives attenuation to get better audio sound. TCB-880H... -
Page 10: Volume And Power On/Off Knob
To return to the manual squelch turn this knob clockwise until hearing the click sound and then follow the manual squelch setting procedure. 16) Microphone Jack Insert the microphone into this jack. Use the guide for easy connection. TCB-880H... -
Page 11: Antenna Connector
5. LCD Display Selected Frequency Band Low Power (AM 1 Watt) 1 2 3 4 5 Scan Transmit FM Mode AM Mode Channel Display Signal Strength Meter Memory Channel Activated Receive Dual Watch Mode 9 10 Keypad Lock Emergency Channel Display TCB-880H... -
Page 12: Microphone
Beep Tone ) / Off( Time-out Timer Off( ) and 1~99 Sec. Scan Receive Timer Continue( ) and 1-99 Sec. Scan Delay Timer Off( ) and 1~99 Sec. (after Receiving signal) Backlight Dimmer High( ) / Low( ) / Off( TCB-880H... -
Page 13: How To Operate The Transceiver
5) Turn on the transceiver and control the volume level. 6) Adjust the squelch control knob to the optimum level. 7) Select your desired channel. 8) To transmit, press the PTT button and speak to the microphone. 9) Release the PTT button to receive. TCB-880H... -
Page 14: Band Selection
Italy 34 Ch AM / FM 25 W Germany 80 Ch FM 25 W, 12 Ch AM 25 W Germany 40 Ch FM 25 W, 12 Ch AM 25 W Europe 40 Ch FM 25 W, 40 Ch AM 25 W TCB-880H... -
Page 15: Trouble Shooting
10. Trouble Shooting If you experience problems with your TCB-880H transceiver, first check the power supply source. Poor connection of the power supply source can cause problems such as no transmission,no reception or poor reception, and weak or no sound. Ensure that the microphone and antenna are also well connected. -
Page 16: Safety Requirement
The same colors are present on the battery and in the fuse box of the car. The unit must be wired for the negative ground only. To avoid damage, do not operate your CB radio without connecting a proper antenna. TCB-880H... -
Page 17: Specification
60 dB Adjacent Channel Rejection 60 dB Conducted Spurious More than 60 dB Frequency Response 300 to 2500Hz Built-in Speaker 8 Ohms, round Squelch Adjustable; Threshold less than 1 microvolt * Specification is subject to change without prior notice. TCB-880H... -
Page 18: Restrictions On The Use
40 Ch - 1W AM - Individual licence is required 40 Ch - 4W FM - Individual licence is required UK-RA-MPT 1382/MPT1320; UK-R&TTE - S.IL. 2000:730 POLAND PL EU 40 Ch - 4W FM / AM - Free use TCB-880H... -
Page 19: Freequency Table
27.365 27.365 26.915 27.365 27.360 27.95125 27.375 27.375 27.375 27.375 26.925 27.375 27.370 27.96125 27.385 27.385 27.385 27.385 26.935 27.385 27.380 27.97125 27.395 27.395 27.395 27.395 26.945 27.395 27.390 27.98125 27.405 27.405 27.405 27.405 27.405 27.400 27.99125 26.955 AM/FM TCB-880H... - Page 20 EN 300 433-2 V1.1.2 standards, specifications or documents: EN 301 489-13 V1.2.1 EN 60950-1 2001 TCB-880H fulfills the limits defined in the paragraphs 6.5, 6.6, 6.8, and 6.9 of the 72/245/EEC. N. Y. Kim Director Signature TCB-880H...
