Summary of Contents for TTikorea TX-150M

  • Page 1: Instruction Manual

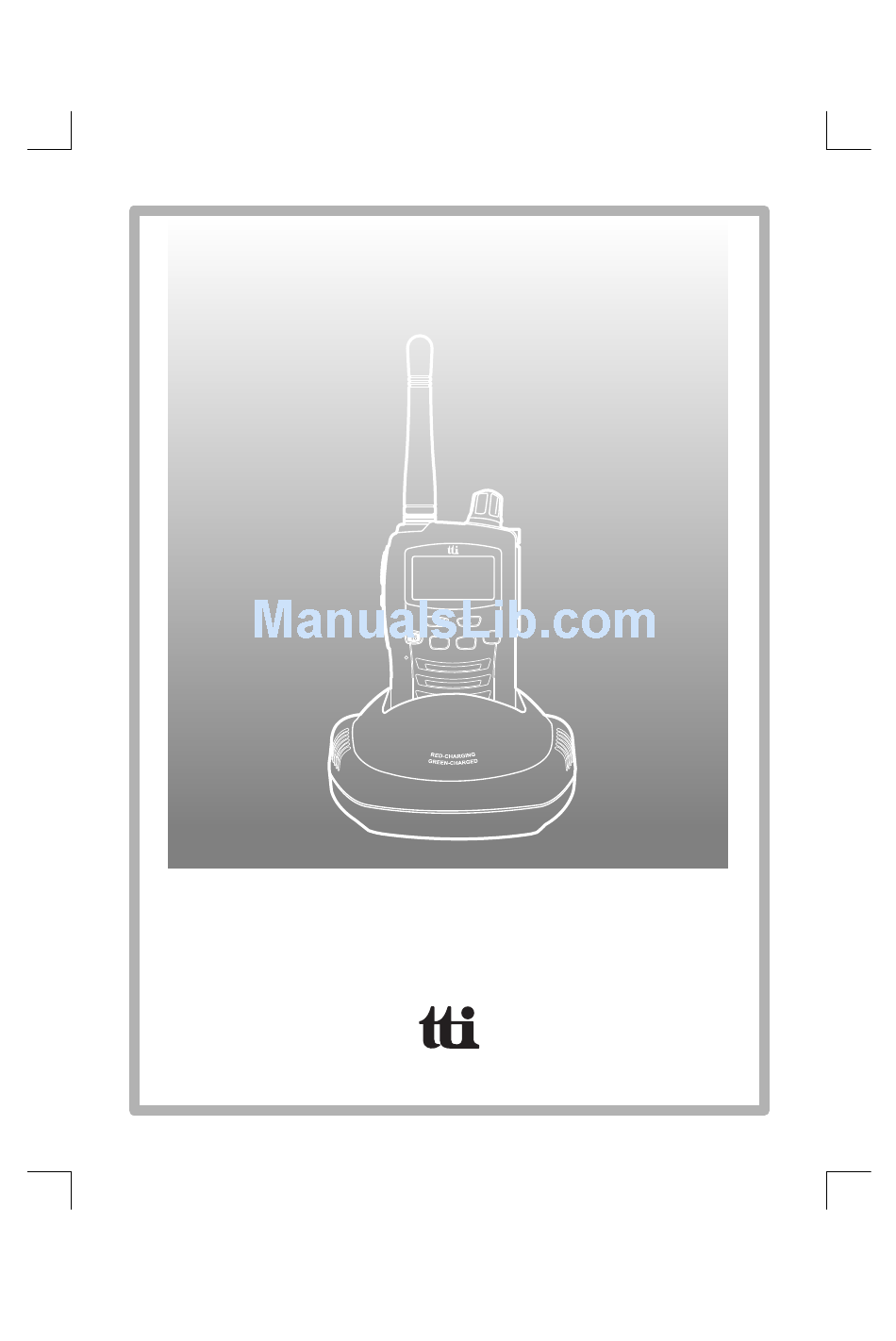

    TX-150M SCAN MENU MARINE TRANSCEIVER INSTRUCTION MANUAL Manufactured by www.ttikorea.co.kr...
  • Page 2 Thank you for purchasing this TTI radio. All our products are built to offer excellent value by combining advanced features, great design and manufacturing quality. To ensure you are familiar with the operation and features of your radio, and in order to obtain the best performance, please read this manual carefully before operation.
  • Page 3: Table Of Contents

    CONTENTS Caution ............4 1. Radio Controls ........... 5 2. Equipment and Accessories Supplied ..6 3. Fitting the Battery pack ......6 4. Battery Charging ........7 5. Radio Controls ........... 8 6. LCD Display ..........10 7. Basic Radio Operation ......11 8.
  • Page 4: Caution

    ONLY use TTI approved rechargeable batteries with the supplied charger. AVOID submerging your radio into water. It is not submersible. AVOID storing or charging your radio in direct sunlight. AVOID storing or using your radio where temperatures are below -20ºC or above +60ºC. TX-150M...
  • Page 5: Radio Controls

    Power On/Off & Antenna Volume Control Knob PTT Button Jack Cover Lid Holder Squelch & Monitor Button Accessory Jack Keypad Lock Button LCD Display Down Button Up Button Channel 16 Button Scan Button Menu Button Dual/Triple Watch Microphone Speaker SCAN MENU TX-150M...
  • Page 6: Equipment And Accessories Supplied

    2. Equipment and Accessories Supplied 1. TX-150M radio 1 unit 2. Replaceable Antenna 1 unit 3. Li-Ion Battery pack (730mAh) 1 unit 4. Charging Cradle 1 unit 5. Power Adaptor 1 unit 6. Carry Case 1 unit 7. Instruction Manual 1 unit 3.
  • Page 7: Battery Charging

    4. The battery charging time is typically 12 to 15 hours. When the battery is fully charged the charger LED will turn green. Power Adaptor : - Input: 230VAC - Output: 9VDC Adaptor Power Plug SCAN Charge Cradle MENU SCAN MENU TX-150M...
  • Page 8: Radio Controls

    In some modes this button is used to adjust the function setting. MENU 6. UP button Pressing this button will increase the channel number. In some modes this button is used to adjust SCAN the function setting. D /T TX-150M...
  • Page 9 Triple Watch will change the mode to Dual Watch. 10. SCAN button Press this button briefly to activate or de-activate the scan mode. Pressing this button with one Priority Channel turned on will activate or de-activate the SCAN Priority Scan . TX-150M...
  • Page 10: Lcd Display

    Scan Icon Receiver Busy Icon Key Beep Icon Monitor Icon Priority Channel Icon Dual Watch Icon High Power Icon Triple Watch Icon Channel Suffix A Icon Battery Icon Channel Icon Keypad Lock Icon Duplex Communication Roger Beep Icon Icon TX-150M...
  • Page 11: Basic Radio Operation

    Use the UP or DOWN button to change the setting. Press the PTT or MODE button or wait for 5 seconds to store your choice. If you do not press any key for 5 seconds your radio will return to standby mode automatically. TX-150M...
  • Page 12: Radio Features Explained

    'Off' is fully open, with constant static noise. Monitor The Monitor function is used to briefly check for activity on the current channel, regardless of privacy code settings. It is the same as setting the squelch level to 'Off'. TX-150M...
  • Page 13: Keypad Lock

    16) and the third channel that you can select in the function menu. A selected priority channel is working as the third channel. If the third channel(one priority channel) has not been selected, the triple watch will not start with an error beep. TX-150M...
  • Page 14: Channel Scan

    Scanning will resume approximately 5 seconds after the transmission. While one Priority Channel has been selected in the Function Menu, only the Priority Scan is available. The selected Priority Channel is visited as frequently as the scanning channel changes. TX-150M...
  • Page 15: Priority Channel

    Roger Beep icon and current setting flashes. Use the UP or DOWN button to change the setting. Press the PTT or MENU button or wait for 5 seconds to store your choice. The Roger Beep icon will appear when Roger Beep is active. TX-150M...
  • Page 16: Call Tone

    The Battery icon indicates when the battery level is low and the battery needs recharging. Power Save To conserve battery power the radio will automatically enter Power Save mode after a short period of inactivity. There is no user setting for Power Save. TX-150M...
  • Page 17: Troubleshooting

    10. Troubleshooting If you experience problems with your TX-150M marine band radio first check the battery power level as low batteries can cause problems such as poor transmission, weak reception and reduced sound quality. Then check the manual and radio display to ensure that a function (such as Lock) has not been activated by accident.
  • Page 18: Safety Requirements

    12. Safety Requirements For charging the rechargeable batteries, only a CE approved AC adaptor complying with the following specifications must be used : INPUT : AC 230V 50Hz OUTPUT :DC 9V 300mA TX-150M...
  • Page 19: Technical Specifications

    157.150 161.750 157.175 161.775 157.200 161.800 157.225 161.825 157.250 161.850 157.275 161.875 157.300 161.900 157.325 161.925 157.350 161.950 157.375 157.375 157.400 162.000 157.425 157.425 157.850 157.850 156.025 160.625 2) Channel Spacing: 25kHz 3) Power Source: 1 x Li-Ion battery TX-150M...
  • Page 20 H. J. Lee Senior Manager COMMAX PL 46 Koniecznego Str. 32-040 Swiatniki Gorne Poland T. +48 12 256 50 25 F. +48 12 270 56 96 Signature Authorized Representative TX-150M products are manufactured by Tech Co., Ltd. Tel: 82-2-5170043, Website: www.ttikorea.co.kr...
