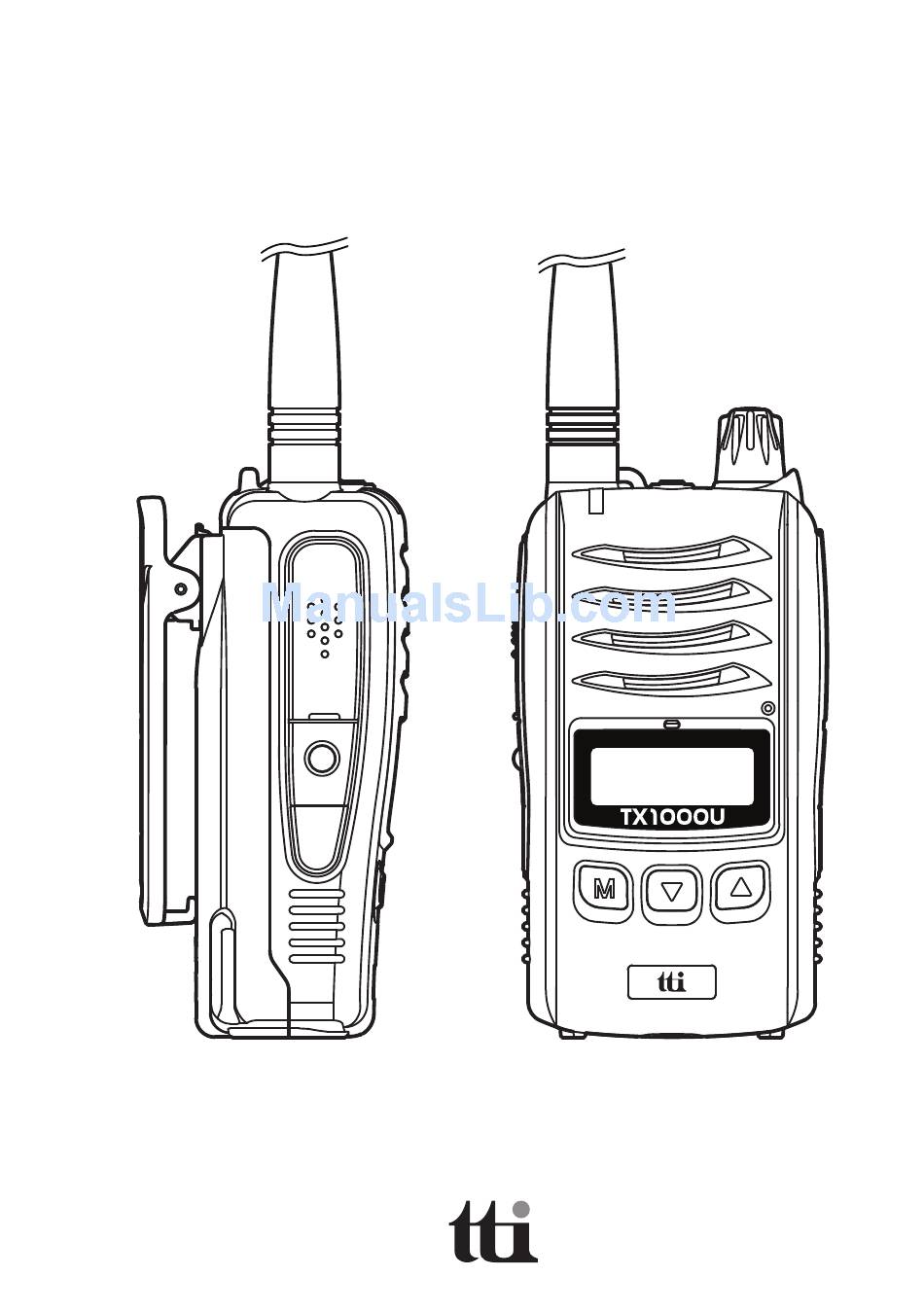

- Page 1 TX1000U TX1000U TX1000UBT TX1000UBT ( Bluetooth Compatible ) ( Bluetooth Compatible ) PMR446 TRANSCEIVER INSTRUCTION MANUAL INSTRUCTION MANUAL www.ttikorea.co.kr...
- Page 3 Thank you for purchasing this radio. All our products are built to offer excellent value by combining advanced features, great design and manufacturing quality. To ensure you are familiar with the operation and features of your radio, and in order to obtain the best performance, please read this manual carefully before operation.
-
Page 4: Table Of Contents
Contents Caution .................. 1.Radio Controls ..............2. Equipment and Accessories Supplied ......3. Fitting the Battery pack ............. 4. Battery Charging ..............5. Radio Controls ..............1. Power On/Off/Volume Control ........2. Push-To-Talk (PTT) Button ........3. Monitor Momentarily ........... 4. -
Page 5: Caution
Caution IMPORTANT - READ ALL INSTRUCTIONS carefully and completely before operating your radio and retain this manual for future reference. NEVER connect the radio to a power source other than the supplied battery. This may damage your product. NEVER operate your radio with the antenna less than 5cm from exposed parts of the body. -
Page 6: Radio Controls
1.Radio Controls ① Antenna ⑧ Lock Button ② Strap Hole ⑨ Accessory Jack ③ TX/RX Indicator ⑩ Speaker ④ PTT Button ⑪ Microphone ⑤ Monitor Button ⑫ LCD Display ⑥ Belt Clip ⑬ Function / Menu Button ⑭ Down Button ⑦... -
Page 7: Equipment And Accessories Supplied
2. Equipment and Accessories Supplied 1. TX1000U (or TX1000UBT) Radio with Antenna 1 Unit 2. Li-Ion Battery Pack 1 Unit 3. Charging Cradle 1 Unit 4. Power Adaptor 1 Unit 5. Belt Clip 1 Unit 3. Fitting the Battery pack Fitting 1. -
Page 8: Battery Charging
4. Battery Charging To charge your radio, carefully follow these instructions: 1. Connect the power adaptor to the mains power supply and connect the adaptor charger jack to the charging cradle. 2. Disconnect any radio accessories and ensure the radio is switched off. -
Page 9: Radio Controls
5. Radio Controls 1. Power On/Off/Volume Control Turn the knob clockwise to switch on and increase the volume and counter-clockwise to decrease the volume and switch off the radio. The radio will emit a confirmation tone when it switches on. 2. -
Page 10: Dwon Button
5. Down Button Pressing this button will decrease the channel number. In some modes this button is used to adjust the function setting. 6. Up Button Pressing this button will increase the channel number. In some modes this button is used to adjust the function setting. -
Page 11: Lcd Display
6. LCD Display 10 11 12 21 20 19 18 17 16 15 14 13 Description Description Squelch Monitor Transmit Dual Watch Receive Compander Keypad Lock Power Save Mode Key Tone DTMF Tone Power High DCS Tone Function CTCSS / DCS Channel Power Low CTCSS Tone Bluetooth (Option) -
Page 12: Menu Mode
7. Menu mode The menu mode allows you to set-up and edit the basic functions. To access this menu mode press and hold the menu button. Each press of this button steps the radio sequentially through the different functions. The radio display indicates the current functions. The current setting and associated icon display. -
Page 13: Basic Radio Operation
Display Function Setting Roger Beep On/Off Key Tone On/Off , , , Call(Page) Tone Selection Bluetooth Compatible Function On/Off (Optional) Dual Watch Activation & Channel Selection BCLO (Busy Channel Lock Out) Selection 8. Basic Radio Operation The PMR-446 Radio service which this radio uses shares chan- nels on a ' take turns' basis. -
Page 14: Radio Features Explained
Release the PTT when you finish speaking. You will hear messages from other radios that are within range and have the same channel and privacy code setting. The appropriate icon will appear in the radio display when you receive or transmit a message. 9. - Page 15 code number flash. Use the UP or DOWN button to select the desired code. Press the PTT or MODE button or wait for 5 seconds to store your choice. The DCS icon will appear when a Digital Privacy Code is selected. Once a CTCSS or DCS code has been selected, you can conveniently deativate or re-activate the tone function.
- Page 16 frequencies. The users who prefer the unrefined sound are recommended to use the radio with this compander unactivated. To change the setting, press the MODE button until the Compander icon and current setting display. Use the UP or DOWN button to change the setting. Press the PTT or MODE button or wait for 5 seconds to store your choice.
-
Page 17: Squelch Level Adjustment
change the sensitivity level (3 is the most sensitive). Press the PTT or MODE button or wait for 5seconds to store your choice. Squelch Level Adjustment This function allows you to adjust the squelch level of your radio. To change the squelch level, press the MODE button until the squelch mode displays. - Page 18 required. To change the Key Beep setting, press the MODE button until the Key Beep icon appears. Use the UP or DOWN button to change the setting. Press the PTT or FUNCTION button or wait for 5 seconds to store your choice. The Key Beep icon will appear when Key Beep is active.
- Page 19 the FUNCTION button press. If you press the PTT button whilst receiving a signal in Dual Watch Mode the radio will transmit on the currently displayed channel. If you press the PTT button when no signal is present the radio will transmit on the primary channel. Busy Channel Lock Out (BCLO) Mode Busy Channel Lock Out prevents you from transmitting when another signal is present.
-
Page 20: Bluetooth Compatible Operation(Optional)
It may take about 20-30 seconds. 11. Troubleshooting If you experience problems with your TX1000U first check the battery power level as low batteries can cause problems such as poor transmission, weak reception and reduced sound quality. -
Page 21: Ce Declaration
In case of further difficulty please consult your dealer or visit our websites at www.ttikorea.co.kr. 12. CE Declaration 0648 CE version of the TX1000U which displays the CE symbol on the product label, complies with the es- sential requirements of the European Radio and Telecommunications Terminal Directive 1999/5/CE. -
Page 22: Technical Specifications
14. Technical Specifications 1) Operating Frequencies (frequency shown in MHz): Channel Frequency Channel Frequency 446.00625 446.05625 446.01875 446.06875 446.03125 446.08125 446.04375 446.09375 2) Channel Spacing: 12.5kHz 3) Power Source: 1 x Li-Ion battery 4) Privacy Codes (CTCSS Tone Codes) Table (in Hz): Freq. - Page 23 5) Digital Privacy Codes Table (DCS Tone Codes): Code Freq. Freq. Freq. Freq. 1071 1072 1073 1074 1114 1115 1116 1122 1125 1131 1132 1134 1143 1145 1152 1155 1156 1023 1162 1025 1165 1026 1172 1031 1174 1032 1205 1036 1212 1043...
- Page 24 Code Freq. Freq. Freq. Freq. 1246 0325 1423 1506 1654 1251 0331 1431 1516 1662 1252 1332 1432 1523 1664 1265 1343 1445 1526 1703 1261 1345 1446 1532 1712 1263 1351 1452 1546 1723 1265 1356 1454 1565 1731 1266 1364 1455...
-
Page 25: Declaration Of Conformity
Radio and Telecommunications Terminal Equipment Di- rective, 1999/5/EC, and that any applicable Essential Test Suite measurements have been performed. Kind of equipment: PRIVATE MOBILE RADIO 446 Type-designation: TX1000U Version (where applicable): This compliance is based on EN 300 296-1 V1.1.1 (2001-03) conformity with the following EN 300 296-2 V1.1.1 (2000-08)
