Specifications

Amplifier section
Output Power:
60 W (30 W + 30 W) at 6 Ω (10% THD)
Speakers/Impedance: 6 Ω – 16 Ω
Audio Input AUX: 500 mV/50 kΩ (at "AUX LVL 1")
250 mV/50 kΩ (at "AUX LVL 2")
125 mV/50 kΩ (at "AUX LVL 3")
Tuner section
FM tuning range: 87.50 MHz – 108.00 MHz
AM (MW) tuning range: 522 kHz – 1 629 kHz
DAB tuning range:
Band III: 174.928 MHz – 239.200 MHz
L-Band: 1 452.960 MHz – 1 490.624 MHz
CD player section
Dynamic range: 88 dB
Signal-to-noise ratio: 93 dB
Wow and flutter: Immeasurable
Speakers
Speaker units: 10 cm cone x 1 + 1.5 cm dome x 1
Impedance: 6 Ω
Dimensions (approx.): 140 mm x 231 mm x 195 mm
(W/H/D)
Mass (approx.): 1.7 kg each
Supplied Accessories
See page 3.
General
Power requirement: AC 230 V
Power consumption: 60 W (at operation)
11 W (on standby/display on)
0.95 W (on standby/display off)
Dimensions (approx.): 165 mm x 231 mm x 328 mm
(W/H/D)
Mass (approx.): 4.1 kg

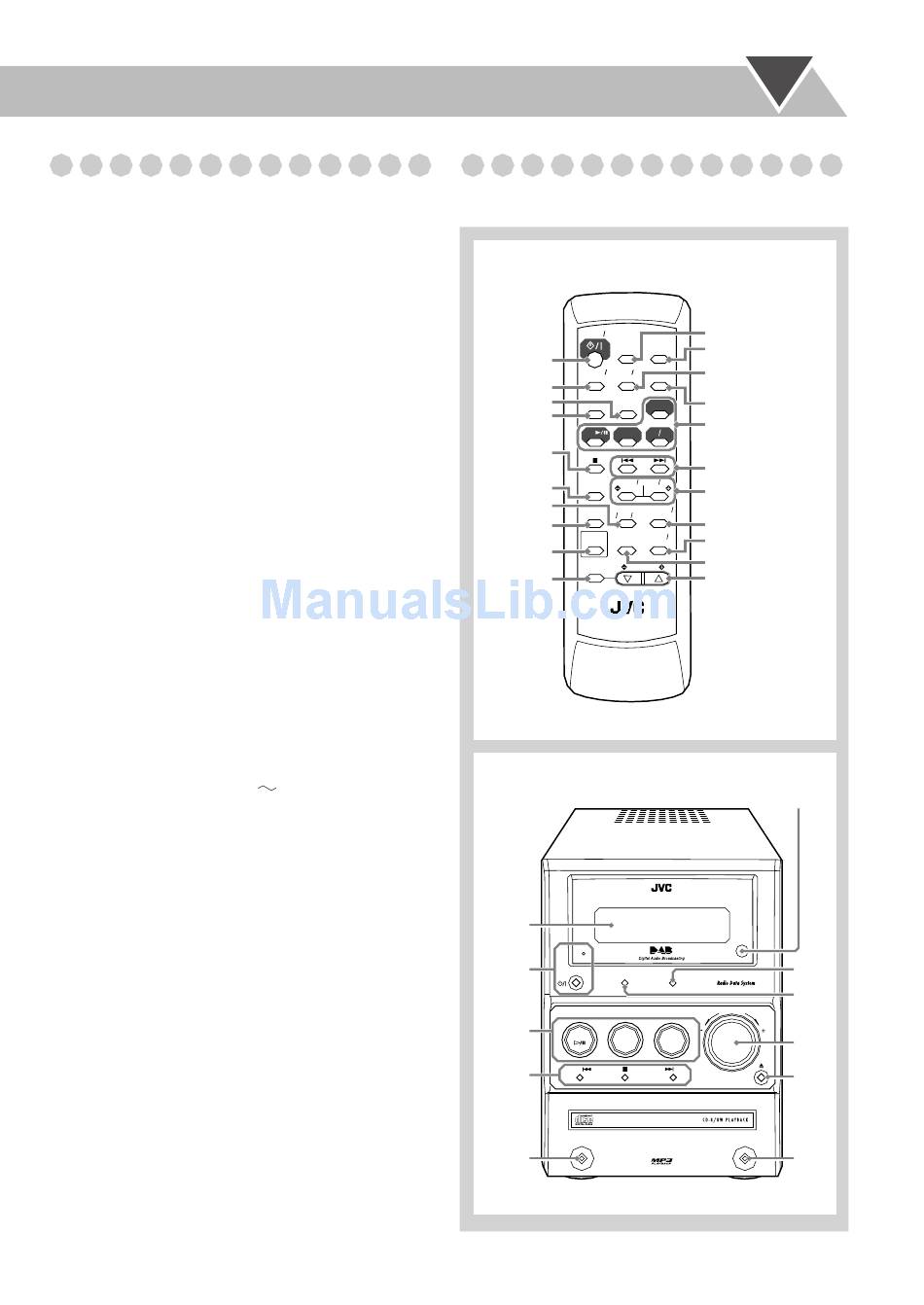

Parts Index

Refer to the pages to see how to use the buttons and controls.
, 50 Hz
Remote control
STANDBY ON
SLEEP
A. STANDBY
7, 21
CLOCK SET
TIMER ANT. P. CANCEL
11, 20, 21
9
DIMMER QP LINK
7, 11
CD DAB FM AM
8, 9, 12, 16
PTY SEARCH
NUMBER PRESET GROUP PTY
9
SELECT DOWN
13, 17, 19
DISPLAY REPEAT FM MODE
MODE TA News Info PLAY MODE
11, 12, 16
SOUND BASS
TURBO AHB PRO TREBLE
10
FADE
VOLUME
MUTING
10
Main unit
6
STANDBY
7
DIMMER
7, 8,
DAB/
CD
FM/AM
14, 18
DOWN
8, 9, 14,
18, 19
PHONES
7
11
11
8, 9, 11, 15,
18, 20, 21
9, 11, 18, 20, 21
AUX
7, 8, 9, 14, 18, 19
8, 9, 14, 18
8, 9, 11, 12, 15,
UP
16, 18, 20
8, 18, 19
10
10
7, 10
Remote
sensor
10
SOUND
TURBO
7, 11
VOLUME
AUX 7, 10
UP
8, 19
AUX
5
24
