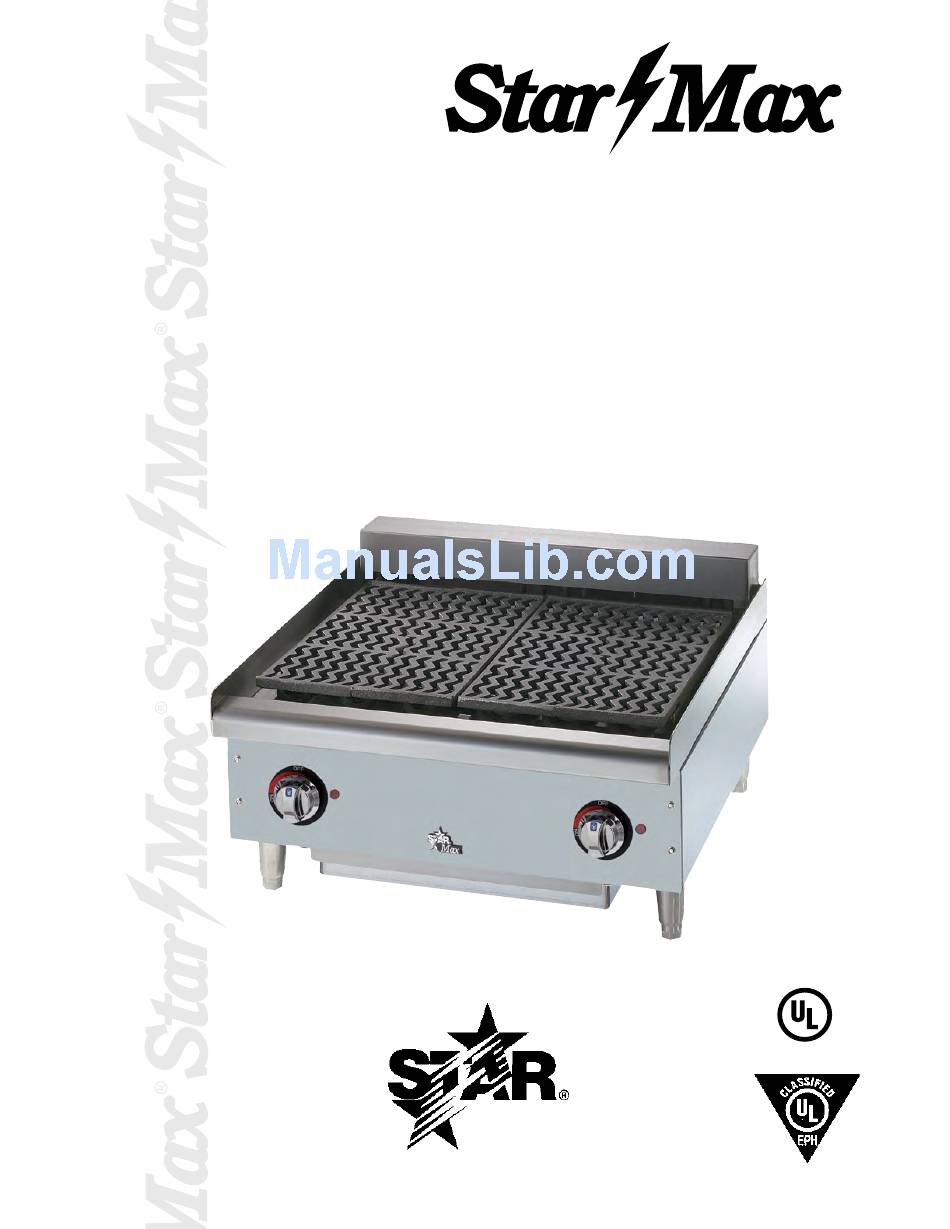

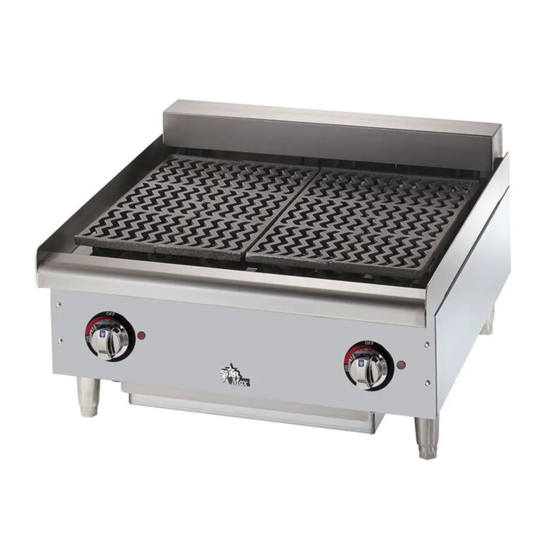

- Page 1 ® ELECTRIC COUNTER CHAR-BROILER MODEL 5124CF & 5136CF Installation and Operation Instructions 2M-Z16003 Rev. A 5/09/13 5124CF ® LISTED...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Specifications
Width Depth Height Installed Shipped 208V 31.8 21.8 21.8 13.8 396 sq in 24” 98 lb 145 lb 5124CF (2555 sq cm) (61cm) (45 kg) (66 kg) 240V 27.5 18.8 18.8 11.9 25 5/8” 14 1/4” (65 cm) (36 cm) 208V 47.6 27.6... -
Page 4: Installation
INSTALLATION The installation of this appliance should conform to the national electric code and local electric codes and ordinances and the local electric company rules and regulations. For your protection, we recommend that a qualified electrician install this appliance. The electrician should be familiar with electrical installations and local electrical requirements. - Page 5 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
- Page 8 Nameplate SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL - 5124CF SK2591 Rev. - 6/01/12...
-
Page 9: Parts List
PARTS LIST May 9, 2013, Rev. A Model; 5124CF & 5136CF Electric Counter Char-Broiler Fig No Part No Description Application 2I-7370 GASKET 2F-Z6858 SUPPORT WITH BUSHING H1-Y3115 5124CF ELEMENT STRAP H1-Y3266 5136CF H1-Z6115 5124CF ELEMENT HOUSING H1-Z6116 5136CF H1-Z6117 5124CF... - Page 10 PARTS LIST May 9, 2013, Rev. A Model; 5124CF & 5136CF Electric Counter Char-Broiler Fig No Part No Description Application 2C-8477 TINNERMAN CLIPS H3-612400 5124CF LINER ASSEMBLY H3-613600 5136CF G3-624302 SIDE LINER ASSEMBLY LEFT H1-Z6173 5124CF BAFFLE FRAME REAR H1-Z6085...
- Page 12 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
