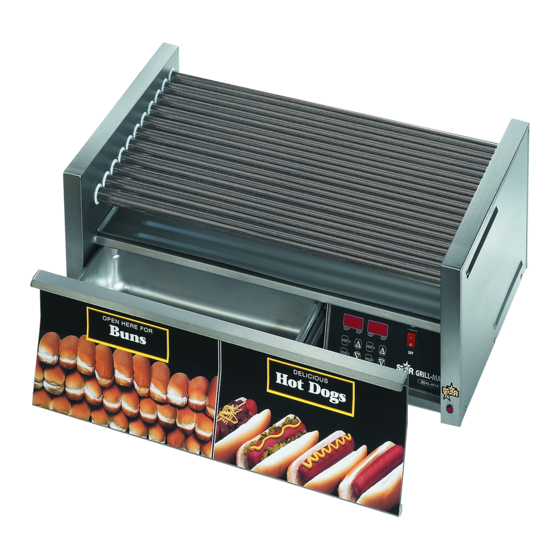

Star Grill-Max 20C Installation And Operation Instructions Manual
Roller grills
Hide thumbs
Also See for Grill-Max 20C:
- Installation and operation instructions manual (28 pages) ,
- Operation instructions manual (28 pages) ,
- Assembly, installation and operation instructions (28 pages)
Related Manuals for Star Grill-Max 20C
Summary of Contents for Star Grill-Max 20C

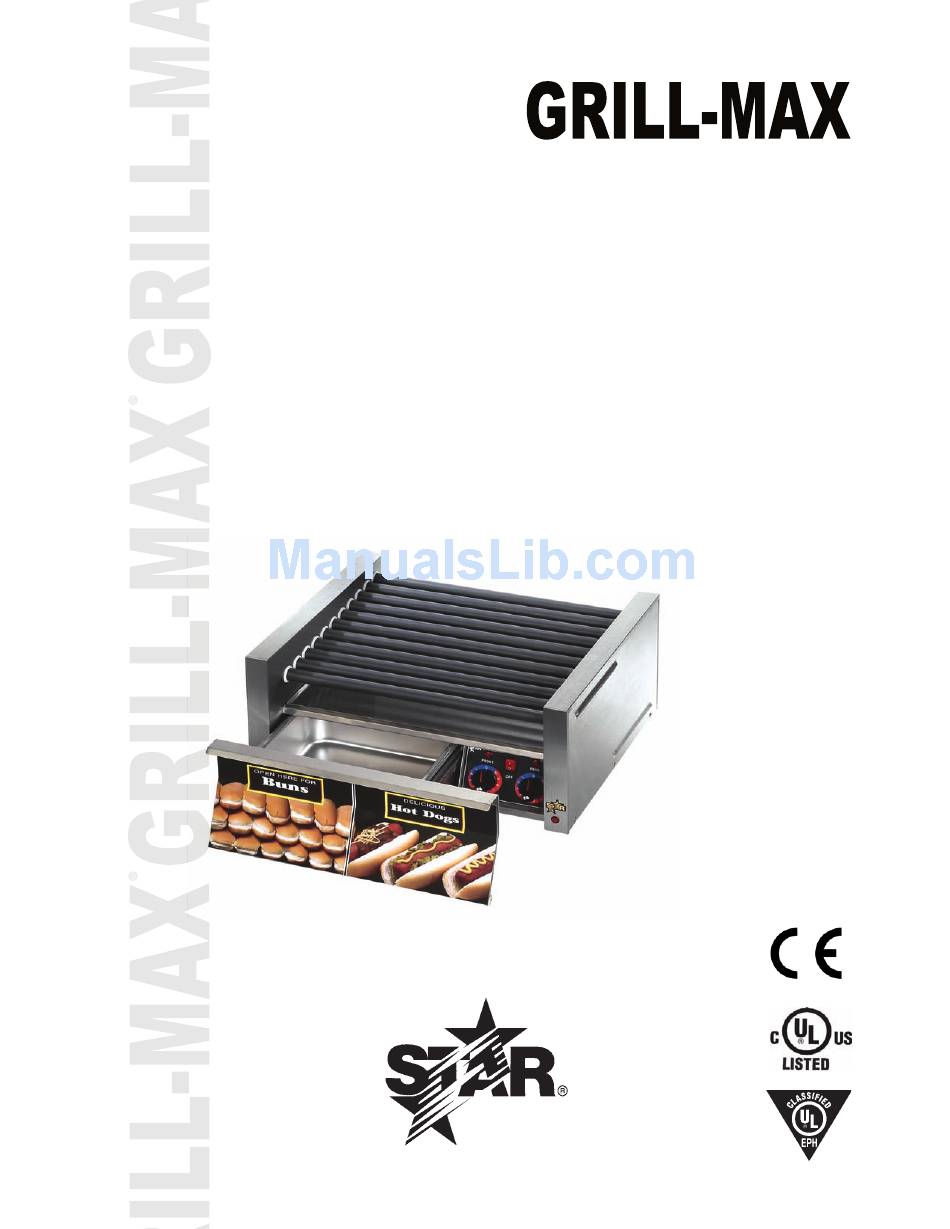

- Page 1 ® ROLLER GRILLS MODEL 20C, 30C, 45C, 50C & 75C 54IC/ISC, 90IC/ISC Infinite and Electronic Controls Installation and Operation Instructions 2M-Z8542 Rev. H 2/15/11 30SCBB...
- Page 2 RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE NUMBER GENERAL SAFTEY INFORMATION GENERAL INSTALLATION INFORMATION Connection Load GENERAL OPERATING INSTRUCTIONS Cleaning ELECTRONICALLY CONTROLLED: Start-up, Heating & Programing WARRANTY WIRING DIAGRAM 8-13 EXPLODED VIEW (C Series) 14, 15 PARTS LIST 20 MODEL SERIES 30 MODEL SERIES 17, 18 45 MODEL SERIES 19, 20 50 MODEL SERIES 21, 22 75 MODEL SERIES 23, 24 EXPLODED VIEW (iC/ISC Island Series) PARTS LIST 54 MODEL SERIES 27, 28 30 MODEL SERIES 29, 30 GENERAL SAFETY INFORMATION T his equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor CAUTION for use directly by the general public in food service locations. -
Page 4: General Installation Information
GENERAL INSTALLATION INFORMATION The grill should be connected to a wall type receptacle, a direct line or individual branch circuit. An individual branch circuit is preferred. If connected to an overloaded circuit the grill will not operate properly. The unit should be level when installed. Models equipped with bun boxes must be level to utilize the self-closing feature of the bun drawer. Adjustable 4-inch legs are standard on the 75 series and available for all other models. This grill is equipped for the voltage shown on the nameplate. It will operate on alternating current only, however, the specified voltage must be applied. CONNECTION LOAD: ELECTRONIC CONTROL INFINITE CONTROL MODEL SERIES WATTAGE MODEL SERIES WATTAGE 20SCE 20C, 20SC 30C, 30SC, 30CF, 30SCF, 30CBB, 30CE, 30SCE, 30SCEX, 30CBBE 30CBBC, 30SCBB, 30CDV 1150 30SCBBE 1150... -
Page 5: General Operating Instructions
The rollers clean most easily when hot. Use caution when cleaning to prevent burns and bodily injury. Clean the rollers with a clean wet cloth. Wipe from the ends to the center to prevent forcing debris into the roller seals. Do not allow the food product to build up and bake onto the roller surface. The exterior of the unit should be cleaned using a mild detergent or non-abrasive cleaner. Clean the entire unit daily to insure long life and satisfactory performance as well as to maintain an attractive appearance. Do not clean with water jet equipment. MAINTENANCE AND REPAIRS Contact the factory, a service representative or a local service company for service or required maintenance. Replacement cord sets must be purchased from Star Manufacturing International, Inc. -
Page 6: Start-Up, Heating & Programing
OPERATING PROCEDURES FOR ELECTRONIC GRILLS START-UP NOTE: Based on the product being heated, some experimentation is required to find the optimal HEAT When initially turning on power to the electronic controlled grill, it will be in the HOLD mode. The temperature and HEAT time to bring the product up displays will flash until the setpoint temperature to temperature in an acceptable amount of time. is reached. The grill will beep once when it is PROGRAMMING up to temperature. -
Page 7: Warranty
LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies. -
Page 16: Parts List
O-RING SILICONE, TUBE SEAL 20C/SC manuf. after 8/07 2P-Z6455 TUBE SEAL, SOLID 20C/SC manuf. before 8/07 2I-Z2175 O-RING SEAL 20C/SC 2P-Z2174 TUBE GUIDE 20C/SC 2R-Z5846 LEGS 20C/SC 2K-Z2895 ANTI SHORT BUSHING A5-Z7650 ELEMENT RETAINER - UPPER 20C/SC A5-Z7656 ELEMENT RETAINER - LOWER 20C/SC 2P-Z0584 TONGS NOT SHOWN 2E-Z3619 WIRE SET-230V MODELS NOT SHOWN 2E-Z8320 WIRE SET-120V MODELS 20C/SC NOT SHOWN PS-Z3018 TUBE ASSEMBLY SLEEVE Star Manufacturing International, Inc. -
Page 17: Model Series
CONTROL PANEL 30CE/SCE A5-RG3071 CONTROL PANEL 30CBBE/SCBBE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 18 ELEMENT WIRE, FRONT 30CE/SCE (ELECTRONIC CONTROLS) NOT SHOWN PS-Z3018 TUBE ASSEMBLY SLEEVE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
-
Page 19: Model Series
45CE/SCE A5-RG3071 1 CONTROL PANEL 45CBBE/SCBBE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 20 45CE/SCE (ELECTRONIC CONTROLS) NOT SHOWN PS-Z3018 -- TUBE ASSEMBLY SLEEVE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
-
Page 21: Model Series
50CE/SCE, mfg after 11/2010 PS-RG3092 1 CONTROL BOARD 50CE/SCE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 22 50CE/SCE (ELECTRONIC CONTROLS) NOT SHOWN PS-Z3018 -- TUBE ASSEMBLY SLEEVE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
-
Page 23: Model Series
75CE/SCE, mfg after 11/2010 A5-Z13640 1 ELECTRONIC CONTROL RG 240V 75CE/SCE, mfg after 11/2010 IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 24 75CE/SCE (ELECTRONIC CONTROLS) PS-RG7599 AR CHAIN REPAIR KIT 75 FLAT FLAT ROLLER CHAIN REP SER. KIT IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
-
Page 27: Model Series
2P-Z2174 TUBE GUIDE 2R-Z5846 FOOT-ROLLER GRILLS 54IC/ISC IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 28 WIRE SET IC/ISC 2E-Z9789 WIRE KIT ICE/ISCE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
-
Page 29: Model Series
TUBE GUIDE 2I-Z2175 O-RING SEAL 2P-Z6455 TUBE SEAL, SOLID IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc. - Page 30 WIRE SET 90IC/ISC 2E-Z9789 WIRE SET 90ICE/ISCE IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star Manufacturing International, Inc.
- Page 32 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 781-2777 www.star-mfg.com...
