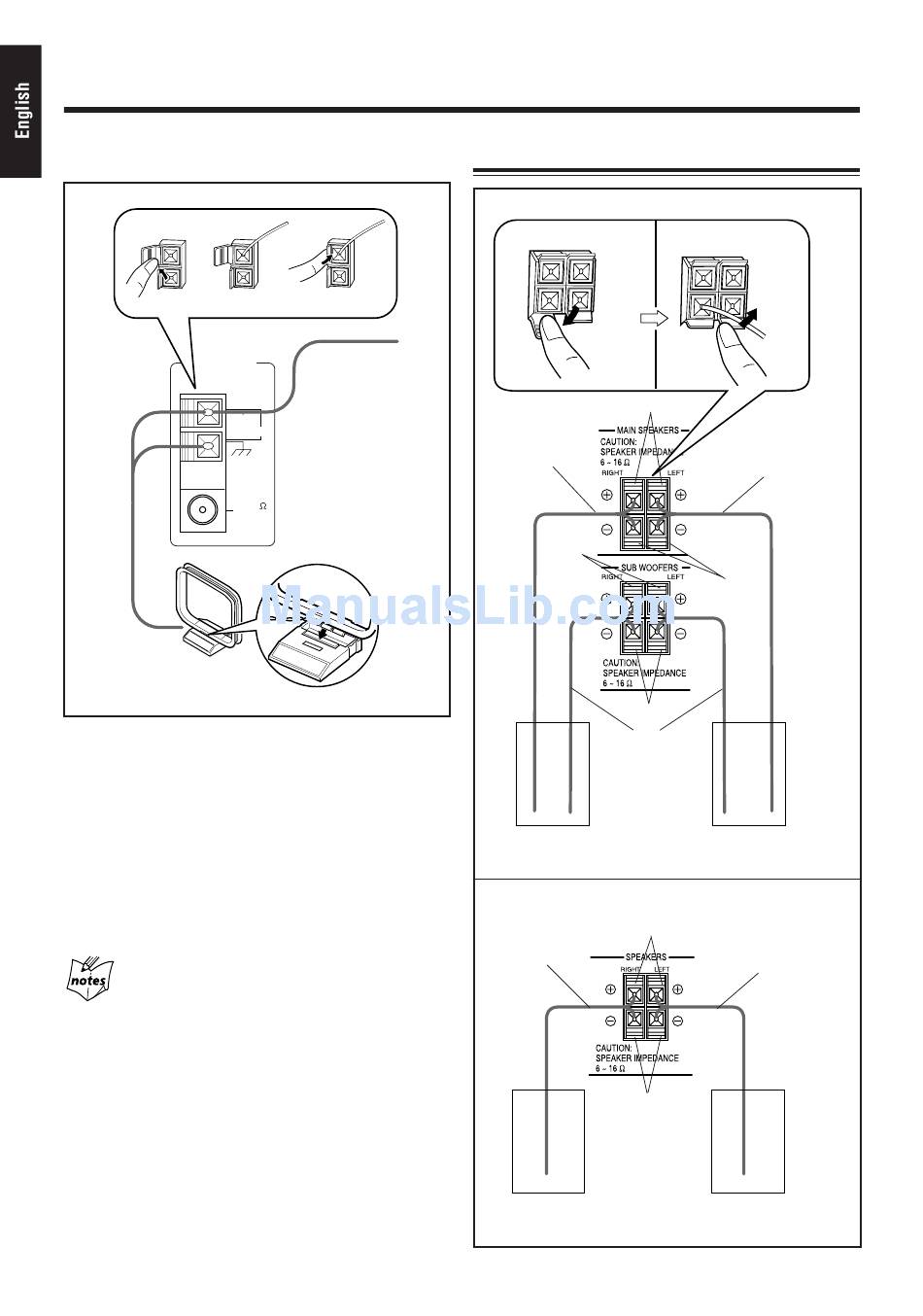

Connecting Speakers - JVC Compact Component System CA-MXJ500 Instructions Manual

AM (LW/MW) antenna
1 2
ANTENNA
AM EXT
AM LOOP
FM 75
COAXIAL
AM (LW/MW) loop
antenna (supplied)
1
Connect the AM (LW/MW) loop antenna to
the AM LOOP terminals as illustrated.
2
Turn the AM (LW/MW) loop antenna until
you have the best reception.
To connect an outdoor AM (LW/MW) antenna
When reception is poor, connect a single vinyl-covered wire
to the AM EXT terminal and extend it horizontally. (The AM
(LW/MW) loop antenna must remain connected.)
For better reception of both FM and AM (LW/MW)
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.

Connecting Speakers

3
Vinyl-covered wire
(not supplied)
FOR CA-MXJ552R/CA-MXJ550R/CA-MXJ500
– 7 –
FOR CA-MXJ750R
1
Blue
Speaker
cord
(blue/black)
Red
Black
Speaker cord
(red/black)
To right
speaker
Red
Speaker
cord
(red/black)
Black
To right
speaker
2, 3
Speaker
cord
(blue/black)
Black
To left
speaker
Speaker
cord
(red/black)
To left
speaker
