Summary of Contents for Blackridge 180 Hi-Flow

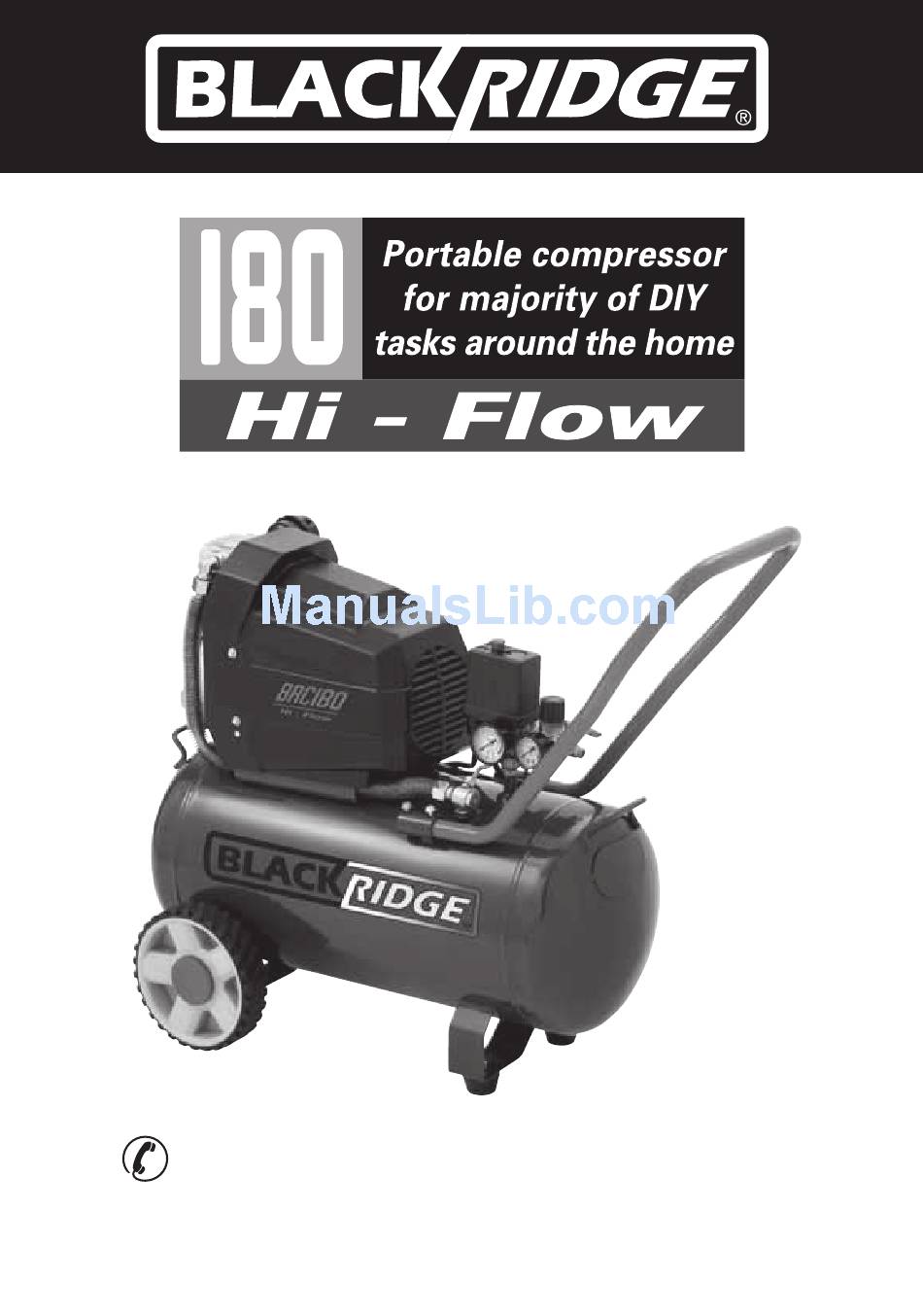

- Page 1 For service, spare parts or product information, please contact Smart Marketing Group Pty. Ltd. AUST. 1300 660 457 N.Z. 0800 474 876 02776 03/11...
-
Page 2: Table Of Contents
SUggeSTed ApplicATioNS coNTeNTS You may use most air tools with this compressor. Section page Some examples of tools are: Contents CLEANING • Engine cleaning gun Suggested Applications • Sandblaster kit Introduction • Air blow gun • Abrasion kit Guarantee 3 – 4 TOOLS General Safety Instructions 5 –... -
Page 3: Introduction
iNTrodUcTioN What is not covered. • Commercial use of compressor. Dear Customer, • Use of compressor in a commercial premises. Thank you for purchasing this compressor • Damage or deterioration due to transport. which has passed through our extensive quality assurance processes. - Page 4 compleTe WArrANTy STATemeNT – compreSSor groUp As soon as you have purchased the air Damage caused to attached equipment or third compressor, we recommend that you check to party accessories will not be covered under this make sure it is intact and that you read the warranty.
-
Page 5: General Safety Instructions
lUbricATioN oF compreSSor Work AreA Before attempting to operate this air compressor Work areas and benches should be kept tidy. the transport plug must be removed, thrown out Cluttered benches and work areas can cause and replaced with the oil breather. Check the accidents. - Page 6 do NoT AbUSe THe poWer cord remove AdjUSTiNg keyS ANd WreNcHeS Never yank or pull on the power cord to disconnect it from the mains supply socket. Never Form the habit of always checking to see that any carry or pull your air compressor by its power adjusting keys or wrenches have been removed cord.
-
Page 7: Personal Safety
cHeck dAmAged pArTS perSoNAl SAFeTy clothing Before using the air compressor it should be carefully checked to determine that it will operate Do not wear loose clothing, jewelry or anything properly and perform its intended function. that could get caught in moving machinery. Check for the correct alignment of moving parts Hair ensuring that they do not bind. -
Page 8: Electrical Information
elecTricAl dATA imporTANT This air compressor is fitted with a sealed electrical connection plug that is compatible with the mains power supply for Australia / New Zealand and meets the requirements of Australian Standards. This air compressor must be connected to a supply voltage that is equal to that stated on the rating label. -
Page 9: Components And Controls
pic. 1 compoNeNTS ANd coNTrolS pic. 1 1. Oil fill and breather 2. Oil sight glass 3. Oil drain bolt 4. Rear handle 5. Tank 6. Wheels 7. Tank drain tap 8. Twin rubber stoppers 9. Tank pressure gauge - large 10. -
Page 10: Operating Instructions
operATiNg iNSTrUcTioNS pic. 2 Unpacking Carefully unpack your air compressor. This air compressor is bulky and heavy, two (2) person Screw in oil lift required. Dispose of all packing material in an breather environmentally responsible manner. Assembly Your air compressor requires minor assembly before initial operation. - Page 11 rUbber STopper pic. 5 To attach the rubber stoppers to the bracket located on the bottom of the tank; 1. Undo the nut and remove the washers. 2. Push through the bracket and replace the washer. 3. Tighten the nut, Pic. 5. WHeelS pic.
- Page 12 Air FilTer pic. 8 The supplied air filter must be used. Failure to do so may result in irreparable damage and will void the warranty, Pic. 8 To install: 1. Carefully screw supplied air filter into the threaded hole on the top of the pump head. This only needs to be done up by hand.
- Page 13 rUNNiNg iN yoUr NeW Air USiNg THe Air compreSSor compreSSor before starting run through this simple list: before running in ensure that the following has been completed: 1. Transport plug removed and discarded, see Pic. 2, page 10. 1. The transport plug has been removed and 2.
- Page 14 pic. 10 The configuration of tools and accessories can be varied to suit your particular requirements. A basic recommended set up is shown in Pic. 10. When you have finished using your air compressor follow these simple steps: 1. Turn your air compressor OFF, using the ON/ OFF switch.
-
Page 15: Safety Valve
AdjUSTiNg THe preSSUre pic. 11 To adjust the outlet air pressure, use the red coloured Regulator regulator knob and check the pressure on the outlet pressure gauge, Pic. 11. If the pressure needs to be lower, turn anti clockwise. Outlet tap If the pressure needs to be higher, turn clockwise. - Page 16 Air TAp pic. 13 Rotate tap handle to open/close start/stop the air supply to pic. 13 your attached tool The air tap will need to be opened to allow the air Closed tap Open tap to flow to the attached air tool. To open air tap rotate the handle so that it lines up with the fittings and hose, not supplied.
-
Page 17: Maintenance
• Check the oil level as it may be low If these tips do not work please have your unit checked by an authorised service centre. Call BLACKRIDGE for your closest centre, Aust. 1300 660 457 N.Z. 0800 474 876. -
Page 18: Parts Diagram
pArTS diAgrAm Part Description SMG Part No. Part Description SMG Part No. Cylinder Head 95 BRC95CH Pressure Gauge Small 95 BRC95OPG Oil Breather 95 BRC95OB One Way Valve 95 BRC180OWV Sight Glass Seal 95 BRC95OLSG Handle 95 BRC180TH Sight Glass 95 BRC95OLSG Drain Tap 95 BRC95DT... -
Page 19: Technical Information
TecHNicAl iNFormATioN SUggeSTed ApplicATioNS You may use most air tools with this compressor. Specifications Some examples of tools are: Air Compressor BRC180 CLEANING Voltage 240V AC ~ 50Hz • Engine cleaning gun Motor Electric 2 ½ Hp • Sandblaster kit •... -
Page 20: Contact Information
Monday to Friday 8.30am - 5.30pm AEST do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 12 month warranty. Blackridge® is a registered trademark of Smart Marketing Group Pty Ltd...
