7. Connection examples

For connecting mikroProg™ with your target device a best solution is to provide 1x5 or 2x5
male headers which are connected with programing pins on microcontroller. You can see
several examples of connection schematics in the Section 10 of this manual.

Using 1x5 male headers

When connecting mikroProg™ with your device via 1x5 header make sure to use front side
of IDC10 connector (side with a knob and incision), Figure 7-2. 1x5 programming
headers are found in some of Mikroelektronika products, like mikromedia
boards, Figure 7-2.

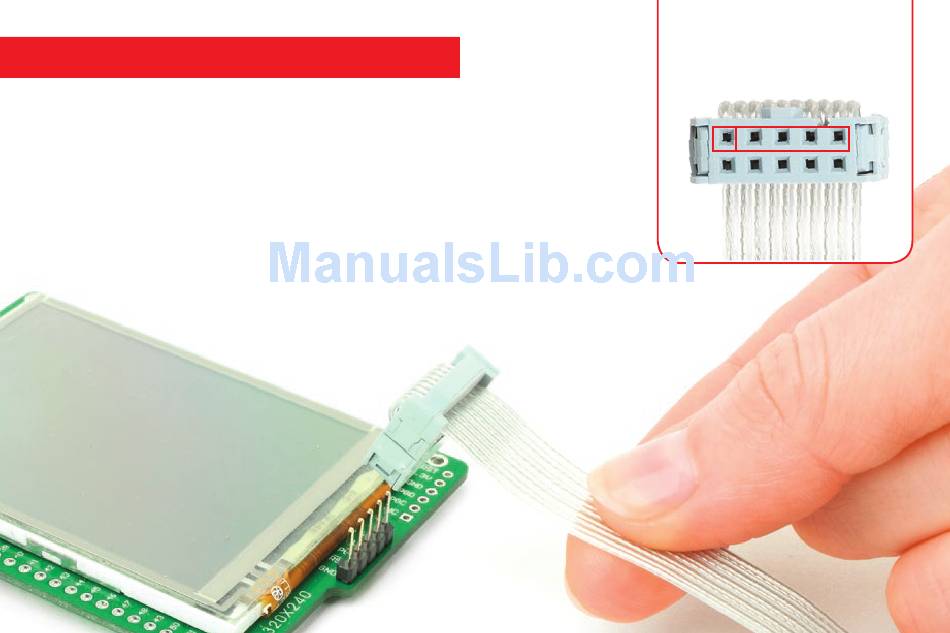

Figure 7-2:
Connecting
mikroProg™ to
mikromedia board
via 1x5 male header
Page 14
Figure 7-1: Use only front
row for programming
