Carrier HRVCCLHA Installation Instructions Manual page 6

DEHUMIDISTAT
MODE
POSITION
Off Any
Satisfied
Low
Call for dehumidification
Satisfied
Intermittent
Call for dehumidification
DEHUMIDISTAT
MODE
POSITION
Off Any
Satisfied
Intermittent
Call for dehumidification
Satisfied
Continuous
Call for dehumidification
Satisfied
Recirculation
Call for dehumidification
Any Any
NOTE: This control is designed to be used primarily with
installations which are independent of a forced air system.
1. Initially the switch is off. All LEDs are off and HRV is
inoperative
2. First push of mode button puts HRV into intermittent mode.
The HRV operates at high speed when there is a call for
dehumidification. Intermittent and exchange LEDs are
illuminated. When dehumidistat is satisfied, HRV shuts
down and exchange LED goes out.
3. Next push of mode button puts system in continuous mode.
Continuous and exchange LEDs remain on. The HRV
operates at high- -speed
dehumidification and low- -speed when dehumidistat is
satisfied.
4. Next push of mode button and exchange puts system in
circulation mode. HRV operates in high speed at all times.
Circulation LED remains on. When there is a call for
dehumidification, exchange LED is on and HRV exchanges
air with outside. When dehumidistat is satisfied, HRV
dampers close which recirculates indoor air. The exchange
LED goes off.
5. The maintenance light illuminates every 3 months to
indicate filter should be cleaned. It is reset by opening the
door to the HRV.
NOTE: The standard and automatic controls sense humidity not
temperature. Either control must be located in an area where it will
continually monitor fresh air circulating within the home. Install
HRV wall control as close as possible to main system thermostat
and follow same guidelines as installing a thermostat, (locate
approximately 5 ft. (1.5 m) above floor, mount on an inside
partitioning wall, etc.).
NOTE: The HRV may be controlled using the Infinity System
Control. The HRV may be connected using either a NIM or a
4- -Zone Damper Module. See the appropriate instructions if using
the NIM of a 4- -Zone Damper Module for connection instructions.
Blower interlock relay is not needed for use with the Infinity
system control. The Infinity System Control will simultaneously
control the HRV and the indoor blower.
Push Button Timers may be used and are connected to the HRV as
shown in Fig. 12. However, the Infinity system should be set to
continuous fan to ensure that the fresh air is circulated in the home.
In a Zoned System, at least one zone should be set to continuous
fan.
Table 3 – Standard Control
OPERATION
Off Closed to outside
Air exchange with
Open to outside
outside
Table 4 – Automatic Control
OPERATION
Off
Air exchange with outside
Recirculation
Air exchange with outside
Any
blower during calls for
DAMPER
FAN SPEED
POSITION
Off
Low
High
DAMPER FAN
POSITION SPEED
Closed to outside Off
Off
High
Open to outside
Low
High
Closed to outside High
Open to outside High
Any
J3
ELECTRONIC CONTROL
9
BOARD
8
7
6
OL 5
OC 4
I 3
J1
1 4 7
2 5 8
3 6 9
(OPTIONAL)
60 MINUTE TIMER
(OC)
BLACK – (J3- 4)
COMMON
TERMINAL
STRIP
BACK OF PUSH BUTTON SWITCH

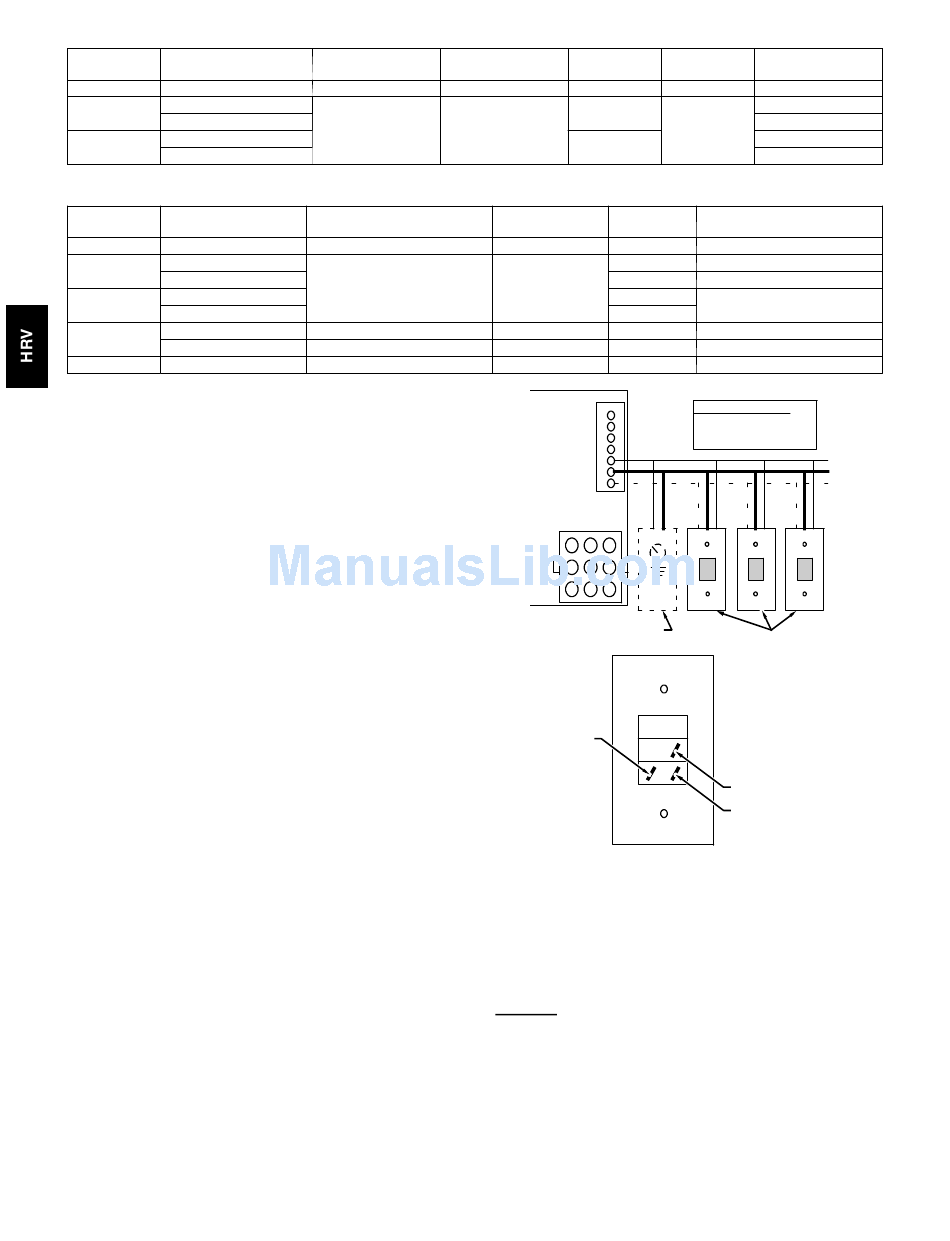

Fig. 12 - - Push Button Timer Wiring Layout
OPERATING THE HRV WITH THE
INFINITY CONTROL
The ventilator has four settings in heating mode and three settings
in cooling mode.
Heating:
AUTO - - the ventilator selects the speed based on indoor humidity
and outdoor temperature. It may cycle on/off every 30 minutes
depending on humidity and outside temperature.
LOW - - low speed all of the time.
HIGH - - high speed all of the time.
DEHUM - - will only turn on if humidity is 3% over setpoint. The
speed is determined by indoor humidity and outdoor temperature.
6
AIR EXCHANGE
ON LED
LED
Off Off
Off
On
On
Off
On
INDICATOR LEDS
Off
Intermittent ON
Intermittent and Exchange ON
Continuous and Exchange ON
Recirculation ON
Recirculation and Exchange ON
Maintenance (open door)
THE WIRES FROM THE SWITCH
YELLOW – INDICATOR, (J3- -3)
BLACK – COMMON, (J3- -4)
RED – SWITCH, (J3- -5)
RED
BLACK
YELLOW
(OPTIONAL)
PUSH BUTTON SWITCHES
(5 SWITCHES MAXIMUM)
(I)
YELLOW – (J3- 3)
INDICATOR
TERMINAL STRIP
RED – (J3- 5)
SWITCH
TERMINAL STRIP
(OL)
A98386
