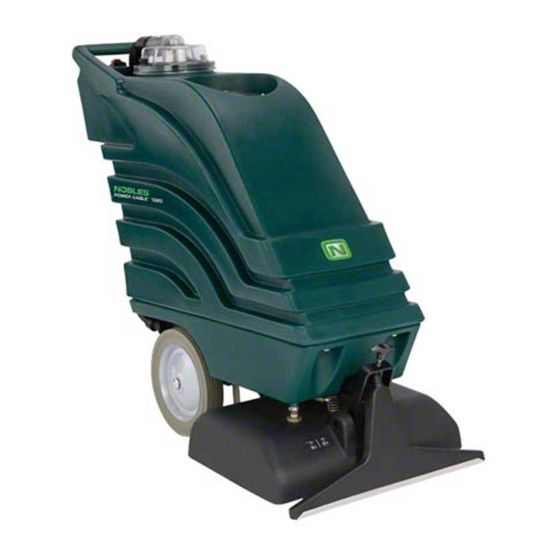

Nobles self–contained carpet extractor
Hide thumbs
Also See for Power Eagle 1016:
- Operator and parts manual (16 pages) ,
- Brochure (2 pages) ,
- Specifications (1 page)
Table of Contents
Advertisement
U.S. Patent No.: 4,956, 891
Model No.:
608540 – 1016
609233 – 1016 (Can.)
608527 – 1020
609232 – 1020 (Can.)
NOBLES
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.
CUSTOMER SERVICE: 1-800-365-6625
FAX: 1–800–678–4240
Find... Go To..
Home
Power Eagle
1016/1020
Self–Contained Carpet Extractor
Operator and Parts Manual
t
608529
Rev. 00 (09-99)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nobles Power Eagle 1016
Summary of Contents for Nobles Power Eagle 1016
- Page 1 U.S. Patent No.: 4,956, 891 Model No.: Operator and Parts Manual 608540 – 1016 609233 – 1016 (Can.) 608527 – 1020 609232 – 1020 (Can.) NOBLES 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. 608529 CUSTOMER SERVICE: 1-800-365-6625 FAX: 1–800–678–4240 Rev. 00 (09-99) Find...
-
Page 2: Parts List
PARTS LIST RECOVERY TANK GROUP Power Eaglet 1016/1020 (06–99) Find... Go To.. Home... -
Page 3: Recovery Tank
NUT, FLANGED METAL 1–1/2 FPT 102569 GASKET, TANK 602497 ASM., DOME 140227 SCREW, STUD, 1/4–20X5 240217 KNOB, DOME 608504 DECAL, POWER EAGLE 1016 140037 WASHER, NYLON 608528 DECAL, POWER EAGLE 1020 100142 GASKET, RECOVERY DOME 608186 DECAL, NOBLES LOGO 160464 HOSE, VAC, 11/2”X53”... - Page 4 PARTS LIST CHASSIS GROUP PUMP BREAKDOWN Power Eaglet 1016/1020 (06–99) Find... Go To.. Home...
- Page 5 PARTS LIST CHASSIS GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 100118 GASKET, MOTOR VAC, 120V 140823 SCREW, 10–24X5/8 100038 GASKET, MOTOR VAC, 230V/240V 140310 CLAMP, HOSE 130996 MOTOR, VAC 5.7/3 STG 120V 150511 FITTING, BARB 1/4FX3/8H 130403 MOTOR, VAC 5.7/2 STG 230V/240V 140008 WASHER, FLAT 140501...
-
Page 6: Control Console Group
PARTS LIST CONTROL CONSOLE GROUP Power Eaglet 1016/1020 (06–99) Find... Go To.. Home... - Page 7 PARTS LIST CONTROL CONSOLE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 140879 SCREW, 6–32X3/4 130670 BREAKER, CIRCUIT 12AMP(120V) 130304 RECTIFIER, BRIDGE 600V 140549 NUT, 3/8 CONDUIT 140534 NUT, 6–32 140504 NUT, CONDUIT LOCK 1/2” 140885 SCREW, 1/4–20X1/2 603041 GASKET, SWITCH BOX 130441 SWITCH, BRUSH/SPRAY, 120V...
-
Page 8: Parts List Of Control Console Group
PARTS LIST CONTROL CONSOLE GROUP (240V EMC MODEL) Power Eaglet 1016/1020 (01–00) Find... Go To.. Home... -
Page 9: Control Console Group (240V Emc Model)
PARTS LIST CONTROL CONSOLE GROUP (240V EMC MODEL) PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 140879 SCREW, 6–32X3/4 140504 NUT, CONDUIT LOCK 1/2” 130304 RECTIFIER, BRIDGE 600V 600383 FILTER, RFI 140534 NUT, 6–32 130747 BREAKER, CIRCUIT 1.2AMP 140885 SCREW, 1/4–20X1/2 140519 NUT, KEP 130761... -
Page 10: Brush Group
PARTS LIST BRUSH GROUP Power Eaglet 1016/1020 (01–00) Find... Go To.. Home... - Page 11 PARTS LIST BRUSH GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 240194 KNOB, HEIGHT ADJ. 140890 SCREW, 10–24X1/2 230258 STUD, THREADED 140887 SCREW, 10–24X3/8 230461.BK BRACKET, HEIGHT ADJ., BLACK 140233 SCREW, 3/8–16X1–3/4 140564 SCREW, SHOULDER, 3/8X3/4 140036 WASHER, FLAT 3/8 140919 SPACER 120617...
-
Page 12: Electrical Diagrams
ELECTRICAL DIAGRAMS 120V WIRING DIAGRAM VACUUM 12 AMPS BRUSH 1.5 AMPS PUMP 1.5 AMPS WHT/BLK WHT/RED WHT/ORG WHT/GRN WHT/ORG WHT/RED WHT/BLK GRN/YLW 230V WIRING DIAGRAM GRN/YLW WHT/BLK WHT/BLK WHT/RED WHT/RED WHT/ORG WHT/ORG Power Eaglet 1016/1020 (06–99) Find... Go To.. Home... -
Page 13: 240V Emc Ladder Diagram
ELECTRICAL DIAGRAMS 240V EMC LADDER DIAGRAM 230 VAC BLK/WHT RED/WHT REF LEGEND RED= Red BLK= Black WHT= White ORG= Orange BLU= Blue BRN= Brown Switch, Vac Switch, Brush Motor, Vacuum Pump Motor, Brush SD1= Valve, Solenoid CB1 = Circuit Breaker F 1= Filter, RFI F 2=... - Page 14 OPTIONS 127mm (5 in) HAND TOOL PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 200505 TOOL, HAND (COMPLETE) CAP, VALVE 200431.BK TOOL, HAND 150606 NIPPLE, HEX 1/4 150913 COUPLER, QUICK 150403 ELBOW, ST 1/4 45 150615 NIPPLE, CLOSE 200992 BODY, SPRAY 1/4F 200905 TRIGGER, HAND TOOL 200996...
-
Page 15: Upholstery Tool
OPTIONS UPHOLSTERY TOOL PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 200540 TOOL, UPHOL. (COMPLETE) 200844 HOSE, VACUUM 200845 COVER 200837 HOSE, SOLUTION 200843 GASKET 200848 FITTING 190631 KIT, VALVE ASM. 200842 FILTER 210226 VALVE, LP 200841 SCREEN, FILTER 200991 NOZZLE 150606 FITTING, 1/4MX1/4M... - Page 16 OPTIONS 330mm (13 in) FLOOR TOOL 12 13 PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 600048 FLOOR TOOL (COMPLETE) 150913 COUPLER, QUICK 200403.BK TOOL, FLOOR 160170 HOSE, SOLUTION, LP 200939 SHOES, S/S 150606 NIPPLE, HEX 1/4” 200927 ASM., GRIP, ADJ. 140058 WASHER 200912...
