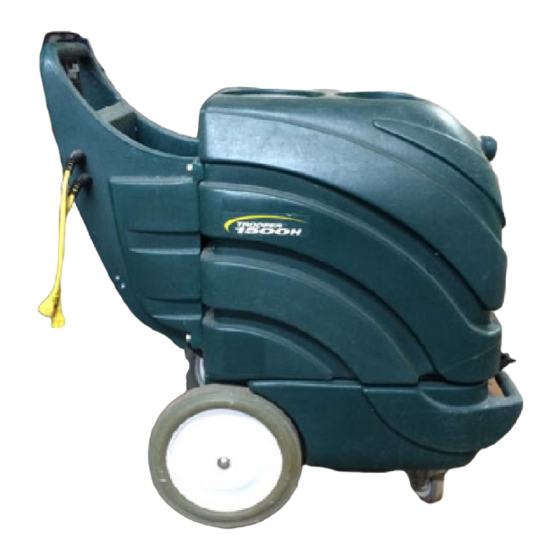

Nobles Explorert 1500H Operator And Parts Manual

Carpet extractor with heat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model No.:
608551
608552 - Pac
TENNANT COMPANY
701 NORTH LILAC DRIVE
MINNEAPOLIS, MN 55422
MAILING ADDRESS:
TENNANT COMPANY
P.O. BOX 1452
MINNEAPOLIS, MN 55440- -1452
NOBLES CUSTOMER SERVICE:
1- - 800- - 365- - 6625
FAX: 1- - 800- - 678- - 4240
TECHNICAL SUPPORT:
1- - 800- - 522- - 7839 EXT. 5356
Home
Explorer
Find... Go To..
1500H
t
Carpet Extractor with Heat

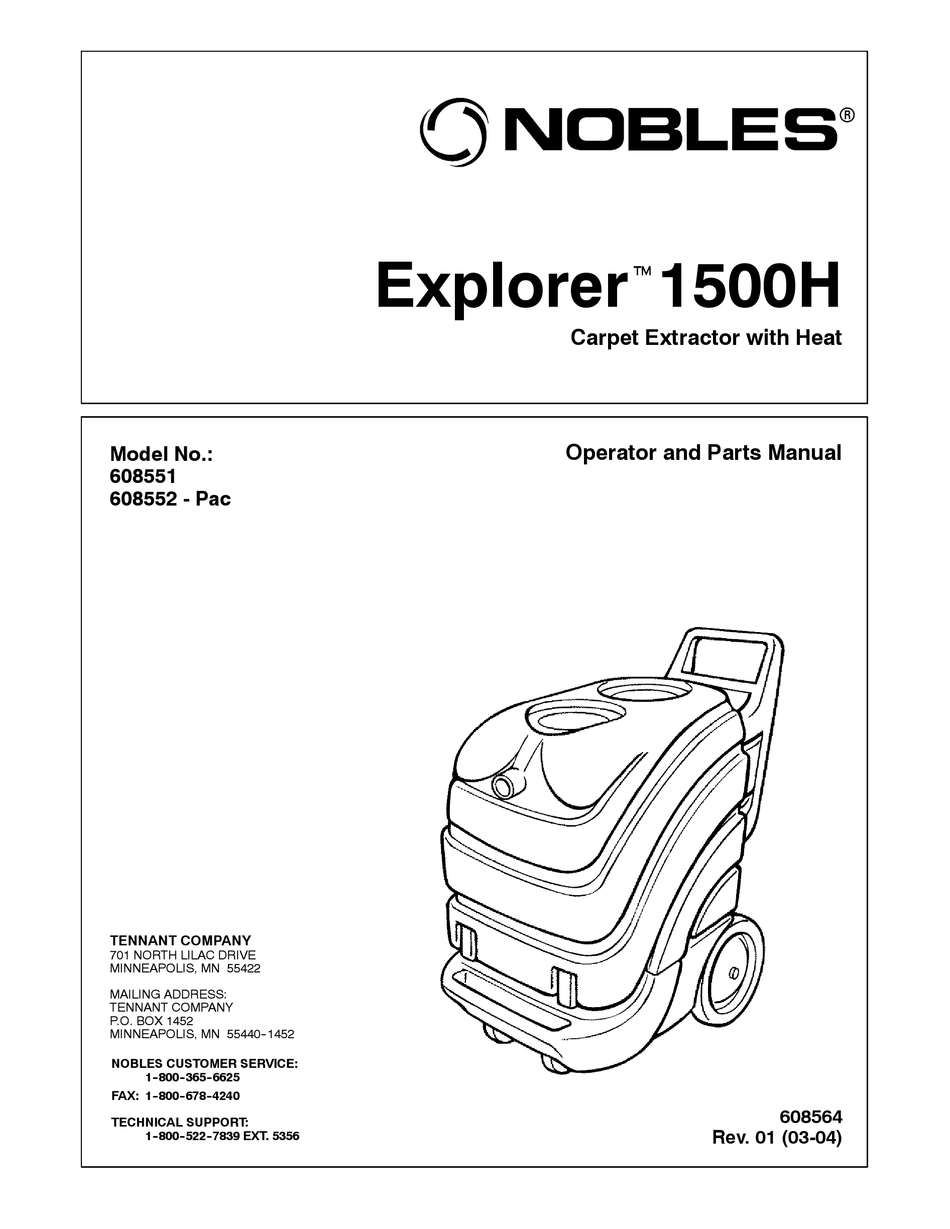

Operator and Parts Manual
Rev. 01 (03-04)
R
608564

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Explorert 1500H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nobles Explorert 1500H

Summary of Contents for Nobles Explorert 1500H

  • Page 1 701 NORTH LILAC DRIVE MINNEAPOLIS, MN 55422 MAILING ADDRESS: TENNANT COMPANY P.O. BOX 1452 MINNEAPOLIS, MN 55440- -1452 NOBLES CUSTOMER SERVICE: 1- - 800- - 365- - 6625 FAX: 1- - 800- - 678- - 4240 608564 TECHNICAL SUPPORT: Rev. 01 (03-04) 1- - 800- - 522- - 7839 EXT.
  • Page 2 Home Find... Go To..

  • Page 3: Table Of Contents

    1999, 2004 Tennant Company Printed in U.S.A. subsidiaries. Nobles is a registered United States trademark of Tennant Company. This machine will provide excellent service. However, Explorer is a United States trademark of Tennant Company. the best results will be obtained at minimum costs if: The machine is operated with reasonable care.

  • Page 4: Safety Precautions

    Expose To Rain. Store Indoors. Use manufacturer supplied or approved replacement parts. All repairs must be performed by a qualified service person. Do not modify the machine from its original design. Explorert 1500H (03- -04) Home Find... Go To..

  • Page 5: Grounding Instructions

    SAFETY LABEL The safety label appears on the machine in the location indicated. Replace label if it becomes damaged or illegible. WARNING LABEL - - Located on back side of machine. Explorert 1500H (03- -04) Home Find... Go To..

  • Page 6: Machine Components

    6. Accessory Tool Solution Hose 14. Power Cord Heater Quick Coupler 15. Hour Meter 7. Casters 16. Pressure Control Valve 8. 305mm (12 in.) Stair Climbing Wheels 17. Pressure Gauge 18. Recovery Tank Drain Hose Explorert 1500H (03- -04) Home Find... Go To..

  • Page 7: Machine Setup

    FIG. 3 This will prevent a circuit overload. Do not activate heater if green indicator does not light. FOR SAFETY: Do not operate machine unless cords are properly grounded. Explorert 1500H (03- -04) Home Find... Go To..

  • Page 8: Operating Floor Tool

    ATTENTION: DO NOT switch from PREHEAT to CLEAN mode when pump switch is activated, FIG. 7 pump and gauge damage may occur (not covered by warranty). Always turn pump switch off before turning preheat/clean knob. Explorert 1500H (03- -04) Home Find... Go To..

  • Page 9: Operating Hand Tool

    ATTENTION: Be certain the circuit indicator light Squeeze trigger for five seconds after turning off is on to verify that two separate circuits are being the machine. used. Explorert 1500H (03- -04) Home Find... Go To..

  • Page 10: Draining Tanks

    (bleeder hose supplied with machine) (Figure 11). ATTENTION: Relieve water pressure from accessory tool before disconnecting hose. Squeeze trigger for five seconds after turning off the main power switch. FIG. 12 Explorert 1500H (03- -04) Home Find... Go To..

  • Page 11: Daily Maintenance

    (Every 20 Hours of Use) 1. Check floor tool for loose shoes. If loose, tap back in place with rubber mallet. 2. Inspect vacuum hose for holes and loose cuffs. FIG. 15 Explorert 1500H (03- -04) Home Find... Go To..

  • Page 12: Quarterly Maintenance

    Front Two Bearing Surfaces View of Pump FIG. 17 e. Replace grease cover and black plug. Check pump periodically and scrape out (do not wash out) any excess grease from pump cavity. Explorert 1500H (03- -04) Home Find... Go To..

  • Page 13: Trouble Shooting

    Turn off vacuum, empty tank. Water not heating. Thermostat failed. Contact Service Center. Loose wires to heater. Contact Service Center. Limit Thermostat breaker tripped. Reset Limit Thermostat. Limit Thermostat breaker has failed. Contact Service Center. Explorert 1500H (03- -04) Home Find... Go To..

  • Page 14: Specifications

    14A, 120V, 1700 watts, 77 SEALED WATER LIFT 340.3 cm (134 in.) DECIBEL RATING AT OPERATOR’S EAR, 81dB(A) INDOORS ON CARPET MACHINE DIMENSIONS 483mm (19 in.) 965mm (38 in.) 965mm (38 in.) Explorert 1500H (03- -04) Home Find... Go To..

  • Page 15: Electrical Diagrams

    ELECTRICAL DIAGRAMS 120V Wiring VACUUM PUMP HEATER INDICATOR LIGHT POWER CORD HOUR METER POWER CORD HEATER SOLUTION PUMP VACUUM MOTOR Explorert 1500H (03- -04) Home Find... Go To..

  • Page 16: Parts List

    PARTS LIST HANDLE GROUP Explorert 1500H (03- -04) Home Find... Go To..
  • Page 17 SCREW, #10- -24X3/4 FLTPHL ∇ 613284 LABEL, WARNING EXTRACTORS 140328 CLAMP, CABLE 3/8 140197 SCREW, #10- -24X0.38 TRSPHL, 140552 NUT, #10- -24 NYLOCK ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS Explorert 1500H (03- -04) Home Find... Go To..

  • Page 18: Upper Housing Group

    PARTS LIST UPPER HOUSING GROUP Explorert 1500H (03- -04) Home Find... Go To..
  • Page 19 701061 DPLUG, ASSY, HOSE, DRAIN ∇ 230831 KNOB, DRAIN HOSE 230882 STRAP, DRAIN STOPPER 140056 WASHER, 3/8 FENDER 140955 FITTING, PLUG, DRAIN HOSE ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS Explorert 1500H (03- -04) Home Find... Go To..

  • Page 20: Chassis Group

    PARTS LIST CHASSIS GROUP Explorert 1500H (03- -04) Home Find... Go To..
  • Page 21 140918 SPACER, .20X.31X1.00 140825 SCREW, #6X1/2 PANPHL ∇ 54 180440 DHEATER ASSY, 120V, 1700W COMPLETE 140519 NUT, #10- -24 KEP 102566 INSULATOR, HEATER ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS Explorert 1500H (03- -04) Home Find... Go To..

  • Page 22: Plumbing Group

    PARTS LIST PLUMBING GROUP Explorert 1500H (03- -04) Home Find... Go To..
  • Page 23 ASM, HEATER OUTLET TUBE 120198 DECAL, CLEAN - - VALVE KNOB 600546 FERRULE S/S FOR #600545 120199 DECAL, PREHEAT - - VALVE KNOB 130692 CONTROL, THERMOSTAT ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS Explorert 1500H (03- -04) Home Find... Go To..

  • Page 24: Solution Pump Group

    SAFETY COVER, PUMP 190317 DPULLER, VALVE, POPPET SEAT 190305 GREASE FITTING, TWIN PISTON 190022 DGUN, GREASE (METAL) 190309 SET SCREWS, PUMP ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS N/S= NOT SHOWN Explorert 1500H (03- -04) Home Find... Go To..

  • Page 25: Options

    TOOL, CREVICE 160106 HOSE, SOLUTION 200975 DFITTING JET #5002 150100 FITTING, 1/4MX1/8F BUSHING 210014 DVALVE, TOGGLE W/NUT 150913 DFITTING, 1/4F QD FML COUPLER ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS Explorert 1500H (03- -04) Home Find... Go To..

  • Page 26: 330Mm (13 In.) High Pressure Floor Tool

    OPTIONS 330mm (13 in.) HIGH PRESSURE FLOOR TOOL Explorert 1500H (03- -04) Home Find... Go To..
  • Page 27 140520 NUT, 1/4 PUSH 200988 DFITTING, TIP 11002 150403 FITTING, E45 04PM/04PF 200994 DCAP, NOZZLE, SPRAY #8002 150913 DFITTING, QDC PF04 SER. 60 ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS Explorert 1500H (03- -04) Home Find... Go To..

  • Page 28: 406Mm (16 In.) High Pressure Floor Tool

    OPTIONS 406mm (16 in.) HIGH PRESSURE FLOOR TOOL Explorert 1500H (03- -04) Home Find... Go To..
  • Page 29 140520 NUT, 1/4 PUSH 200985 DFITTING, TIP 95015 150403 FITTING, E45 04PM/04PF 200994 DCAP, NOZZLE, SPRAY #8002 150913 DFITTING, QDC PF04 SER. 60 ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS Explorert 1500H (03- -04) Home Find... Go To..

  • Page 30: Upholstery Tool Group

    FITTING, BRS, STR, PM04 X 1.38 HX NIP. 201016 DFITTING, JET, 1/8K 200838 SCREW, #6- -32X.75 150913 DFITTING, QDC PF04 SER 60 200840 TRIGGER, UPHOLSTERY TOOL ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS Explorert 1500H (03- -04) Home Find... Go To..

  • Page 31: Solution And Vacuum Hoses Group

    FITTING, BRS, QDC, PM04, SER60 160451 DCONNECTOR, VAC HOSE 1- -1/2” 150615 FITTING, BRS, STR, PM04, 220040 DBAG, HOSE W/DRAW STRING CLOSE, T (OPTIONAL) ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS Explorert 1500H (03- -04) Home Find... Go To..
