Harman Kardon AVR1550 Service Manual

Avr1550 audio/videoreceiver
Hide thumbs Also See for AVR1550:

Advertisement

Table of Contents

See also: Owner's Manual
AVR 1550
Audio/Video Receiver
SERVICE MANUAL
®
Power for the Digital Revolution
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVR1550 and is the answer not in the manual?

Questions and answers

Balaji
July 13, 2025

Power soft switch ON after some seconds the power gone off. The displays also on and off

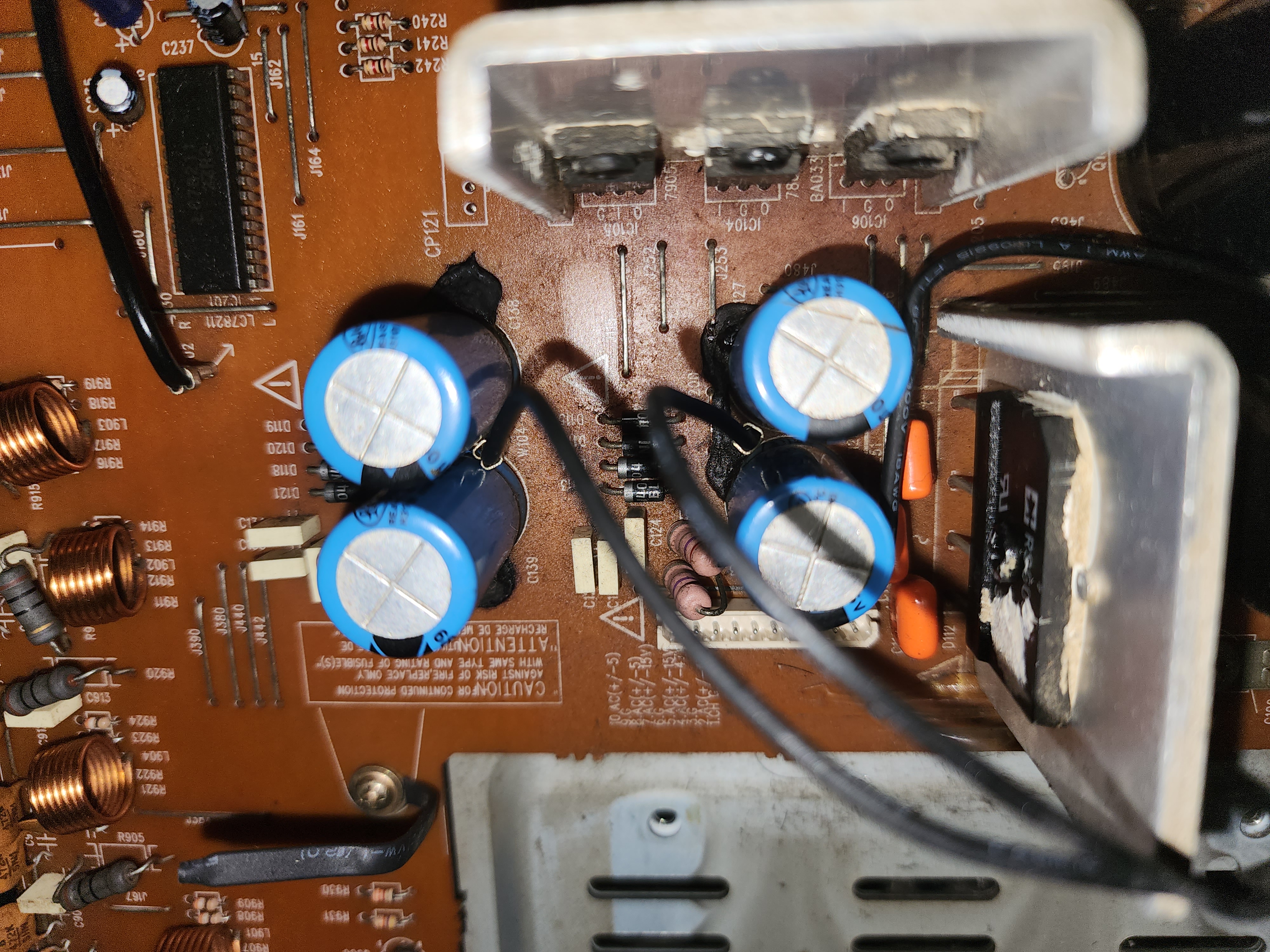

User image 6873f2ef760d1
0

Subscribe to Our Youtube Channel

Related Manuals for Harman Kardon AVR1550

Summary of Contents for Harman Kardon AVR1550

  • Page 1 AVR 1550 Audio/Video Receiver SERVICE MANUAL ® Power for the Digital Revolution ™...

  • Page 2: Technical Specifications

    Height measurement includes feet and chassis. All features and specifications are subject to change without notice. Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of Harman International Industries, Inc. *Manufactured under license from Dolby Laboratories.

  • Page 3: Troubleshooting Guide

    Power switch 2 is red due to possible short and speaker ends • Amplifier is in protection mode • Contact your local Harman Kardon service depot due to internal problems No sound from surround or • Incorrect surround mode •...
  • Page 5 CONN-PHJAC 6.35 ST HORZ EST-J6313 55124350 AC PUN BRACKET HEADPHONE 55178000 SWIPUSH POWER SWITCH 5.0A 250.0V 100MI0OHM 1T 2P 55498980 AC MLD BUTTON INDICATOR STAND-BY AVR1550 -- 55177810 AC DEC BUTTON POWER HIPS 55498880 AC DEC BUTTON STANDBY AVR1550 55510880...
  • Page 6 55127300 15 WASHER-SPR 3.1MM 6.2MM 0.8MM Y 53 0 I4 55168690 AC SPRING WASHER RT2250(PAV5005) 55131730 WASHER 4.8MM 12MM 1.0MM -- 53 0 I5 55498720 AC PRI LABEL BARCODE AVR1550 55174780 AC PRI LABEL DATE 55373490 AC PRI LABEL MADE IN PRC 20932870...
  • Page 7 AVR 1550 AMP Page 1/6 Tocom# SName C602 20936650 CC 100P0F +10% -10% 50.0V Y5P C603 55126070 CC 680P0F +10% -10% 50.0V 2B4 C607 14039240 CC 15P0F +5% -5% 50.0V SL C616 20936650 CC 100P0F +10% -10% 50.0V Y5P C617 55126070 CC 680P0F +10% -10% 50.0V 2B4 C621...
  • Page 8 AVR 1550 AMP Page 2/6 Tocom# SName R637 80436990 RCF 910R0 OHM +5% 250MI0W R642 20469490 RCF 6K8 OHM +5% 250MI0W R643 11059640 RCF 1K0 OHM +5% 250MI0W R644 30939490 RCF 33K0 OHM +5% 250MI0W R645 30939370 RCF 15R0 OHM +5% 250MI0W R646 30939370 RCF 15R0 OHM +5% 250MI0W...
  • Page 9 AVR 1550 AMP Page 3/6 Tocom# SName R706 60441580 RCF 22K0 OHM +5% 250MI0W R707 50882980 RCF 820R0 OHM +5% 250MI0W R708 80436990 RCF 910R0 OHM +5% 250MI0W R709 80437000 RCF 1K2 OHM +5% 250MI0W R710 11059590 RCF 82R0 OHM +5% 250MI0W R711 11059590 RCF 82R0 OHM +5% 250MI0W...
  • Page 10 AVR 1550 AMP Page 4/6 Tocom# SName R774 30939480 RCF 10K0 OHM +5% 250MI0W R775 20469510 RCF 43K0 OHM +5% 250MI0W R776 30939490 RCF 33K0 OHM +5% 250MI0W R777 20469460 RCF 2K2 OHM +5% 250MI0W R778 60441560 RCF 560R0 OHM +5% 250MI0W R779 60441560 RCF 560R0 OHM +5% 250MI0W...
  • Page 11 AVR 1550 AMP Page 5/6 Tocom# SName C665 13055500 CE 10U0F +20% 50.0V 85C C668 20267420 CE 1U0F +20% 50.0V 105C Q601 55133230 TR-SLPLF KTA1268 GR P 100MI0A -120V Q602 55133230 TR-SLPLF KTA1268 GR P 100MI0A -120V Q603 55133230 TR-SLPLF KTA1268 GR P 100MI0A -120V Q604 20508210 TR-SLPLF KTA1266 Y P 150MI0A...
  • Page 12 AVR 1550 AMP page 6/6 Tocom# SName C637 11054760 CE 100U0F +20% 63.0V 85C C649 11054760 CE 100U0F +20% 63.0V 85C C650 11054760 CE 100U0F +20% 63.0V 85C C662 11054760 CE 100U0F +20% 63.0V 85C C663 11054760 CE 100U0F +20% 63.0V 85C CN503 55184160 WIRECONASY UNIQUE 5P 680MM UL1007 PVC DISCRETE 22...
  • Page 13 AVR1550 DSP Page 1/6 Tocom# SName BD10 80440510 RMGCFMIN 0 OHM +0% 100MI0W BD14 55126690 FBEAD SURFACE MT 2500OHM FCM2012H-252T02 BD16 80440510 RMGCFMIN 0 OHM +0% 100MI0W BD17 20471950 RMGCFMIN 1K0 OHM +5% 100MI0W BD18 20471950 RMGCFMIN 1K0 OHM +5% 100MI0W...
  • Page 14 AVR1550 DSP Page 2/6 Tocom# SName 40435540 CCCFMIN 5N6F +10% -10% 50.0V X7R 11059320 CCCFMIN 1N0F +10% -10% 50.0V X7R 11059340 CCCFMIN 10N0F +10% -10% 50.0V X7R 11059320 CCCFMIN 1N0F +10% -10% 50.0V X7R 11059320 CCCFMIN 1N0F +10% -10% 50.0V X7R 11059340 CCCFMIN 10N0F +10% -10% 50.0V X7R...
  • Page 15 AVR1550 DSP Page 3/6 Tocom# SName 11066440 RMGCFMIN 3K3 OHM +5% 100MI0W 30944310 RMGCFMIN 4K7 OHM +5% 100MI0W R110 20471970 RMGCFMIN 2K4 OHM +5% 100MI0W R111 20471950 RMGCFMIN 1K0 OHM +5% 100MI0W R113 50886610 RMGCFMIN 10K0 OHM +5% 100MI0W R114...
  • Page 16 AVR1550 DSP Page 4/6 Tocom# SName 70434220 RMGCFMIN 820R0 OHM +5% 100MI0W 50886630 RMGCFMIN 100K0 OHM +5% 100MI0W 90574400 RMGCFMIN 470R0 OHM +5% 100MI0W 20471970 RMGCFMIN 2K4 OHM +5% 100MI0W 11066480 RMGCFMIN 47K0 OHM +5% 100MI0W 20471990 RMGCFMIN 12K0 OHM +5% 100MI0W...
  • Page 17 AVR1550 DSP Page 5/6 Tocom# SName 20268850 CE 2U2F +20% 50.0V 85C C211 15001920 CE 100U0F +20% 16.0V 85C C212 15001920 CE 100U0F +20% 16.0V 85C 20267830 CE 47U0F +20% 16.0V 85C 20267830 CE 47U0F +20% 16.0V 85C 15002130 CE 10U0F +20% 16.0V 85C 15002130 CE 10U0F +20% 16.0V 85C...
  • Page 18 AVR1550 DSP Page 6/6 Tocom# SName 20468970 CCCFMIN 330P0F +5% -5% 50.0V NP0 11059440 CCCFMIN 10P0F +0P25F -0P25F 50.0V NP0 11059440 CCCFMIN 10P0F +0P25F -0P25F 50.0V NP0 11059440 CCCFMIN 10P0F +0P25F -0P25F 50.0V NP0 11059440 CCCFMIN 10P0F +0P25F -0P25F 50.0V NP0 11059440 CCCFMIN 10P0F +0P25F -0P25F 50.0V NP0...
  • Page 19 AVR 1550 FRONT Page 1/4 Tocom# SName 20267830 CE 47U0F +20% 16.0V 85C C204 20269010 CE 47U0F +20% 50.0V 85C C210 20268880 CE 10U0F +20% 50.0V 85C C214 20267830 CE 47U0F +20% 16.0V 85C C215 20267830 CE 47U0F +20% 16.0V 85C C219 20269010 CE 47U0F +20% 50.0V 85C...
  • Page 20 AVR 1550 FRONT Page 2/4 Tocom# SName C244 80440510 RMGCFMIN 0 OHM +0% 100MI0W C245 20267290 CCCFMIN 100N0F +80% -20% 50.0V Y5V 20267290 CCCFMIN 100N0F +80% -20% 50.0V Y5V 20267290 CCCFMIN 100N0F +80% -20% 50.0V Y5V C401 30939240 CCCFMIN 22N0F +10% -10% 50.0V X7R C402 30939240 CCCFMIN 22N0F +10% -10% 50.0V X7R...
  • Page 21 AVR 1550 FRONT Page 3/4 Tocom# SName R216 30944310 RMGCFMIN 4K7 OHM +5% 100MI0W R217 30944310 RMGCFMIN 4K7 OHM +5% 100MI0W R218 50886610 RMGCFMIN 10K0 OHM +5% 100MI0W R219 50886630 RMGCFMIN 100K0 OHM +5% 100MI0W R220 20471950 RMGCFMIN 1K0 OHM +5% 100MI0W R221 50886610 RMGCFMIN 10K0 OHM +5% 100MI0W...
  • Page 22 AVR 1550 FRONT Page 4/4 Tocom# SName R612 11066480 RMGCFMIN 47K0 OHM +5% 100MI0W R613 70434250 RMGCFMIN 15K0 OHM +5% 100MI0W 70434200 RMGCFMIN 100R0 OHM +5% 100MI0W 20471950 RMGCFMIN 1K0 OHM +5% 100MI0W 20471950 RMGCFMIN 1K0 OHM +5% 100MI0W C216 55134340 CM 47MI0F +80% -20% 5.5V 70C CN201...
  • Page 23 AVR 1550 MAIN Page 1/11 Tocom# SName D123 20421210 D-ZENER 1N5242B 12.0V 500MI0W D400 20526990 D-ZENER 1N5235B 6.8V 500MI0W D401 20526990 D-ZENER 1N5235B 6.8V 500MI0W D402 70436540 D-SLP 1N4148 100.0V 150E-3A D403 70436540 D-SLP 1N4148 100.0V 150E-3A D404 70436540 D-SLP 1N4148 100.0V 150E-3A D405 70436540 D-SLP 1N4148 100.0V 150E-3A...
  • Page 24 AVR 1550 MAIN Page 2/11 Tocom# SName R901 30939390 RCF 39R0 OHM +5% 250MI0W R902 30939390 RCF 39R0 OHM +5% 250MI0W R903 30939390 RCF 39R0 OHM +5% 250MI0W R904 30939390 RCF 39R0 OHM +5% 250MI0W R906 30939390 RCF 39R0 OHM +5% 250MI0W R907 30939390 RCF 39R0 OHM +5% 250MI0W...
  • Page 25 AVR 1550 MAIN Page 3/11 Tocom# SName C239 20268880 CE 10U0F +20% 50.0V 85C C240 20268880 CE 10U0F +20% 50.0V 85C C241 20268880 CE 10U0F +20% 50.0V 85C C242 20267830 CE 47U0F +20% 16.0V 85C C243 20267830 CE 47U0F +20% 16.0V 85C C317 20267830 CE 47U0F +20% 16.0V 85C...
  • Page 26 AVR 1550 MAIN Page 4/11 Tocom# SName C907 40432960 CPM 47N0F +20% 100.0V C908 11055580 CC 4N7F +10% -10% 50.0V Y5P C909 11055580 CC 4N7F +10% -10% 50.0V Y5P C910 40432960 CPM 47N0F +20% 100.0V C911 11055580 CC 4N7F +10% -10% 50.0V Y5P C912 11055580 CC 4N7F +10% -10% 50.0V Y5P...
  • Page 27 AVR 1550 MAIN Page 5/11 Tocom# SName Q957 55180600 TR-SLPLF 2SA933S P -150MI0A -50V Q959 55157120 TR-SLPLF KTC2874 A N 300MI0A 20V Q959 55179210 TR-SLPSWA KTC2874 B N Q959 55179210 TR-SLPSWA KTC2874 B N Q960 55157120 TR-SLPLF KTC2874 A N 300MI0A 20V Q960 55179210 TR-SLPSWA KTC2874 B N...
  • Page 28 AVR 1550 MAIN Page 6/11 Tocom# SName C412 11058670 CCCFMIN 100P0F +5% -5% 50.0V NP0 C414 11058670 CCCFMIN 100P0F +5% -5% 50.0V NP0 C416 11058670 CCCFMIN 100P0F +5% -5% 50.0V NP0 C419 11058670 CCCFMIN 100P0F +5% -5% 50.0V NP0 C421 11058670 CCCFMIN 100P0F +5% -5% 50.0V NP0 C423...
  • Page 29 AVR 1550 MAIN Page 7/11 Tocom# SName IC403 20976940 IC-OPERAMP BA4558F DUAL OP IC901 55192900 IC-SWITCH BA7626F SOP16 VIDEO IC902 55192900 IC-SWITCH BA7626F SOP16 VIDEO IC903 55192900 IC-SWITCH BA7626F SOP16 VIDEO IC904 20718660 IC-LOGIC BU4094BF SHIFT REGISTER CMOS J100 80440510 RMGCFMIN 0 OHM +0% 100MI0W J101 80440510...
  • Page 30 AVR 1550 MAIN Page 8/11 Tocom# SName R157 50886630 RMGCFMIN 100K0 OHM +5% 100MI0W R200 90574400 RMGCFMIN 470R0 OHM +5% 100MI0W R201 90574400 RMGCFMIN 470R0 OHM +5% 100MI0W R202 90574400 RMGCFMIN 470R0 OHM +5% 100MI0W R203 90574400 RMGCFMIN 470R0 OHM +5% 100MI0W R204 90574400 RMGCFMIN 470R0 OHM +5% 100MI0W...
  • Page 31 AVR 1550 MAIN Page 9/11 Tocom# SName R393 50886630 RMGCFMIN 100K0 OHM +5% 100MI0W R402 70434200 RMGCFMIN 100R0 OHM +5% 100MI0W R403 70434200 RMGCFMIN 100R0 OHM +5% 100MI0W R404 15268430 RMGCFMIN 1R0 OHM +5% 100MI0W R405 15268430 RMGCFMIN 1R0 OHM +5% 100MI0W R408 60444390 RMGCFMIN 3K9 OHM +5% 100MI0W...
  • Page 32 AVR 1550 MAIN Page 10/11 Tocom# SName R480 20471950 RMGCFMIN 1K0 OHM +5% 100MI0W R482 20471950 RMGCFMIN 1K0 OHM +5% 100MI0W R483 20471950 RMGCFMIN 1K0 OHM +5% 100MI0W R484 20471950 RMGCFMIN 1K0 OHM +5% 100MI0W R951 90574370 RMGCFMIN 82R0 OHM +5% 100MI0W R952 30944250 RMGCFMIN 10R0 OHM +5% 100MI0W...
  • Page 33 AVR 1550 MAIN Page 11/11 Tocom# SName D115 20415060 D-SR 1N4004 400.0V 1.0A D116 20415060 D-SR 1N4004 400.0V 1.0A D118 20415060 D-SR 1N4004 400.0V 1.0A D119 20415060 D-SR 1N4004 400.0V 1.0A D120 20415060 D-SR 1N4004 400.0V 1.0A D121 20415060 D-SR 1N4004 400.0V 1.0A D900 20525530 D-SR 1N4003 200.0V 1A...
  • Page 34 AC DEC CABINET PANEL FRONT AVR1550 55510880 AC CPL PLATE BADGE HARMAN/KARDON GOLD 55177740 AC DEC KNOB MAIN HIPS 94H 55498770 AC DEC BUTTON 8 KEY AVR1550 -- 55230130 AC DEC BUTTON 7 KEY AVR8000 HIPS 55498790 AC DEC CRYSTAL DISPLAY AVR1550 55177800...
  • Page 35 Page 1 Tocom# SName 55127490 ANTENNA WIRE ANTENNA LOOP CT01-AM 0 0 55498700 EPR RCT REMOCON AVR1550 OEM -- W/O BATTERY -- 70 5502022A BATNCALK 1.5V AAA 1.15 AH 55498710 AC CARTON AVR1550 55178610 AC CPL ENDCAP CUSHION POLY 0.024...
  • Page 36 AVR 1550 ST-BY Page 1/1 Tocom# SName D106 70436540 D-SLP 1N4148 100.0V 150E-3A D110 20475340 D-ZENER BZX55B30 30V 500MI0W D111 20454630 D-ZENER 1N5239B 9.1V 500MI0W D124 20526960 D-ZENER 1N5231B 5.1V 500MI0W D129 70436540 D-SLP 1N4148 100.0V 150E-3A R101 11059580 RCF 56R0 OHM +5% 250MI0W R102 50883000 RCF 3K3 OHM +5% 250MI0W R103...
  • Page 37 AVR1500BLOCK .sch-1 - Thu Oct 17 11:11:28 2002...
  • Page 38 avr1550wiring.sch-1 - Thu Oct 17 11:46:42 2002...
  • Page 39 AVR1500DSP-0121MP.sch-1 - Thu Oct 17 11:06:37 2002...
  • Page 40 AVR1500-main-0129MP.sch-4 - Thu Oct 17 11:08:58 2002...
  • Page 41 AVR1500-main-0129MP.sch-3 - Thu Oct 17 11:08:51 2002...
  • Page 42 AVR1500-main-0129MP.sch-2 - Thu Oct 17 11:08:43 2002...
  • Page 43 AVR1500-main-0129MP.sch-1 - Thu Oct 17 11:08:31 2002...
  • Page 44 AVR1550FRONT0513.sch-1 - Thu Oct 17 11:10:09 2002...
  • Page 45 AVR1500POWER-MP.sch-1 - Thu Oct 17 11:09:31 2002...
  • Page 46 AVR1500AMP-MP.sch-1 - Thu Oct 17 11:05:29 2002...
