Mobileye AWS-4000 User Manual

Advance warning system
Hide thumbs Also See for AWS-4000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation and Technical Manual
AWS-4000
Advance Warning System
U
M
SER
ANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWS-4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Mobileye AWS-4000

Summary of Contents for Mobileye AWS-4000

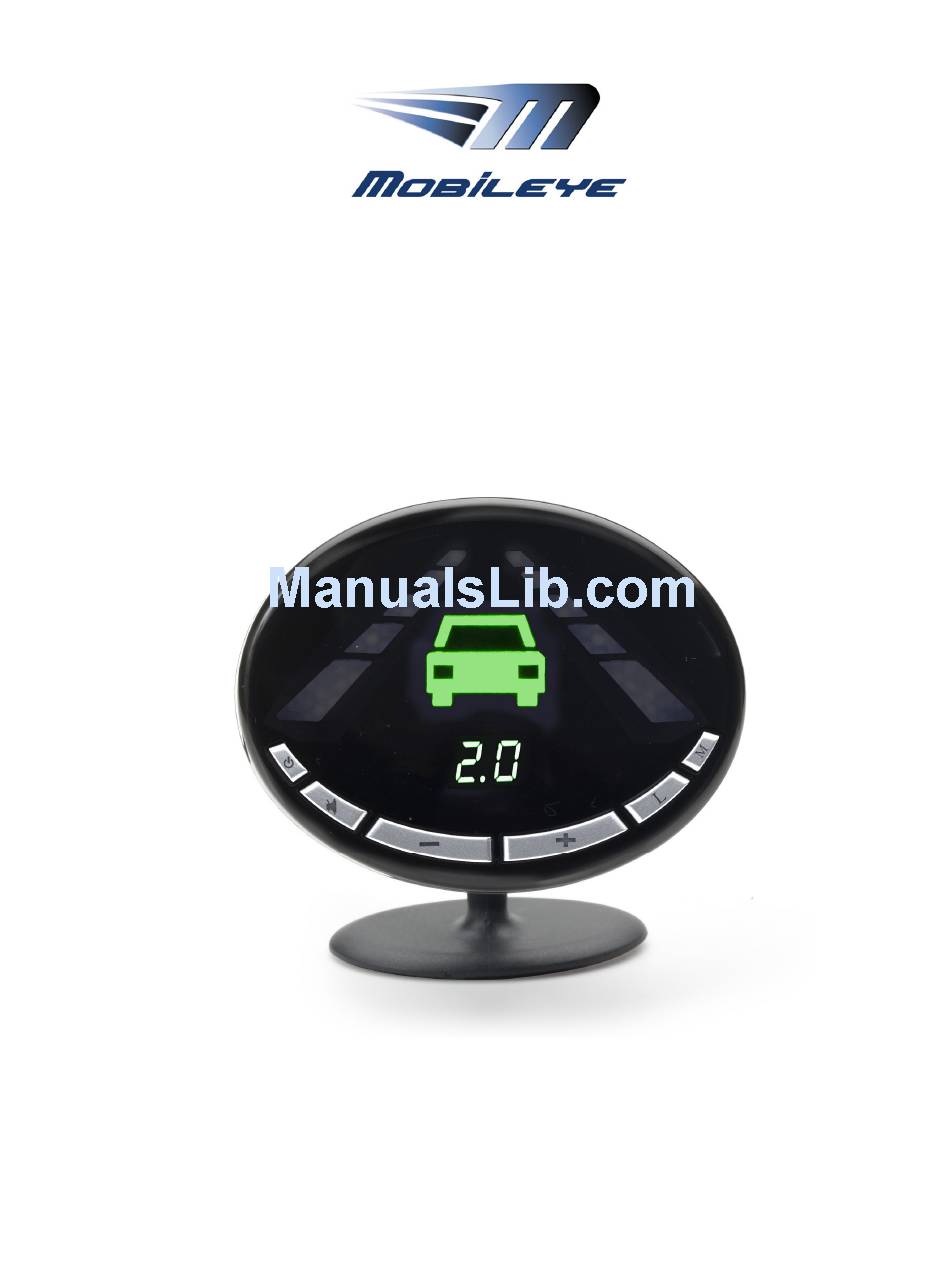

  • Page 1 AWS-4000 Advance Warning System ANUAL...
  • Page 2 AWS-4000 EFORE SING OBILEYE Before installing or using the Mobileye® Advance Warning System (AWS), carefully read this User Manual and the important safety instructions and warnings it contains. ICENSING AND ARRANTY Please read Sections 10 and 11 in this User Manual for licensing and warranty issues.

  • Page 3: Table Of Contents

    Windshield Mount ..................................6 2.3. Display and Control Unit ................................6 2.4. Loudspeakers .....................................6 Section 3 Getting Started..................................7 3.1. Turning on Mobileye AWS-4000 ..............................7 Section 4 Forward Collision Warning (FCW) ............................8 4.1. What is FCW? ....................................8 4.2. FCW is Generated When… ................................8 4.3.

  • Page 4: Warnings

    Mobileye AWS is not an automated driving system and it does not act as a substitute for any aspect of driver vehicle control or safe driving practices. Drivers are strongly...

  • Page 5: Installation And Safety Instructions

    AWS-4000 system components The functionality of these components is described in the following sections. 2.1. AMERA The Camera Unit contains the camera and the main processor of the Mobileye AWS. The Camera Unit: Identifies lane markings • Identifies vehicles that are driving ahead of you •...

  • Page 6: Windshield Mount

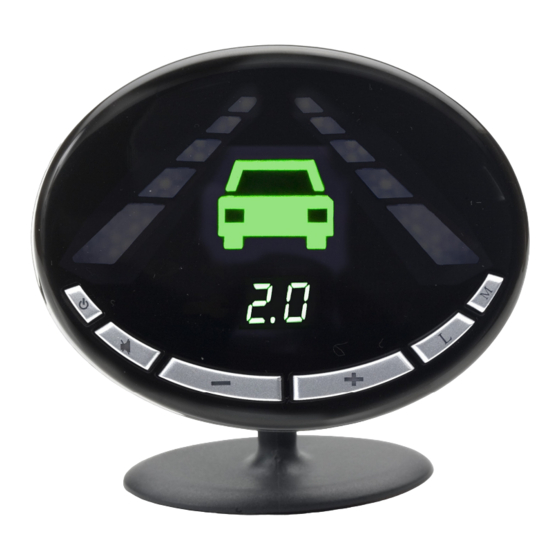

    The Display and Control Unit is attached either to the dashboard or to the front windshield of the vehicle. 2.4. OUDSPEAKERS The Mobileye AWS-4000 includes loudspeakers installed to the left and right sides of the driver. They are used for sounding directional audio alerts, according to the direction of danger.

  • Page 7: Getting Started

    Section 8 of this manual before trying to use the Mobileye AWS- 4000 control panel. Careless changes in system settings may result in undesirable behavior. A number of seconds after you start the car, the Mobileye AWS-4000 display will show the “System Ready” screen. The “System Ready” screen The displayed elements on the “System Ready”...

  • Page 8: Forward Collision Warning (Fcw)

    The Forward Collision Warning alerts you to the danger of an impending collision with the vehicle ahead. The Mobileye AWS-4000 calculates the expected Time to Collision (TTC) with the vehicle in front and, when the TTC drops to a dangerous threshold, it immediately generates an FCW alert.

  • Page 9: Lane Departure Warning (Ldw)

    EPARTURE ARNING LDW? 5.1. HAT IS The Mobileye AWS-4000 provides a Lane Departure Warning (LDW) to alert you when you are about to unintentionally swerve outside of the lane you are driving in. … 5.2. ENERATED LDW alerts you when the car begins to swerve from the driving lane. The system generates an LDW alert up to 0.5 seconds before the vehicle crosses the lane marking.

  • Page 10: Headway Monitoring And Warning (Hmw)

    HMW? 6.1. HAT IS The Mobileye AWS-4000 Headway Monitoring and Warning monitors the driving distance from the vehicle in front of you (headway) and alerts you when the headway is less than a pre-defined threshold. Headway is measured in seconds, and not physical distance. The headway is the number of seconds it would take for your vehicle to reach the current position of the vehicle ahead.

  • Page 11: Hmw Audio Alert

    The HMW has been intentionally disabled by setting its alert distance to • ‘OFF’. The Mobileye AWS volume level has been set to ‘Mute’. • NOTES: When a passing vehicle cuts in front of you in your lane and drives away, a •...

  • Page 12: Display Unit

    ISPLAY Section 7 ISPLAY A composite illustration, showing all AWS-4000 Display Unit icons, is presented in the following figure. The Display Unit - visual indications 7.1. EVIATION LERT This flashing indicator is displayed up to 0.5 seconds before your vehicle touches the left lane mark, if you have not signaled.

  • Page 13: Headway Meter

    Do not adjust Mobileye AWS-4000 controls while driving! Control buttons ON/OFF ( 8.1. To turn off the Mobileye AWS-4000, press the ON/OFF button until ‘OF’ is displayed in the lower part of the Display Unit. To turn on the Mobileye AWS-4000 again, press the ON/OFF button once.

  • Page 14: Mute ( )

    WARNING! When the Mobileye AWS-4000 is turned OFF, no warnings will be issued. 8.2. Press this button to Mute/Un-Mute the Mobileye AWS-4000. Muting will disable the HMW and LDW audio alerts. NOTES: The Forward Collision Warning alerts cannot be muted – they are critical alerts.
  • Page 15 Level 2 is the default. Reducing sensitivity to level 1 will delay the LDW alerts, and setting the system to OFF will turn off LDW alerts. WARNING! Do not change Mobileye AWS-4000 settings while driving. To set the LDW sensitivity level perform the following steps: 1. Press the button twice.

  • Page 16: Troubleshooting

    Section 9 ROUBLESHOOTING The following section provides possible solutions to situations that may occur when using the Mobileye AWS-4000. Should this section fail in providing the required solution, please contact technical support for assistance. WARNING! Do not perform any maintenance activities on the Mobileye AWS-4000...
  • Page 17 Mount, clean the relevant area of the impaired visibility windshield, and carefully re-install the Mount. If after restarting the vehicle, the Low Visibility icon is still ON, contact AWS-4000 service center. 1. Ventilate the front windshield using the vehicle’s air-conditioning system.

  • Page 18: License And Warranties

    Mobileye AWS is transferred to another vehicle. Proof of original purchase is required from the warranty holder to obtain limited warranty coverage. The sole obligation of Mobileye under this Limited Warranty is to repair or replace, at Mobileye’s discretion, any AWS system, which is determined by Mobileye to have been defective in materials or workmanship provided by Mobileye.

  • Page 19: If Warranty Service Is Needed

    UPPORT authority to make any representation, warranty, or agreement on behalf of Mobileye with respect to the Mobileye AWS. No warranty of any kind or nature is made by Mobileye beyond those expressly stated herein. In no event shall Mobileye be liable for any special, collateral, indirect, punitive, incidental, consequential, or exemplary damages in connection with or arising out of the use of the Mobileye AWS.

  • Page 21: Section 10 License And Warranties

    The following form should be signed and returned to your local AWS distributor. I have read and understood the safety instructions and operating manual before using Mobileye AWS, including Section 1 of this user manual "Warnings" and Section 10 “License and Warranties”.
  • Page 24 © 2007-2008 Mobileye Technologies Limited. All rights reserved. ® Mobileye is a registered trademark of Mobileye Technologies Ltd. AWS™ and the Mobileye logo are trademarks of Mobileye Technologies Ltd.
