Attaching the Ear Caps

The plastic ear caps are snap-on parts that require some care when attaching or
removing them. After the enclosure has been installed in the rack cabinet, attach the
ear caps, which are located in a plastic bag included in the controller and drive
enclosure packages.
1. Remove the ear caps from the plastic package.
2. As you attach each ear cap, hold it so that its indent is closest to the chassis.
3. Apply gentle pressure to snap the caps onto the chassis' ears.

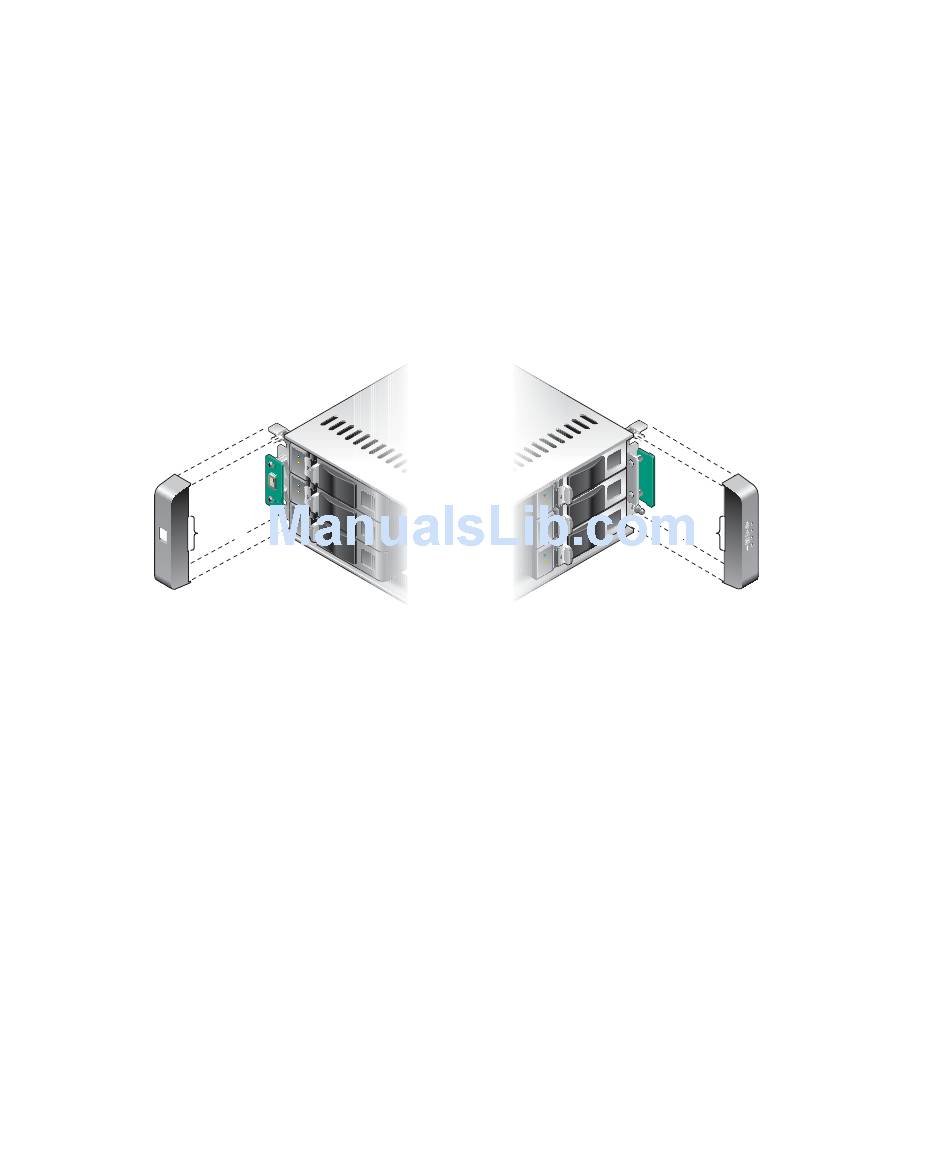

Figure 2-3 Installing Ear Caps
32 R/Evolution 2730 Getting Started Guide • January 2009
Indent
Indent
