Figure 2-1 provides a visual overview of rack installation and components.
Note –
One #10-32 x 1/2-in. or 1-in., or 5-mm panhead screw,
or 6-mm sockethead screw
#8-32 x 3/16-in. flathead screws (4 minimum) or more
Four #8-32 x 1/4-in. panhead screws

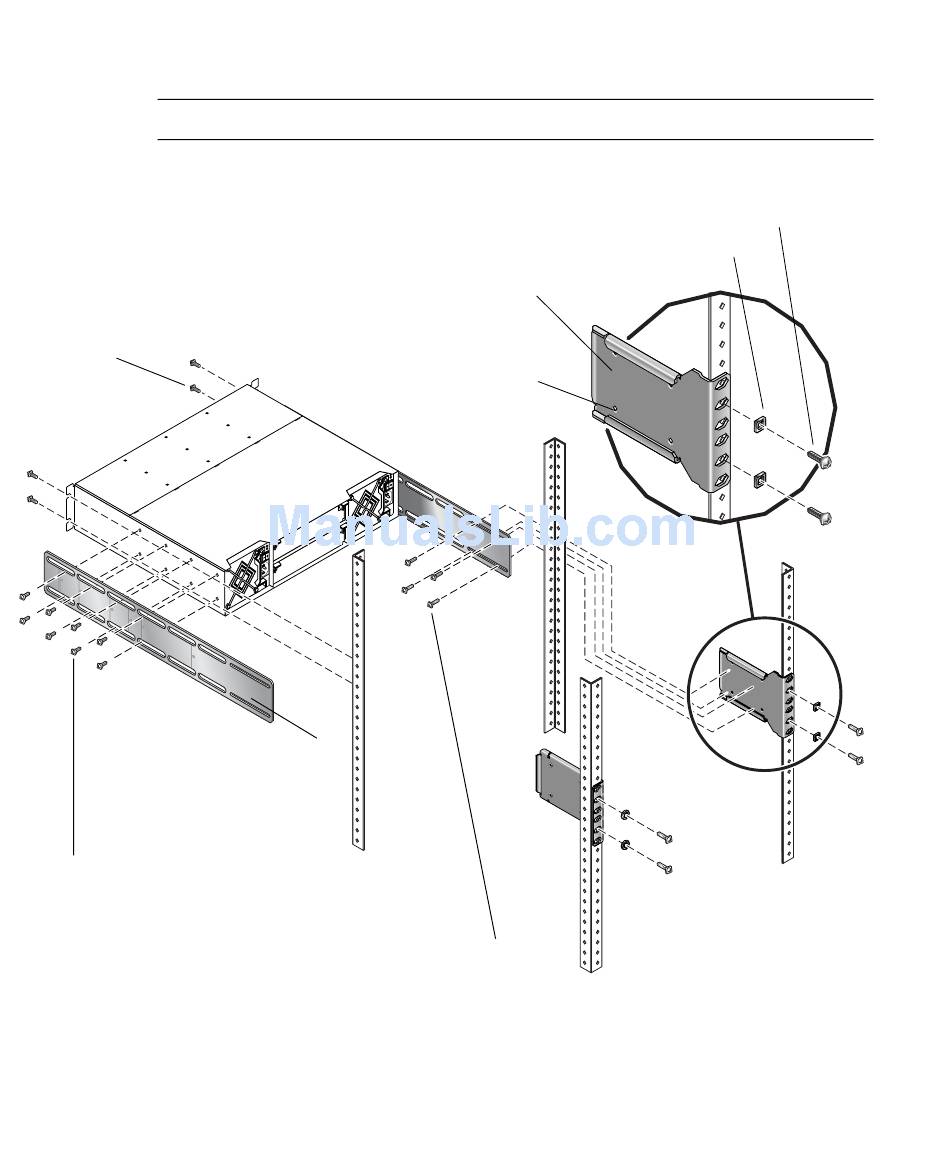

Figure 2-1 Overview of Standard 19-Inch EIA Rackmounting Components
28
R/Evolution 2730 Getting Started Guide • January 2009
Additional screws are provided in case your rack requires longer screws.
Two #10-32 x 1/2-in. or 1-in., or 5-mm or 6-mm panhead screws
Two #10 flat washers for 5-mm or #10-32 x 1/2-in. or 1-in. screws only
Rear bracket connected to rack
Threaded PEMs (4)
Side bracket
