KB-212 Speaker Station
14—Option Board Jumpers
The two jumper plugs P1 and P3 must be installed when optional modules are
not used. When the optional EB-4W or EB-TW Modules are used, both P1
and P3 must be removed. Save these jumper plugs for possible future use.
Note: The KB-212 will not operate without either the jumper plugs or the
optional modules installed.
Rev. B
Pin 1
KB-212 Program
Input Connector

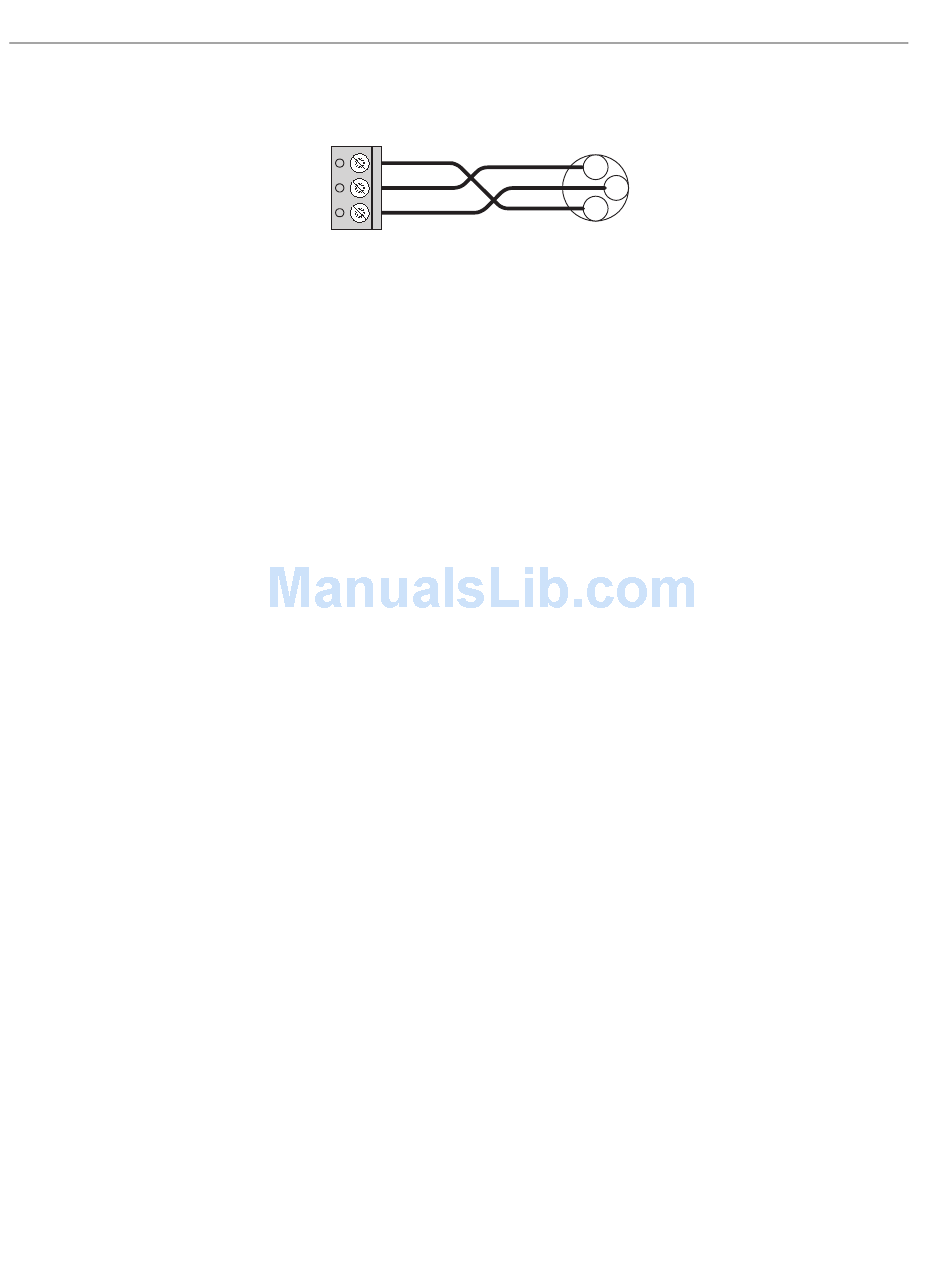

FIGURE 4: Program Input Connector Wiring
g
2
3
1
XLR
Connector
8
© Clear-Com Intercom Systems 2000
Clear-Com Intercom Systems
