KB-212 Speaker Station
Button
RECT. MINIATURE BUTTON, BLACK
Lens
LENS, YELLOW, ROUND FOR T1 3/4
Speaker
2 1/2 IN. SPKR 8 OHM 3.5W
Panel Mic
ELECTRET MIC ELEMENT W/PINS
Switch
DPDT P.B. MINIATURE W/LONG PLUNGER
Switch
DIP SWITCH PIANO 3 POS
RUBBER MIC MOUNT
Rev. B

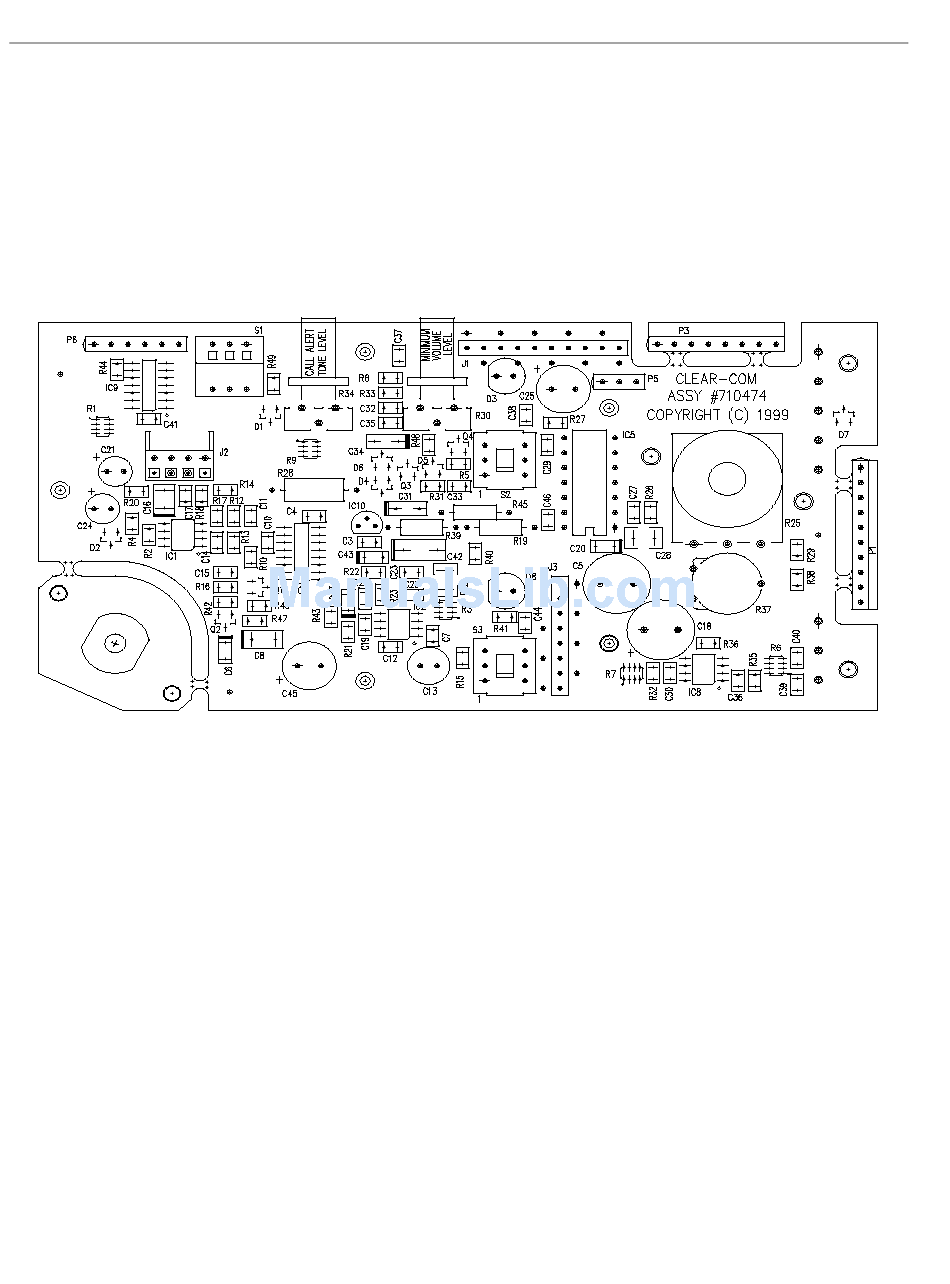

FIGURE 6: Main PCB Component Layout
14
Clear-Com Intercom Systems
240082
S3
240099
D3
500103
500132
510107
S2 S3
510114
S1
640027
© Clear-Com Intercom Systems 2000
