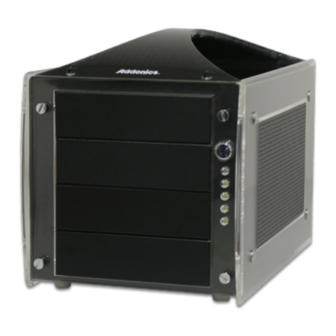

Addonics Technologies ST45HPMXA-B User Manual

Storage tower.
Hide thumbs


Advertisement

T E C H N O L O G I E S

User Guide

Storage Tower
(
)
ST45HPMXA-B
www.addonics.com
v8.1.11
Technical Support
If you need any assistance to get your unit functioning properly,
please have your product information ready and contact Addonics
Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/

Advertisement

Table of Contents

   Related Manuals for Addonics Technologies ST45HPMXA-B

   Summary of Contents for Addonics Technologies ST45HPMXA-B

  • Page 1: User Guide

    T E C H N O L O G I E S User Guide Storage Tower ST45HPMXA-B www.addonics.com v8.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics...
  • Page 2 Installation 1. Open the outer cabinet by removing the two screws securing the side panels, then pushing each side panel toward the rear of the unit. 2. Mount up to two 5.25” devices or enclosures using the supplied screws. 3. Connect each device or each connection on each enclosure to the Port Multiplier.
  • Page 3: Cable Connections

    Dip Switch eSATA Host Port Port 2 RAID Setting button Port 1 Port 0 Port 3 Error LED Activity LED Port 4 NOTE: P5 Activity LED shows Host activity. P5 Error LED shows a RAID error. Cable Connections 1. Attach the SATA hard drives (up to 5) to the SATA ports on the Hardware Port Multiplier (HPM) using SATA cables.
  • Page 4 Resetting the RAID Mode NOTE: This procedure destroys all RAID data. It should not harm individual drives or their contents; however, creating or running backups of all data is strongly recommended before proceeding. 1. Power down the unit and set the dip switch to the factory default setting (all switches OFF).
  • Page 5 EZ Switch (SW1:2): The EZ (spare) switch inhibits spares when ON. When in the OFF position, all individual drives (not defined as members of an array) are considered spare. Should a RAID become degraded, when the EZ switch is in the OFF position a spare drive will be used automatically to rebuild the RAID, if present.
  • Page 6 RAID 0 (Stripe set) Number of drives: at least 2 Unit capacity: size of each member times number of members. Spares: no Fault tolerance: none - if any member is lost all data is lost. RAID 0 “stripes” the file system across the array by placing sectors of data sequentially between drives in a specific order.
  • Page 7 CLONE (Mirror set) Number of drives: at least 2 Unit capacity: size of one member. Spares: yes Fault tolerance: can withstand the loss of any number of drives without losing data as long as at least one complete member remains online. CLONE mode works the same way as RAID 1, by maintaining a complete copy of the entire set of data on each drive.
  • Page 8 CONTACT US www.addonics.com Phone: 408-573-8580 Fax: 408-573-8588 Email: http://www.addonics.com/sales/query/...

This manual is also suitable for:

St45hpmxu-b
