Page 1: Access Point

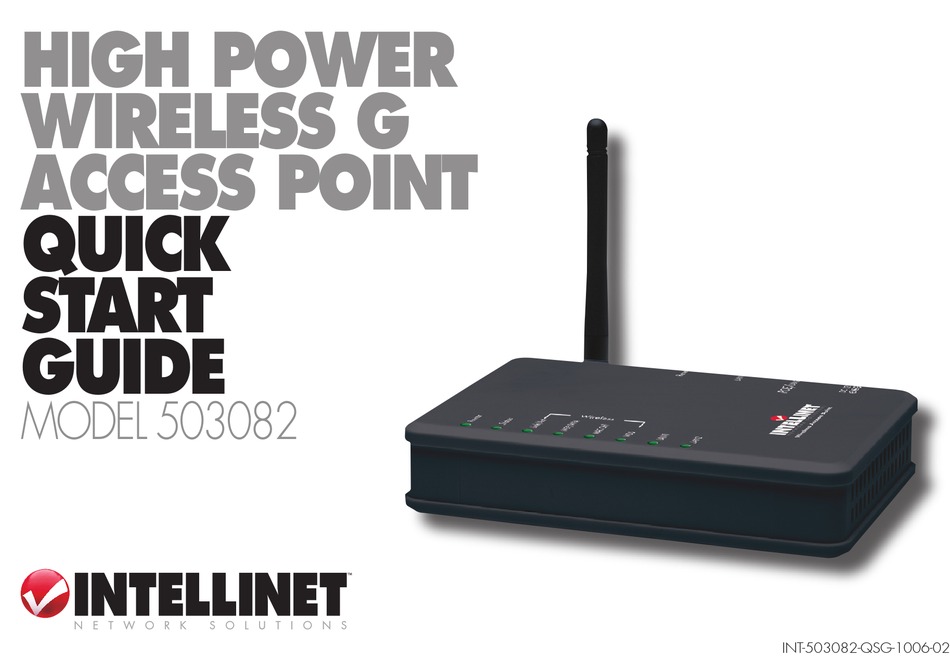

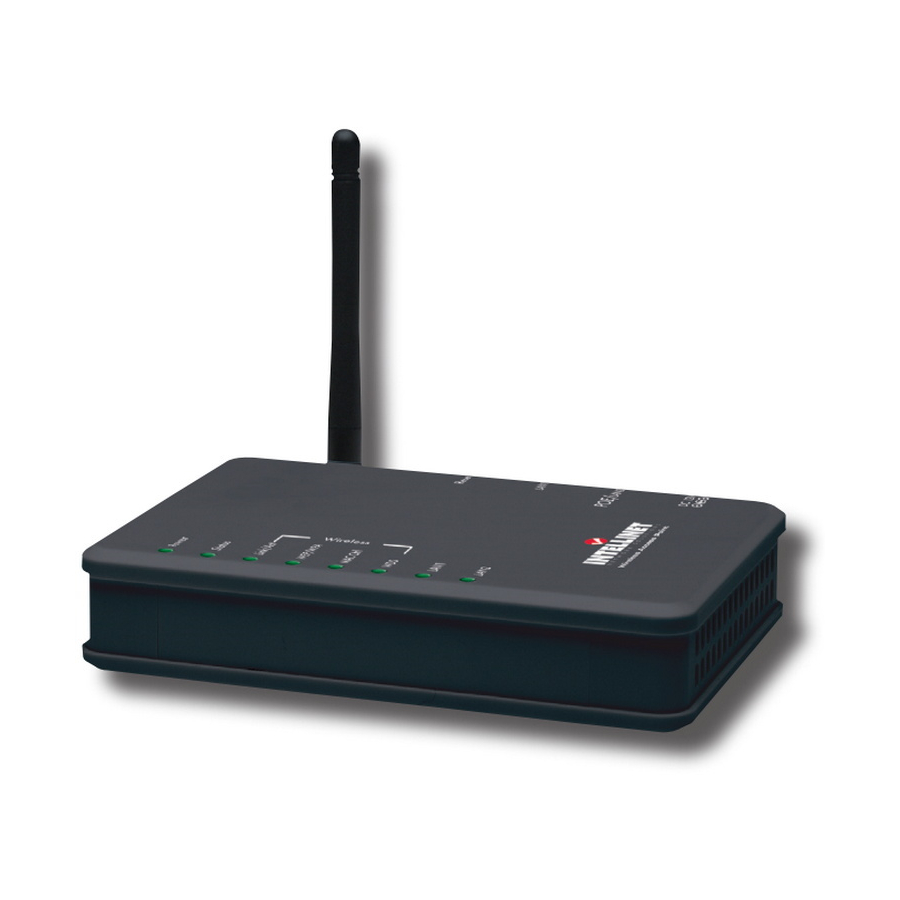

HigH Power wireless g Access Point QUicK stArt gUiDe MODEL 503082 INT-503082-QSG-1006-02... - Page 2 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS High Power Wireless G ™ Access Point, Model 503082. This quick start guide provides simple configuration guidelines for setup and operation of this device. For more detailed instructions and a complete list of specifications, refer to the user manual.
-
Page 3: Hardware Installation
HArDwAre instAllAtion Connections using the included power adapter 1. Make a connection to your local area network (LAN) by plugging one end of an Ethernet cable to either of the two Ethernet ports (LAN1 or LAN2) on the access point and the other end of the cable to a hub, switch, router or additional wireless access point. - Page 4 2. Turn on the power to the device by connecting the included AC power adapter to the power port and then plugging the adapter into a wall outlet. Connections using PoE (Power over Ethernet) 1. Connect to your local area network (LAN) by using Ethernet cable and a PSE (Power Sourcing Equipment) device to connect the LAN2 port of the wireless access point to a switch, router or additional wireless access point.
-
Page 5: Checking The Leds
Checking the LEDs • The Power LED should be on when the device is connected to a power source. • The Status LED should be on while the access point is booting; off once booting is complete. • The Link/Act LED should be on whenever the wireless function is enabled; blinking when there is traffic. - Page 6 configUrAtion 1. Start your computer, then connect it to the wireless access point using an Ethernet cable. 2. Confirm that your wired station is set to the same subnet address — 192.1681.254 — as the wireless access point. 3. Start your Web browser. In the address field, enter "http:/ /192.1681.254."...
-
Page 7: Specifications
sPecificAtions Standards • Data rates: - Client access control through • Weight: 165 g (5.8 lbs.) • IEEE 802.11b (11 Mbps - IEEE 802.11b (11 Mbps, media access control filter • Operating temperature: Wireless Lan) 5.5 Mbps, 2 Mbps, 1 Mbps) •... - Page 8 INTELLINET NETWORKSOLUTIONS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
