Root AP Settings
Connect Root AP directly to the router with Ethernet cable

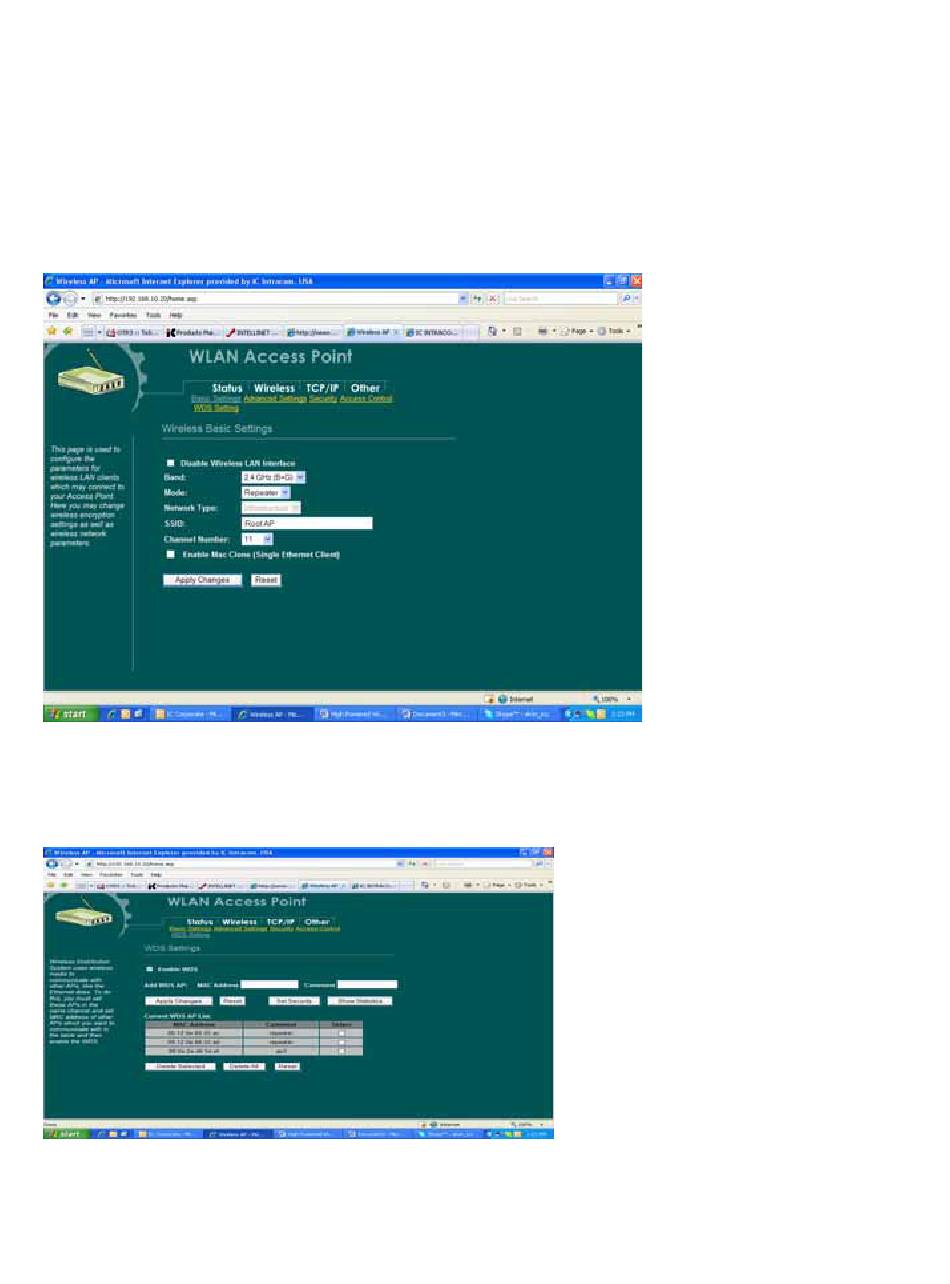

Click Wireless-----Click Basic Settings
Choose Repeater Mode (Bridge Mode)
Set SSID (Root AP)
Set Channel
Click Apply Changes
WDS Settings
Click Wireless------Click WDS Settings
Enable WDS
Enter MAC address of AP devices you wish to repeat.
**AP model 503082 requires both the Wireless MAC and the LAN MAC**
Root AP System Tab
Click Status ------ Click System

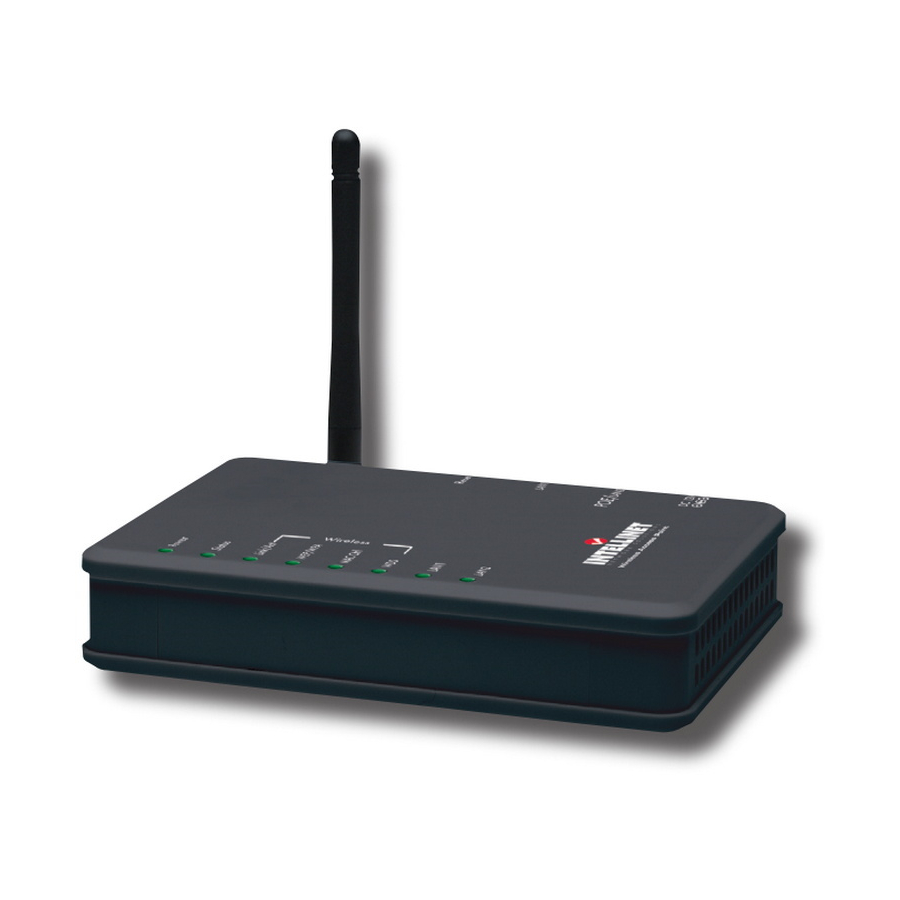

High Powered Wireless G Access Point (503082)
Repeater and Bridge Mode
Advertisement
Table of Contents
Related Manuals for Intellinet 503082
Summary of Contents for Intellinet 503082
- Page 1 Click Apply Changes WDS Settings Click Wireless------Click WDS Settings Enable WDS Enter MAC address of AP devices you wish to repeat. **AP model 503082 requires both the Wireless MAC and the LAN MAC** Root AP System Tab Click Status ------ Click System...
- Page 2 TCP Settings Click TCP/IP Enter network IP address for the AP Default Gateway should match the IP address of your router DHCP: Enable or Disable Apply Changes (Please note the IP address before selecting Apply Changes) Repeater AP Device Click Wireless ------- Click Basic Settings Choose Repeater Mode or Bridge Mode Set SSID (AP2) does not have to match the SSID of the Root AP.
- Page 3 Click Apply Changes WDS Settings Click Wireless ------ Click WDS Settings Enable WDS Enter MAC address of Root AP you wish to repeat the signal from ****AP model 503082 requires both the Wireless MAC and the LAN MAC...
- Page 4 TCP Settings Click TCP/IP Enter network IP address for the AP Default Gateway should match the IP address of your router DHCP: Enable or Disable Repeater System Settings Click Status...
