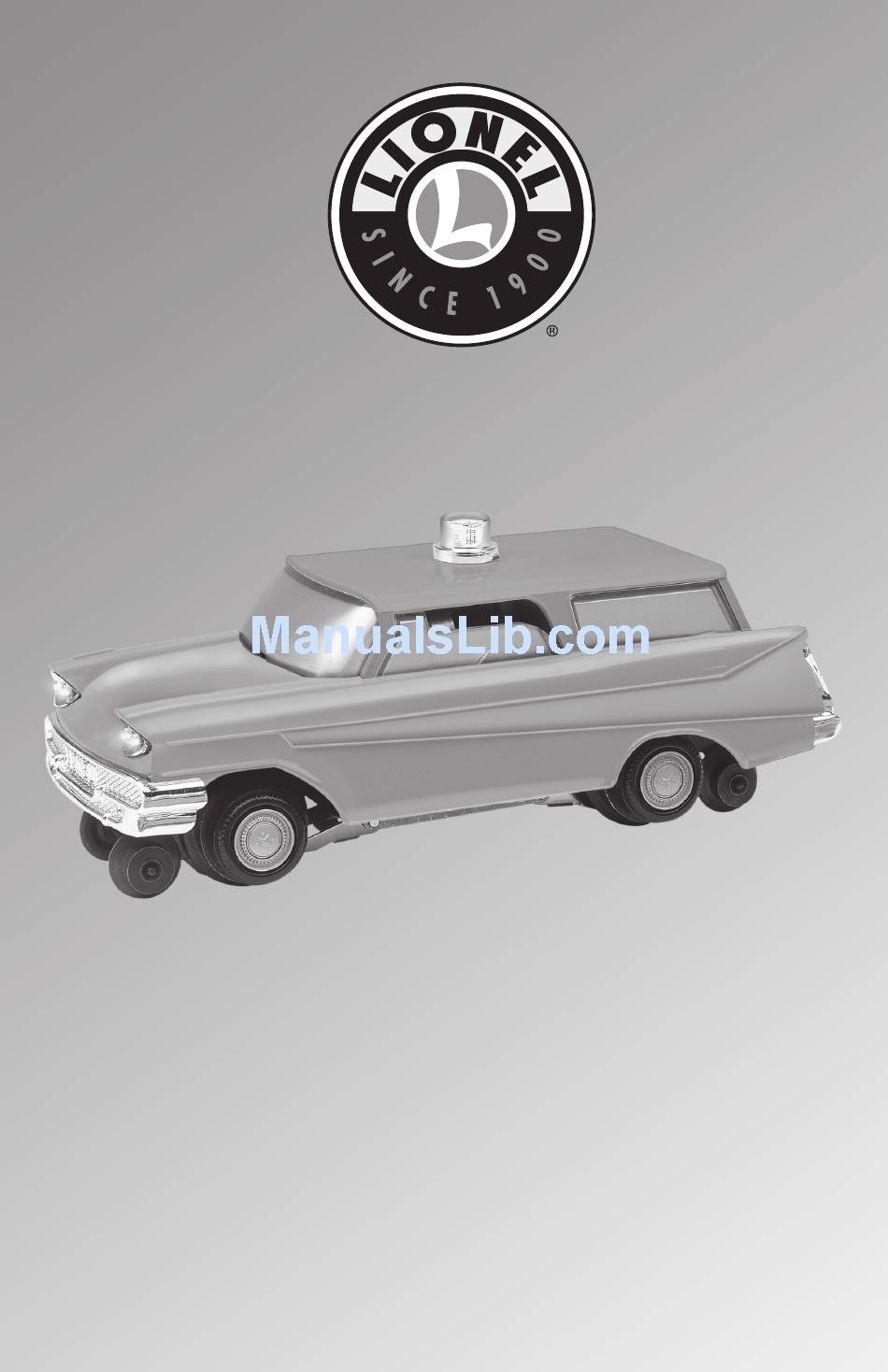

- Page 1 72-8440-250 /08 Lionel Inspection Vehicle Owner’s Manual...
- Page 2 Congratulations! ou are now the proud owner of the Lionel Inspection Vehicle. From the crisp detail to the Pullmor motor under its hood, the Lionel Inspection Vehicle is ready for duty on your model railroad. Experience the superiority of today’s Lionel. Have fun! Features of the Inspection Vehicle •...
- Page 3 Lionel-compatible track. (O-27 minimum radius) Power up your Inspection Vehicle with your transformer. • Your Inspection Vehicle is designed to operate on 10-15 volts. Virtually all Lionel and Lionel-compatible AC or DC transformers are suitable. Move ‘em out! • Get your Inspection Vehicle moving. The vehicle will initially start in for- ward or reverse. To sequence the reversing unit, press the direction button on your transformer, or turn the throttle OFF and back ON again until you are moving in the desired direction.
- Page 4 Vehicle Operations Locking your Inspection Vehicle into a single direction he two-position reversing unit controls the direction of the vehicle. When the reversing unit senses an interruption in track power, it will cycle into the next direction in the sequence. The sequence is forward, reverse, forward, reverse, etc.
- Page 5 Maintaining and servicing your Inspection Vehicle Lubricating your Inspection Vehicle elp your Lionel Inspection Vehicle lead a long and productive life on your railroad by main- taining it properly. We recommend that you purchase a Lionel Lubrication and Maintenance Kit (no. 6-62927), available from your Lionel dealer.
-
Page 6: Lubricating The Pullmor Motor Armature
Inspection Vehicle will require the occasional lubrication of its Pullmor motor armature. Refer to Figure 3 for the location of the armature. If you hear excess noise during operation, or if the Inspection Vehicle slows intermittently, you may need to oil the top armature bearing as illustrated in Figure 4. - Page 7 Inspection Vehicle Replacing your lamps our Lionel Inspection Vehicle is illuminated by two lamps. During the course of normal opera- tion, they may require replacement. Begin by removing the shell. Unscrew the body retaining screw that holds the body to the frame.
-
Page 8: Warranty Information
Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
