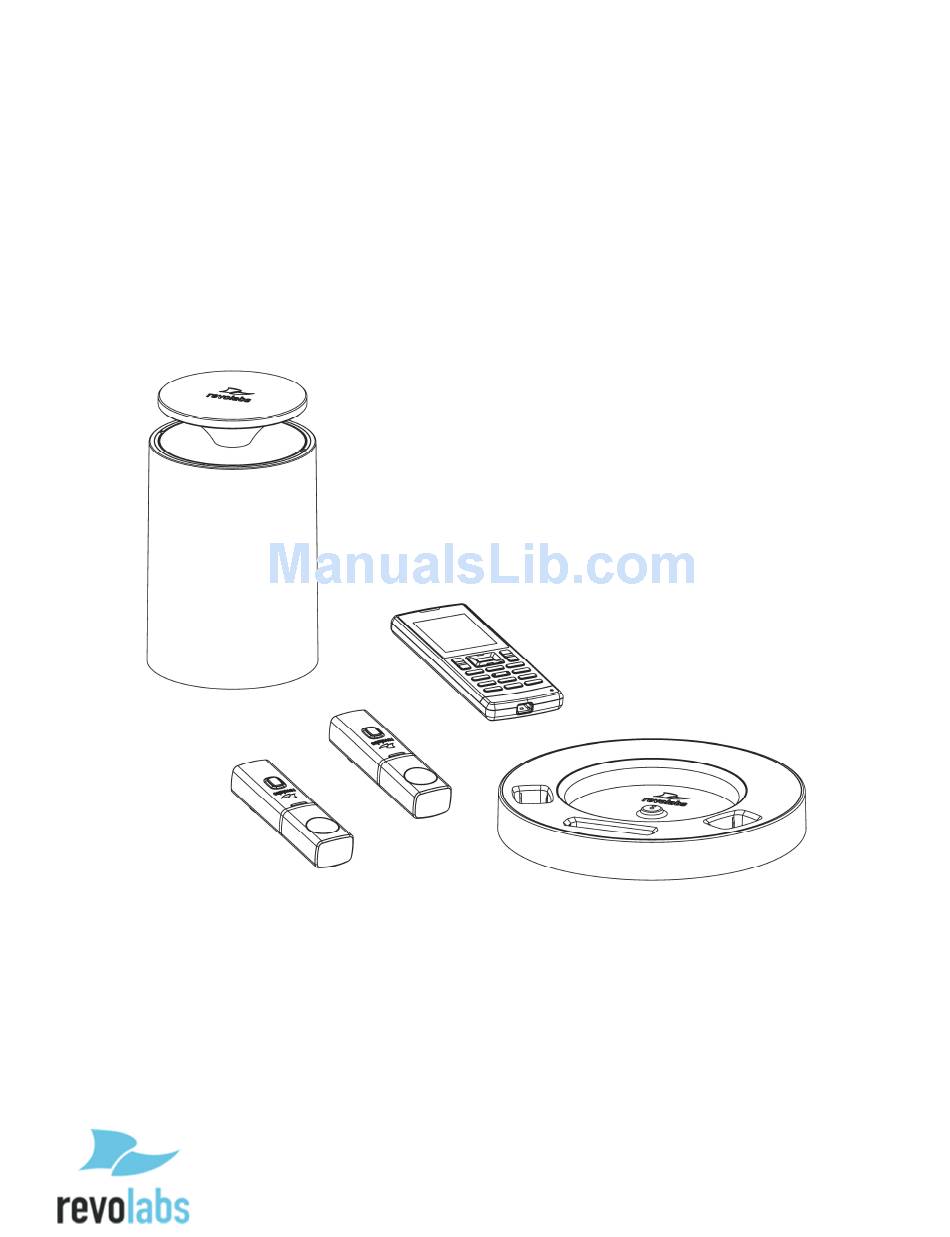

- Page 1 REVOLABS FLX2 Wireless Conference System for Voice over IP System Guide Models: 10-FLX2-200-VOIP 10-FLX2-020-VOIP 10-FLX2-002-VOIP 10-FLX2-101-VOIP 10-FLX2-200-DUAL-VOIP...
- Page 2 © 2011 - 2013 REVOLABS, INC. All rights reserved. No part of this document may be reproduced in any form or by any means without express written permission from Revolabs, Inc. Product specifications are subject to change without notice. Revolabs FLX2 System Guide – VOIP 10-FLX2SYSGUIDEVoIP-EN May 2014 (Rev 2.1.2)
-
Page 3: Safety Warnings
• Do not open the casings of any of the components of the FLX2 Conference Phone • Do not use any other accessories than Revolabs’ originals intended for use with this product. Use of non-original accessories may result in loss of performance, damage to the product, fire, electric shock or injury. - Page 4 Contents –”‘†—…–‹‘ ƒˆ‡–› ƒ”‹‰• ‘–‡–• ‡‡”ƒŽ ˆ‘”ƒ–‹‘ —‹… •‡–—’ ˆ‘” ‘ ‘ˆ‡”‡…‡ ƒŽŽ• ‡•…”‹’–‹‘ ’ƒ…‹‰ •–ƒŽŽ‹‰ ‘’‘‡–• ƒ•‡ –ƒ–‹‘ Šƒ”‰‡” ƒ•‡ ‹ƒŽ‡” ’‡ƒ‡” ‹…”‘’Š‘‡• ‘ …‘ˆ‹‰—”ƒ–‹‘ ƒƒ‰‹‰ ƒŽŽ ƒŽŽ‹‰ ‘ˆ‹‰—”ƒ–‹‘• ‘‡ …”‡‡ Žƒ…‹‰ ƒ ‘ ƒŽŽ •™‡”‹‰...
- Page 5 ‘‡ ƒŽŽ ‡–—’ ‡„ –‡”ˆƒ…‡ ƒ„Ž‹‰ ‡„ ……‡•• ‘‡…–‹‰ –‘ –Š‡ ‡„ –‡”ˆƒ…‡ ‘‡ ƒ‰‡ •‡” ‡––‹‰• †‹‹•–”ƒ–‘” ‡––‹‰• ‘™‡” ˆˆ –Š‡ ›•–‡ ‘’‘‡–• ƒ––‡”› š…Šƒ‰‡ ‹…”‘’Š‘‡• ‹ƒŽ‡” ’‡ƒ‡” ‘‡…–‹‰ —•‹‰ ”‘—„Ž‡•Š‘‘–‹‰ ƒ”‹‰ ‡••ƒ‰‡• ‹…”‘’Š‘‡...
-
Page 6: General Information

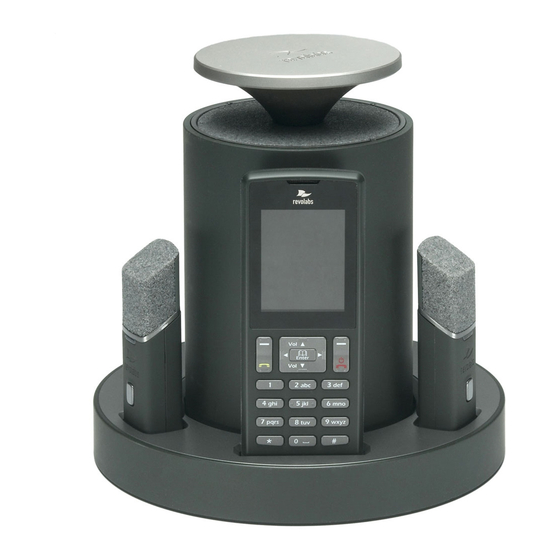

General Information The Revolabs FLX2 Conference Phone includes several components which, in the sum, make up the conferencing phone. The components are the Charger Base, Speaker, Microphones, and Dialer (handset). In addition, the Base Station receives the wireless signals from those components and... -
Page 7: Quick Setup For Voip Conference Calls
Quick setup for VoIP Conference Calls While all components delivered with the Revolabs FLX2 Conference Phone are partially charged, we recommend charging the Speaker, the Microphones, and the Dialer for at least 8 hours or overnight before starting to use the system. - Page 8 Phone configuration Before using the FLX for the first time, you will need to select the system language. The six options are English, Español (Spanish), Français (French), Deutsch (German), Italiano (Italian), and Português (Portuguese). Highlight the language of your choice, and press either “Enter”...
- Page 9 If you do not press ‘Save’, the changes will be lost when you leave that page. Restart the phone once you are finished with your changes. Note: For some of the common IP PBXs, Revolabs provides documents on required settings for the FLX and the IP PBX.
- Page 10 Conference phone mode. Description The Revolabs FLX2™ Wireless Conference Phone is a unique marriage of innovative technology and ergonomic design, allowing for an unparalleled experience when making telephone calls, video conference calls, or using it with your Bluetooth enabled cell phone or computer to make speaker phone calls.
-
Page 11: Installing Flx2 Components
The Base Station is the wireless receiver and sender of the audio stream from the Microphones and to the Speaker, as well as to the Dialer. It features the ability to connect two Revolabs FLX Microphones and one Speaker wirelessly. The Base Station is designed to optimize audio and video conferencing by providing consistent audio input from all participants. -
Page 12: Flx2 Charger Base
FLX2 Charger Base The FLX2 Charger Base, shown below, provides charging capabilities for all battery operated system components, including the Dialer, the Speaker, and the Microphones, by allowing them to charge in one simple and organized location. The FLX2 Charger Base is not required while in a conference call, however it can maintain the charge of the FLX Speaker and FLX Dialer while a call is in progress. -
Page 13: Flx Dialer
FLX Dialer The FLX Dialer equips the user with an intuitive and interactive tool for configuring and operating the FLX System. The Dialer is not only used to make and answer conference calls, but it is also used for configuring the system settings, having a call using the handset, and monitoring the system components. -
Page 14: Flx Speaker
FLX Speaker The FLX Speaker, shown below, is a wireless active omnidirectional speaker that has been designed and optimized specifically for use with the FLX Conferencing System. The Speaker is equipped with a pairing button on the bottom and 4 LED indicators on the top to display the activity of the Speaker and the mute status of the system. -
Page 15: Flx Microphones
FLX Microphones The FLX Microphones provide a sleek and unobtrusive form factor allowing for closer proximity to the participants and creating the best audio available to the far end. They are equipped with a button for pairing and muting, an LED indicator to display mute status and battery charge level, and an internal buzzer to warn if the Microphones have lost connection to the Base Station. -
Page 16: Initial Setup
Initial Setup After unpacking the FLX2 Conferencing System, there are a few initial setup tasks that must be performed before a call can take place or any system configuration can be changed. Connecting System Cables The FLX2 Charger Base has a power supply that needs to be connected, as shown below. - Page 17 will also have to enable the extension (user) you want to use with the FLX on your PBX. Please review your PBX documentation on information on how to do that. From the FLX Handset Depending on your IP PBX, different settings will be required for your FLX to work in your environment.
-
Page 18: Managing A Call
Note: For some of the common IP PBXs, Revolabs provides documents on required settings for the FLX. The documents can be found on the support website at http://www.revolabs.com/Support/Product-Line/FLX.aspx. Managing A Call The FLX2 Wireless Conferencing system is equipped with a VoIP interface that allows the system to make conference calls in a VoIP network. -
Page 19: Flx Home Screen
‘speaker mode’ only. A Bluetooth call is controlled by the connected Bluetooth device. A Bluetooth call can be made at the same time as a video call. NOTE: Revolabs FLX only supports the Hands Free Profile (HFP) for Bluetooth 2.0 or higher. Applications that try to use... - Page 20 or the speaker is switched off, and a yellow speaker means that the status of the speaker is unknown, e.g. it was taken out of range or connection was unexpectedly lost. A green microphone indicates that the microphone is available and unmuted, a red indicates it is available but muted, grey indicates it is switched off, and yellow means the current status is unknown, e.g.
-
Page 21: Placing A Voip Call
Placing a VoIP Call 1. From the home screen on the FLX Dialer enter the phone number to be called. 2. Once the number is entered completely, press the green ‘call’ button to initiate the phone call. 3. If any Microphones are out of the Charger Base and active, the call will default to ‘speaker mode’... -
Page 22: Declining An Incoming Voip Call
c. Press the mute/unmute button on a Microphone that is already out of the charger. NOTE: If there is either no Speaker active or no Microphones outside the Charger Base when the incoming call is answered from the FLX Dialer, the call will default to ‘handset mode’ and will remain in ‘handset mode’. -
Page 23: Ending A Telephone Call
Ending a Telephone call 1. A call can be ended in two fashions. a. Press the Red ‘End Call’ button on the FLX Dialer during a call. b. Place the Dialer in the charger. (‘Handset mode’ only) 2. When a call is ended the home screen is shown again. - Page 24 NOTE: An incoming Bluetooth call will display caller ID information as well if it is presented by the network. Muting a Call 1. In handset mode, the ‘Mute’ and ‘UnMute’ key will mute/unmute the FLX Dialer microphone, not the wireless Microphones. 2.
- Page 25 Conference Call There are two ways to start a conference call: 1. Press the ‘Enter’ key to access the Active Call Menu and select ‘Conference’. 2. Create the second call by selecting Dialer, Contacts, or Recent. 3. Initiate the second call. 4.
-
Page 26: Component Behavior In And Out Of The Charger Base
not be affected by this, you can select ‘Resume’ to continue that call. Component behavior in and out of the Charger Base Each system component will respond differently when placed in or out of the charger during an active telephone call. The following is a description of what can be expected. Dialer When the Dialer is placed into the Charger Base during a call in ‘speaker mode’, the call will not be affected and the Dialer will enter its charging mode. -
Page 27: Activating Bluetooth
Bluetooth The FLX2 System is equipped with a Bluetooth interface allowing a call to be placed through a cell phone, computer, or 3 party Bluetooth device. The FLX Microphones and Speaker then act as the Microphone and Speaker for that call. The FLX2 System only supports the Hands Free Profile for Bluetooth 2.0 or newer. - Page 28 Adding a Device 1. Go to the Menu Bluetooth. Select ‘Discovery Mode’ to activate Bluetooth and accept Bluetooth Request from other devices. 2. The FLX Dialer displays “This device is visible to other devices in range for 3 minutes” 3. The discovery mode screen will read “System in discoverable Mode, Start Scan From BT Device.
- Page 29 Viewing Device Details 1. Go to the Menu Bluetooth. Select ‘Device List’. 2. Select desired device and press the ‘Enter’ key or the ‘Select’ key to view device details 3. Device Information screen is shown with device name, address, BT version, and date/time the device was first connected.
-
Page 30: Making A Call Via Bluetooth
Setting Device Trust Level 1. Go to the Menu Bluetooth. Select ‘Device List’. 2. Select the desired device and press the ‘Enter’ key or the ‘Select’ key to view the device details. 3. Press the ‘Option’ key and then select ‘Options…’. 4. -
Page 31: Video Conference Collaboration
Video Conference Collaboration The FLX2 System is equipped with balanced analog audio input and output to be connected to 3 party video or PC conferencing system. This allows the FLX Microphones and Speaker to be used as Microphones and Speaker for video calls. It also provides Acoustic Echo Cancelation and Noise Control to the video call. -
Page 32: Mixing The Audio Signals
Mixing the audio signals As discussed earlier, Audio and Video, or Bluetooth and Video calls can be made simultaneously from a FLX system, requiring FLX to mix the audio of the different inputs to go to the different outputs. In the Audio Controls menu, available from the main menu and the Active Call Menu, the Audio Mixer menu is offered. -
Page 33: Flx2 System Configuration
FLX2 System Configuration There are many features to the FLX2 System that can be modified and configured using the FLX Dialer. The following is a list of those features and their options. Menu Hierarchy > > & Menu Navigation 1. Enter the menu by pressing the ‘Menu’ soft-key in the home screen. -
Page 34: Recent Calls
Recent Calls The Recent Calls call log stores the contact information from calls placed or received, allowing the user to review recent calls, redial a recent call, or store a recent call in the system directory. Recent Call Log 1. Access recent call log by browsing: Menu Recent Calls 2. - Page 35 View Recent Call Information 1. Access the recent call log by browsing: Menu Recent Calls or pressing the green ‘Call’ button while no call is in progress. 2. You can view a recent call one of two ways: a. In the recent call list, select the entry you want to view, and press the ‘View’...
- Page 36 Delete Call History 1. Access the recent call log by browsing: Menu Recent Calls or pressing the green ‘Call’ button while no call is in progress. 2. In the Recent Call menu, press ‘Enter’ to open the Options Menu. 3. In the Options Menu select ‘Delete Redundant’ to delete redundant call history information, or select ‘Delete All Calls’...
- Page 37 5. Once the editing is finished, the menu will return to the contact list. Edit a Contact 1. Browse to the Contacts menu: Menu Contacts, scroll to the desired contact, and select ‘View’ to access the contact. 2. The contact screen shows the current name and number.
- Page 38 Search for Contact 1. Browse to the Contacts menu: Menu Contacts. 2. Use the alphanumeric keys to apply a filter a. Once a key is pressed the title line will read ’Contact()’ and display the characters being typed. b. The search string can be up to 5 characters long.
-
Page 39: Audio Control
Set Speed Dial 1. Browse to the Contacts menu: Menu Contacts, scroll to the desired contact, and press the ‘View’ key to access the contact. 2. The contact view screen shows the current name and number. Pressing the ’Edit’ key will open the Edit Contact menu. - Page 40 Ringer 1. Browse to the Ringer menu: Menu Audio Controls Ringer. 2. Choose ‘Ringer Volume’ in the Ringer Settings menu to adjust the Ringer Volume. 3. Press the up and down buttons to increase and decrease the volume. 4. Choose ‘Ring Tone’ in the Ringer Settings menu to select a ring tone.
-
Page 41: Device Status
Mic Warning The Mic Warning setting allows enabling or disabling the voice prompt that is being played once a phone calls ends, reminding users to return the components – microphones, speaker, and dialer – to the charger tray. Highlight the option and press “Select”... - Page 42 Bluetooth The ‘Bluetooth’ menu has been explained earlier in this manual on page 27. Home When selecting the ‘Home’ menu item, the Dialer will go back to displaying the home screen. The same effect can be achieved by pressing the ‘Return’ key, or the red ‘End Call’...
- Page 43 Date/Time 1. Browse to the Date/Time menu: Menu Setup Set Date/Time. 2. To set the date or time, select either the ‘Set Date’, or ‘Set Time’ option, and press either ‘Enter’ or ‘Select’. 3. Edit time and date (month/day/year) using the numeric keys and the left and right buttons.
- Page 44 4. To set the time before the call is forwarded to the ‘No Answer’ number, select ‘No Answer Delay’ and set the time in seconds. Advanced Setup The following is a list of advanced configuration settings that are protected by a 4 digit password for administrator access only.
- Page 45 ‘Aux Audio’ is to control the AUX In and AUX Out connectors on the base. Aux In ON/OFF and Aux Out ON/OFF allow enabling / disabling the Aux connectors of the FLX phone. Aux In Level allows changing the level of the Aux In signal.
- Page 46 The Admin Settings menu allows changing settings that are related to general system settings. 1. Go to Menu Setup Advanced Setup Admin Settings Set System Name. 2. Change the current System Name to the new name, and press Enter. 1. Go to Menu Setup Advanced Setup Admin Settings...
-
Page 47: Device Pairing
KE K&& The Recent Calls option allows you to enable or disable logging of the recent calls. If you switch Recent Calls OFF the list of the recent calls will be erased and no future information on recent calls will be kept in the system. KE K&&... - Page 48 Speaker 1. To pair a Speaker first turn it off by pressing and holding the button on the bottom of the Speaker until you hear the Speaker shut-off or the LEDs turn off. 2. Ensure that the Base Station is plugged in and powered up. 3.
-
Page 49: Voip Settings
Green flash Pairing successful 1. Browse to the Network Settings menu: Menu Setup Advanced Setup Network Settings. a. You can change the DHCP configuration by turning it off and manually setting your IP address in the IP Settings. If DHCP is set to ON this takes precedent over static IP settings. - Page 50 iii. ‘Display Name’ is the string that is shown at the far side when you make outbound calls. If you do not provide a Display Name, the Username will be used. Please note that your IP PBX might override the Display name sent by the FLX and replace it with names configured in the PBX.
- Page 51 If your microphones and speakers do not automatically reconnect after changing the Region setting, you need to pair all of them again to your system. NOTE: We recommend changing the Region setting only after previous consultation with Revolabs Support.
-
Page 52: Enabling Web Access
Web Interface The FLX web interface provides access to advanced configuration settings, call statistics and system logs. Web access can be enabled or disabled from the FLX Handset, and the web interface is password protected using the same password that is required to access Administrator settings on the FLX Handset. - Page 53 Enter the administrator password and click Login. After logging in, the FLX Home page will appear. The FLX web interface is organized into three categories: Home, User and Administrator. Choose any one of these categories by clicking on the corresponding link in the upper right corner.
-
Page 54: User Settings
Home Page The Home page shows general information about the system as shown below. The Product field is a brief description of the FLX phone to which you are connected. The System IP Address shows the IP address of the device, whether it was configured by DHCP or with a static IP address. - Page 55 Audio The Audio page can be used to configure audio settings and audio mixer settings of your FLX. These settings are also available on the Handset. The figure below shows the Audio page, followed by a description of each setting. After changing any of the settings, click Save to save the settings.
- Page 56 sliding scale from -8 (favoring microphones) to +8 (favoring AUX IN). Aux Out Mix The Aux Out Mixer specifies the mix between the microphones and the phone audio received from the far end while in a call. It is a sliding scale from -8 (favoring microphones) to +8 (favoring phone).
- Page 57 Below is an illustration showing the Date/Time page settings followed by a table describing each field. Date/Time Network Time To enable the system to automatically detect the local date and time by using a public Date Time Server (DTS), set the Network Time to On.
-
Page 58: Administrator Settings
Hour Select the hour at which DST changes. For example, if DST changes at 2:00 a.m., choose 2. Restarting the Phone To restart the phone, choose Restart from the User menu or Administrator menu on the left of the page. On the Restart page click the Restart button as shown below. The page will indicate that the system is restarting. - Page 59 • > Choose an Administrator Menu option to show the corresponding page. Network Settings Use the Network Settings page to specify how IP addressing is to be determined for the phone connected to the IP network. You can use DHCP to automatically detect the phone’s IP address and network server settings, or you can manually specify a static IP address for the phone and the network server addresses provided by your network administrator.
- Page 60 Network Settings Connection Type Select the network connection type, either DHCP or Static IP. If you choose Static IP, specify the Static IP Address, Subnet Mask, and Default Gateway in the fields below. Static IP Settings Static IP Address The Static IP Address is the IP address that the network administrator has assigned to the phone.
- Page 61 SIP Registration The SIP Registration page is used to configure the SIP registrar and proxy settings and the SIP account and user settings for the phone. The minimum number of information required to register your phone is the Registrar, the Username and Password. If ID and Display Name are not set, FLX will use the user name for both of these parameters.
- Page 62 When this field is specified, the phone will register with the primary SIP registrar (The “Registrar” field) if it is accessible. If the primary SIP registrar becomes inaccessible via UDP or TCP, the phone will attempt to register with the backup registrar. If the phone successfully registered with backup registrar, it will switch to the backup registrar to perform outgoing calls and receive incoming calls.
- Page 63 SIP Settings Use the SIP Settings page to configure settings related to SIP sessions, as shown in the illustration below. After changing any of these settings, the phone must be restarted for the changes to take effect. SIP Settings Use SIP session Specify the preference for using SIP session keep-alive timers.
- Page 64 Session timers The expiration period is the interval at which the phone will expiration period consider the SIP session timed out if it does not receive a refresh message from the remote phone. It is measured in seconds; the default is 1800. At call negotiation, the nodes will negotiate the expiration period to be used for the session.
- Page 65 useful when messages might be too large to be carried on the available transport, for example when exceeding UDP’s Maximum Transmission Unit (MTU). Enable this option to encode SIP headers in their short forms to reduce size. By default, the option is not enabled and SIP headers in outgoing messages will be encoded in their full names.
- Page 66 Transport Use the web interface’s Transport page to manage transport and Network Address Translation (NAT) settings, and to enable or disable Quality of Service (QoS). The illustration below shows the Transport page. After changing any of these settings, the phone must be restarted for the changes to take effect.
- Page 67 Transport Settings Use SRTP Use this setting to control Secure Real-time Transport Protocol (SRTP) usage. These are the available options: Disabled – Do not use SRTP; always use RTP. This is the default setting. Optional – Use the optional disposition for SRTP in SDP. If the remote end supports SRTP, then use SRTP;...
- Page 68 remote nodes), FLX sends STUN binding requests as part of the media connectivity tests. When a candidate is nominated for use, a STUN binding request is sent with a flag indicating that the candidate pair is nominated. There are two nomination methods that can be used: Regular –...
- Page 69 Differentiated Services Code Point (DSCP) in the IP header is set to 24 (0x18). For layer 2, IEEE 802.1p tagging is supported. This option is unchecked by default. Media Settings Use the Media page to specify the preferred audio codecs and other audio stream processing preferences as shown in the illustration below.
- Page 70 of the codecs supported by FLX, the default ptime value is 20 ms/packet. Disable silence Select this option to disable silence detector/voice activity detector detector/voice (VAD). VAD is a technique used in audio processing to detect the activity detector presence or absence of human speech. Disabling VAD is sometimes useful to work around NAT problems.
- Page 71 Advanced Audio Settings Use the Advanced Audio Settings page to specify microphone mute behavior, AUX audio in and out settings, and Acoustic Echo Cancellation (AEC) settings. The illustration below shows this page. The settings and options on this page reflect the same settings as can be done on the handset, allowing remotely setting and managing the phone behavior.
- Page 72 Aux Out Mic/Line Use Aux Out Mic/Line to set the level of the Aux Out connectors to either Mic level or Line level. RF Setting Use the RF Setting page to set the Radio Frequency (RF) signal strength of the base station and microphones.
- Page 73 Please change this setting from the current region to another region only if you move the unit to that different country/region, or if advised by Revolabs support to do Importing and Exporting Configuration Settings Through the web interface you can import and export FLX configuration settings. These features are particularly useful if you are installing several FLX phones and want them all to use the same base set of configuration values.
- Page 74 • SIP ID • Display Name • Username • Password Below is an illustration of the Import/Export page. To export FLX configuration settings, click the Export button. A File Download window will appear prompting you to open or save the file as shown below. Click the “Save” button to save the file to the desired location.
- Page 75 Selecting this option will cause the system to log more of the internal operations and network traffic useful for isolating problems. However, the additional logging can degrade performance. NOTE: Use this setting only when instructed by revolabs support, and uncheck this option after you have retrieved the system log package.
-
Page 76: Power On/Off The System Components
#0 G722 @16KHz, sendrecv, peer=10.134.122.95:13400 RX pt=9, stat last update: 00h:00m:05.390s ago total 1.1Kpkt 179.3KB (224.2KB +IP hdr) @avg=57.1Kbps/71.4Kbps pkt loss=0 (0.0%), discrd=0 (0.0%), dup=0 (0.0%), reord=0 (0.0%) (msec) last loss period: 0.000 0.000 0.000 0.000 0.000 jitter 0.000 2.004 14.625 2.625 2.186... -
Page 77: Battery Exchange
Battery Exchange The rechargeable batteries in the different FLX components can all be exchanged. Please note that only Revolabs approved batteries should be used for the replacement. The following sections explain how to change the batteries in the different components. - Page 78 Microphones To exchange a microphone battery push the bottom part of the back cover slightly down towards the charger port and then lift it as shown in the illustration below. Carefully take the battery out of the plastic cover. Put the new battery into the back cover as shown in the figure below.
-
Page 79: Connecting Using Aux In / Aux Out
Speaker To change the rechargeable battery in the FLX speaker you will need to use a screwdriver to loosen the screw on the bottom of the speaker. Once the screw is loose, the bottom door of the speaker will open, revealing the rechargeable battery pack. - Page 80 &>y Khd &>y /E > >' > DhdK Dh > DhdK D^ > DhdK Dh > DhdK D^ > DhdK Dh > DhdK D^ > DhdK Dh > DhdK D^ > DhdK Dh > DhdK D^ > DhdKZ > DhdKZ >...
-
Page 81: Troubleshooting
> DhdKZ > DhdKZ > Z To connect a FLX to a computer we recommend using Revolabs’ USB connector kit, 01-USBAUD35-KIT. This kit includes a USB audio dongle and two cables to connect to the FLX. Troubleshooting Warning Messages Speaker / Microphone Link Lost If a FLX Microphone or FLX Speaker loses connection to the FLX2 Base Station, the LED indicator will begin flashing a sequence of red –... -
Page 82: Microphone, Speaker, Or Dialer Not Connecting To Base Station
– this just shows that a fault has happened in the past and can be ignored. If the components still do not connect to the base please contact Revolabs Support. 3. Are the Dialer, Microphone, and Speaker out of reach of the Base Station? Please bring the components closer to the Base Station to see whether this resolves the issue. -
Page 83: Led Indicators
LED Indicators Device LED Indicator Status Microphone in Charger Base Steady Red Charging Steady Green Fully charged Active phone call, both microphones in Charger Single red flash Base, microphones muted via Master Mute or All Mic Mute is ON Active phone call, microphone(s) in Charger Base, Double red flash microphone is muted Active phone call, microphone in Charger Base is... - Page 84 Device LED Indicator Status o Connected, battery charging, phone call in progress, Master Mute or “All Mic Mute” is ON, all Microphones are muted Steady Red o Connected, battery charging, no phone call in progress, Microphone(s) outside of Charger Base, “All Mic Mute” is ON, all Microphones are muted o Connected, battery fully charged, no phone call in progress, Microphones in Charger Base...
-
Page 85: Reset To Factory Defaults
Technical Specifications Models The Revolabs FLX2 VoIP System is available with a variety of configurations to provide the best audio capture in the industry. The following is a list of the available models. All of these models are SIP enabled and require an IP connection. -
Page 86: Base Station
Wireless Technology DECT DECT 6.0 for US, ETSI ETS 300 175 for other countries Bluetooth BT 2.1 + EDR Wireless Range DECT 65 feet, 20 meters Bluetooth Class II, 33 feet, 10 meters Security (DECT / Bluetooth) DECT: 128 bit encryption Noise Cancelation Noise cancellation on the Microphone Echo Cancelation... - Page 87 Dialer Dimensions Dialer 125 x 48 x 11mm Weight 67.5g Microphone and Speaker 300 – 3300Hz bandwidth Battery life 8 hours Charge time 3 hours Display High resolution color LCD display Caller ID Support for multiple Caller ID standards Phonebook Up to 100 entries Keypad 12 key telephone keypad...
-
Page 88: Regulatory Information
Users are not permitted to make changes or modify the equipment in any way. Changes or modifications not expressly approved by Revolabs, Inc. could void your authority to operate this equipment under Federal Communications Commission’s rules. -
Page 89: Industry Canada Notice To Users
Industry Canada Notice to Users This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device Model Number Industry Canada Identification... - Page 90 Notice to Customers in Australia Do not use the areas where there are explosive hazards • Do not use in environments where there is a danger of ignition of flammable gasses. • Restricted use with certain medical devices Hearing Aids Some devices may interfere with some hearing aids.
-
Page 91: Notice To European Customers
03-HDTBLMICEU-DR-11 HD Microphone, Tabletop, Directional Any unauthorized modification of the products voids this Declaration. For a copy of the original signed declaration of conformity, please contact Revolabs at the above address. WEEE Notification: The Waste Electrical and Electronic Equipment (WEEE) directive (2012/19/EU) is intended to promote recycling of electrical and electronic equipment and their components at end of life. -
Page 92: Limited Warranty And Limitation Of Liability
Limited Warranty and Limitation of Liability Limited Warranty Revolabs warrants to the end user (“Customer”) Product returned to Revolabs must have a valid RMA # that this product will be free from significant defects in clearly marked on the outside of the shipping container... - Page 93 OF ITS PRODUCTS. Limitation of Liability TO THE FULL EXTENT ALLOWED BY LAW, REVOLABS EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE...
-
Page 94: Gpl Licensed Software
General Public License version 2 (GPLv2) License Agreements included as part of this documentation: uClinux 2.6.26 BusyBox 1.2.2 Source code for this software can be obtained by contacting Revolabs at support@revolabs.com. GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. - Page 95 Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.
- Page 96 itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works.
- Page 97 If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
- Page 98 consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
-
Page 99: Technical Support
ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Technical Support If you are experiencing technical problems or if you have questions about the operation, configuration or troubleshooting of any Revolabs product, please email FLXsupport@revolabs.com or call +1-800-326-1088...
